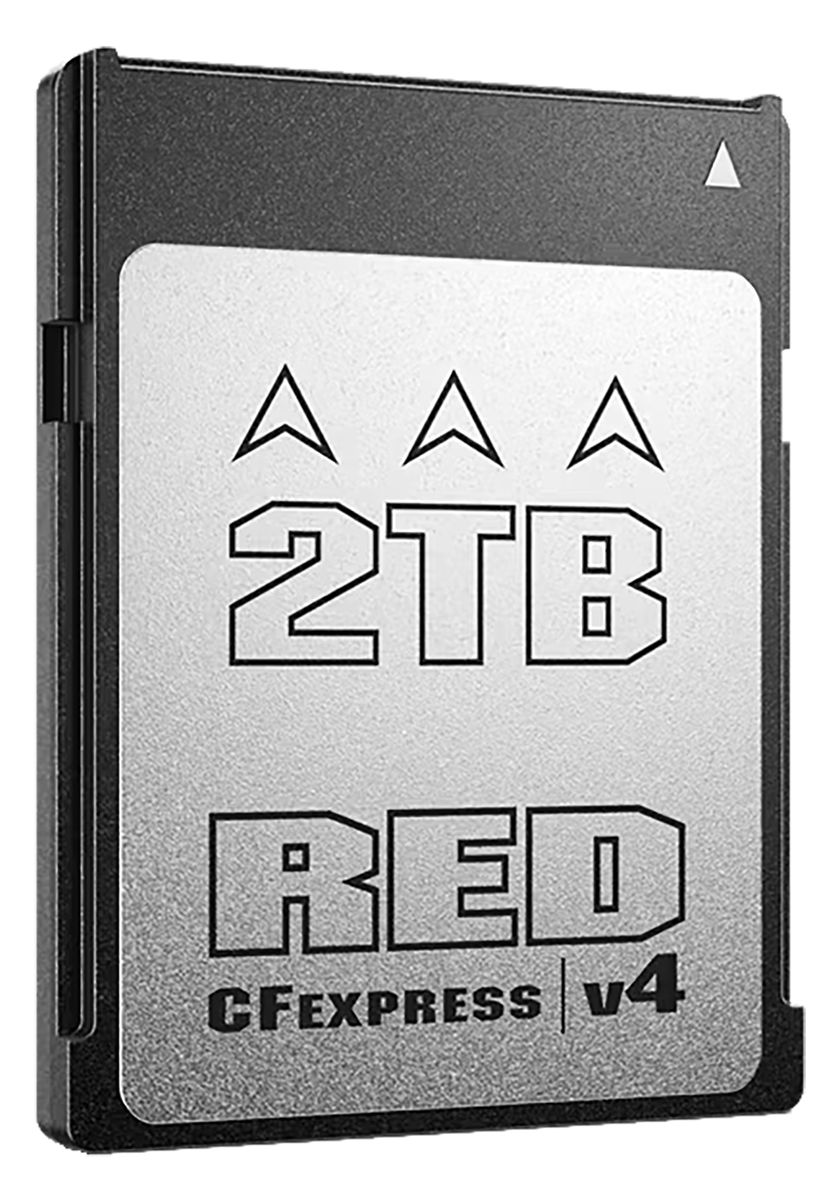

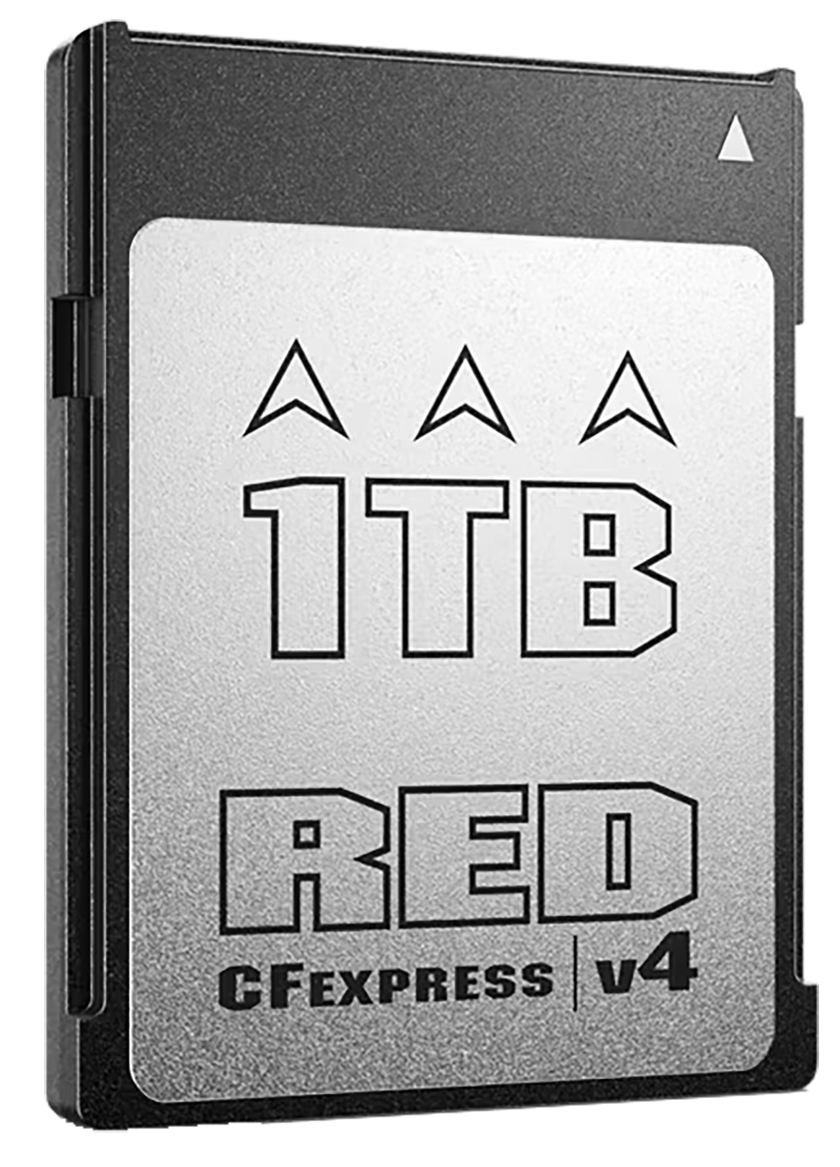

RED Pro CFexpress v4 Type B Media
RED® has created the RED PRO CFexpress v4, Type B, 1 TB and 2 TB cards in collaboration with Angelbird Technologies to specifically meet the high-performance needs of the RED V-RAPTOR® and KOMODO-X® systems. These cards are the official, RED-certified, media cards approved for these cameras.
This durable media is CFexpress™ v4 Type B compliant and supports precision recording of high bit-rate files with industrial-grade performance and durability extended through the capacity of the card. CFexpress™ v4 Type B provides increased read and write speeds, resulting in faster offload times when paired with the RED® PRO CFexpress v4 Type B Card Reader.
All RED certified, media cards have undergone extensive and rigorous testing to ensure optimized performance and reliability. RED highly recommends using RED PRO CFexpress v4 Type B media when possible. Otherwise, you can consult the RED APPROVED accessories list at https://www.red.com/third-party-accessories to find alternative options.
RED PRO CFexpress v4 Type B Cards are eligible for an extended 3 year limited warranty provided by Angelbird in Austria. Angelbird’s warranty includes individualized customer service, technical support and free data recovery service on hard- and software level. The data recovery service covers media that has encountered physical damage and/or software issues such as data or file corruption. For media issues or troubleshooting, please visit www.angelbird.com/support. Visit their website at www.angelbird.com/warranty-activation and activate your product warranty within 30 days of purchase.
NOTE: RED PRO CFexpress v4 Type B media is supported in firmware 2.0.4 beta or later.
|
Item |
|
Details |
|---|---|---|
|
Capacity - 1 TB |
|
1 TB |
|
Capacity - 2 TB |
|
2 TB |
|
Operating temperature |
|
14° F to 158° F (-10° C to 70° C) |
|
Operating humidity |
|
5% to 95%, non-condensing |
|
Storage temperature |
|
-4° F to 185° F (-20° C to 85° C) |
|
Shock resistance (operating) |
|
50 g |
|
Vibration resistance (operating) |
|
15 g at 10 Hz to 2000 Hz |
|
Weight |
|
Approximately 0.25 oz (7.1 g) |
|
Dimensions |
|
Height: 1.52 in. (38.5 mm) |
|
|
Width: 1.17 in. (29.6 mm) |
|
|
|
Depth: 0.15 in. (3.8 mm) |

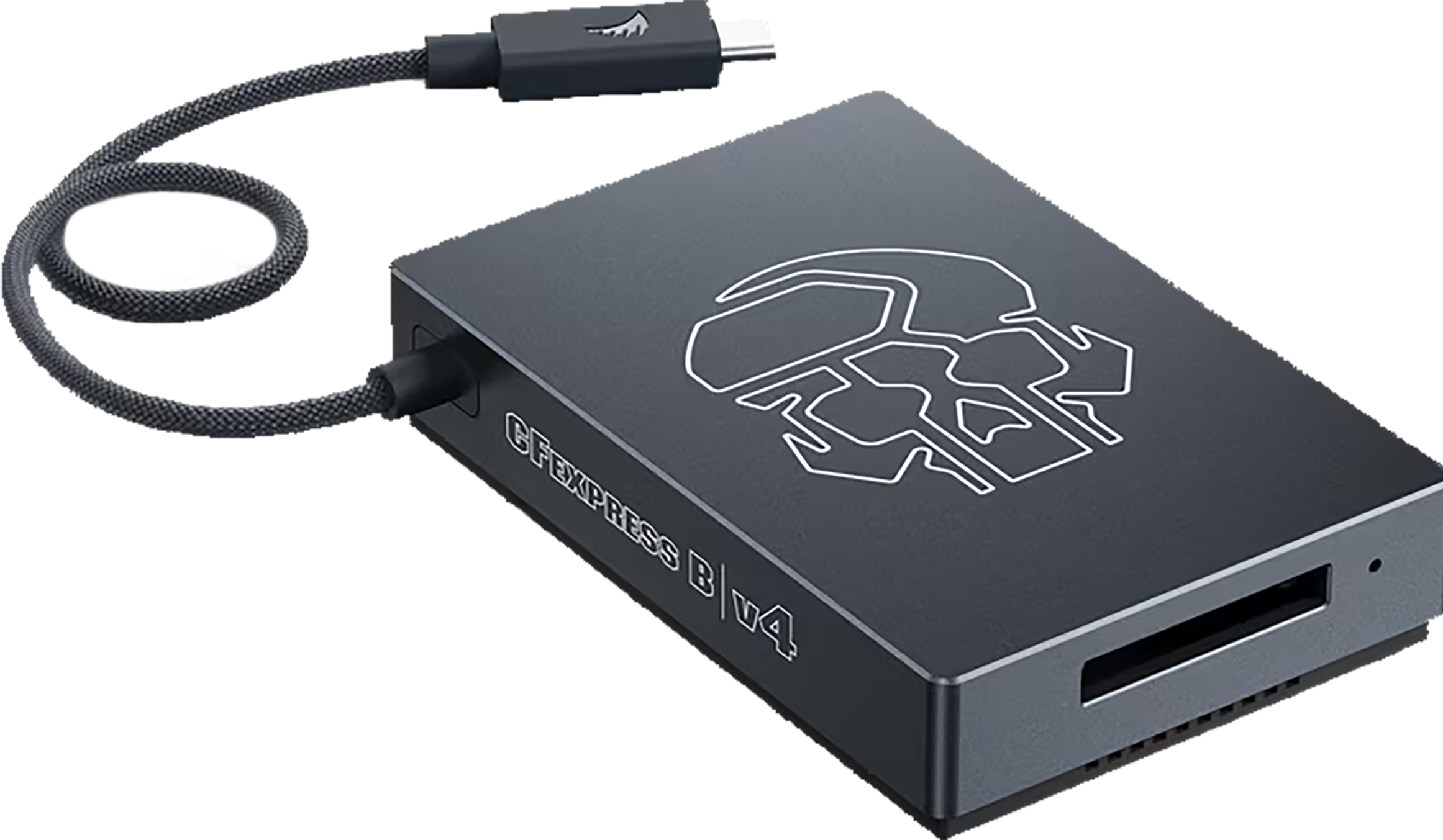

RED® CFexpress Type B V4 Reader
RED® has designed the RED® PRO CFexpress v4 Type B Card Reader exclusively for high-speed (up to 40 Gb/s) and accurate data reading of RED® PRO CFexpress v4 Type B 1TB, and 2TB media cards.
Connect the RED PRO CFexpress v4 Type B Card Reader to your device’s USB4 port for the fastest throughput of CFexpress v4 media data (40 Gb/s).
NOTE: The reader's offload performance can vary depending on temperature, the bus speed of the connected port, and the write speed of the destination drive.
RED® has designed the RED® PRO CFexpress v4 Type B Card Reader exclusively for high-speed (up to 40 Gb/s) and accurate data reading of RED® PRO CFexpress v4 Type B 1TB, and 2TB media cards.
Connect the RED PRO CFexpress v4 Type B Card Reader to your device’s USB4 port for the fastest throughput of CFexpress v4 media data (40 Gb/s).
NOTE: The reader's offload performance can vary depending on temperature, the bus speed of the connected port, and the write speed of the destination drive.
|
Item |
|
Details |
|---|---|---|
|
Media read |
|
CFexpress v4 Type B |
|
Interface |
|
USB-C 4.0 Gen 3x2 cable to CFexpress v4 Type B |
|
Power |
|
USB bus power |
|
Cable |
|
USB-C 4.0 Gen 3x2 cable |
|
Weight |
|
Approximately 6.17 oz (175 g) |
|
Dimensions |
|
Length: 3.84 in. (97.5 mm) |
|
|
Width: 2.56 in. (65 mm) |
|
|
|
Height: 0.85 in. (21.5 mm) |
