Shutter

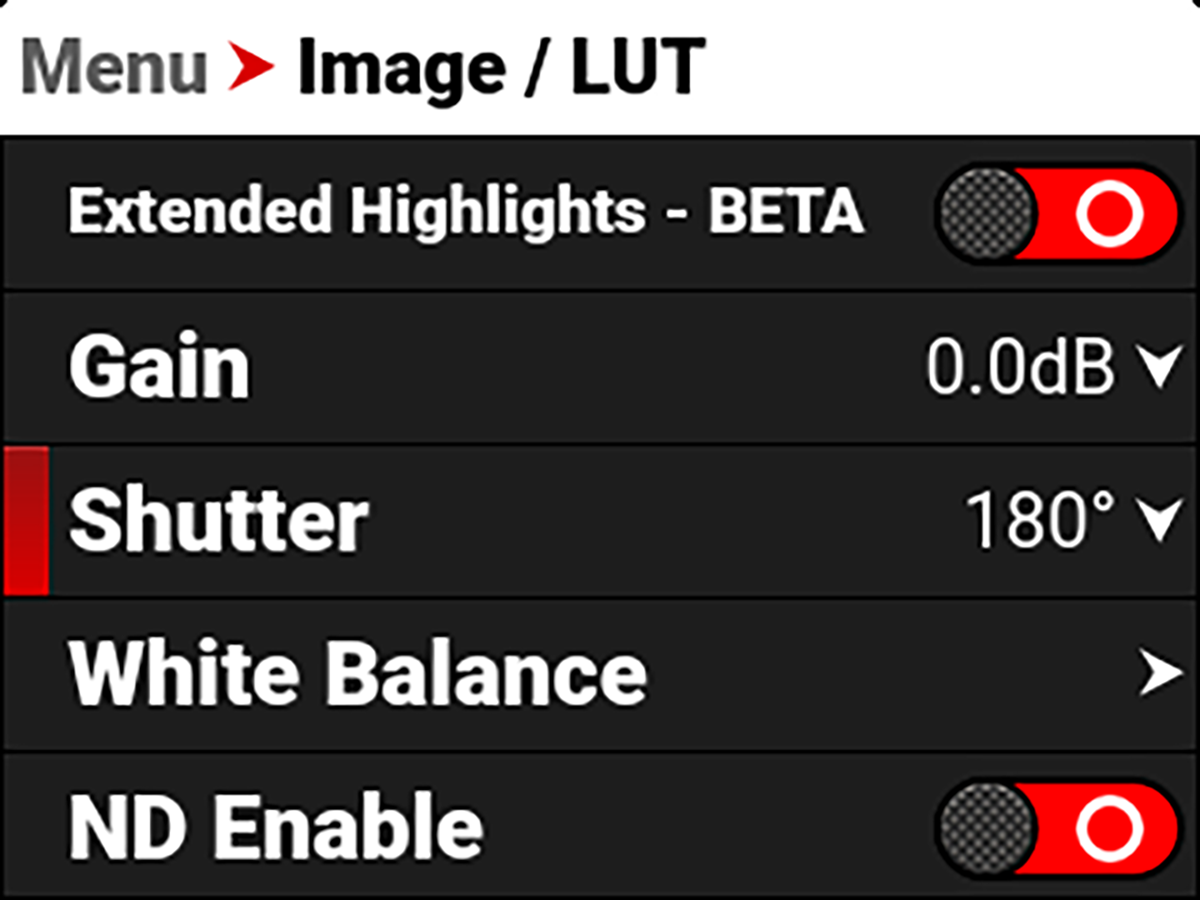

Use Shutter to select the exposure time (shutter speed / shutter angle). The camera allows you to change the shutter settings while recording.
Decreasing shutter speed increases the amount of time that light hits the sensor, which increases exposure and motion blur of moving objects. Increasing shutter speed decreases the amount of time that light hits the sensor, which decreases exposure and motion blur of moving objects.
You can switch between angle and time by using the Status Settings or by pressing and holding the button above SHUTTER on the Home Page (refer to Home Page).
|

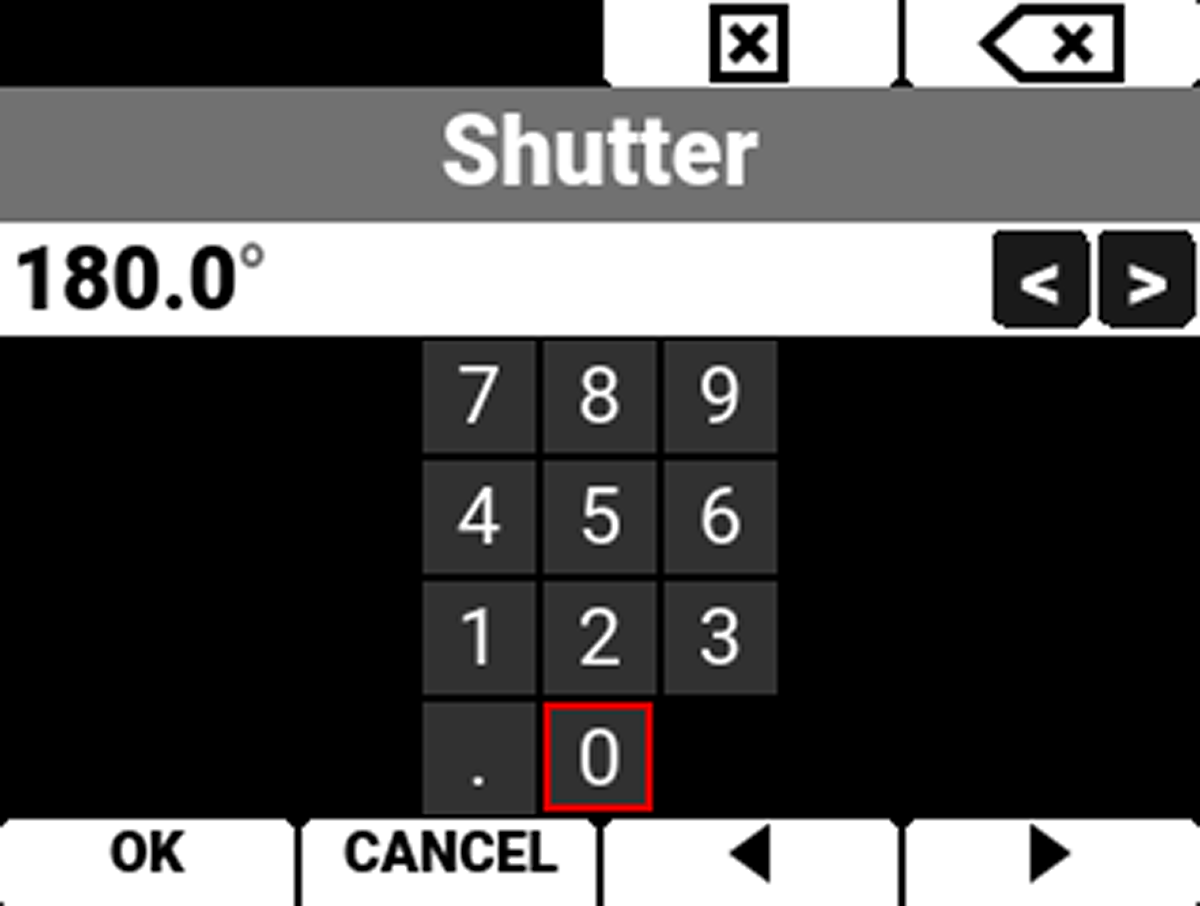

You can press the button under EDIT to change the Shutter menu values manually. |
|

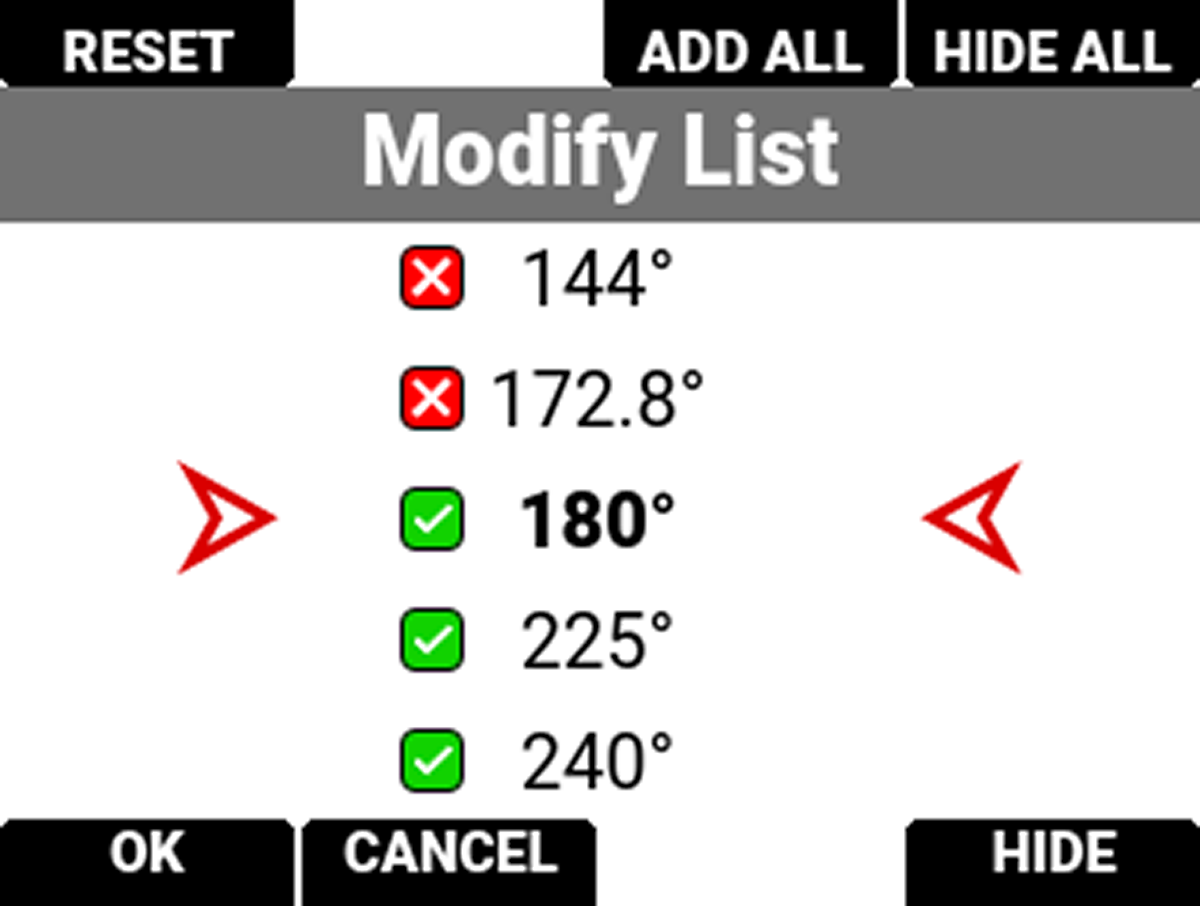

You can press the button under LIST to choose which values you want to display on the menu list. |
|
|
|
|

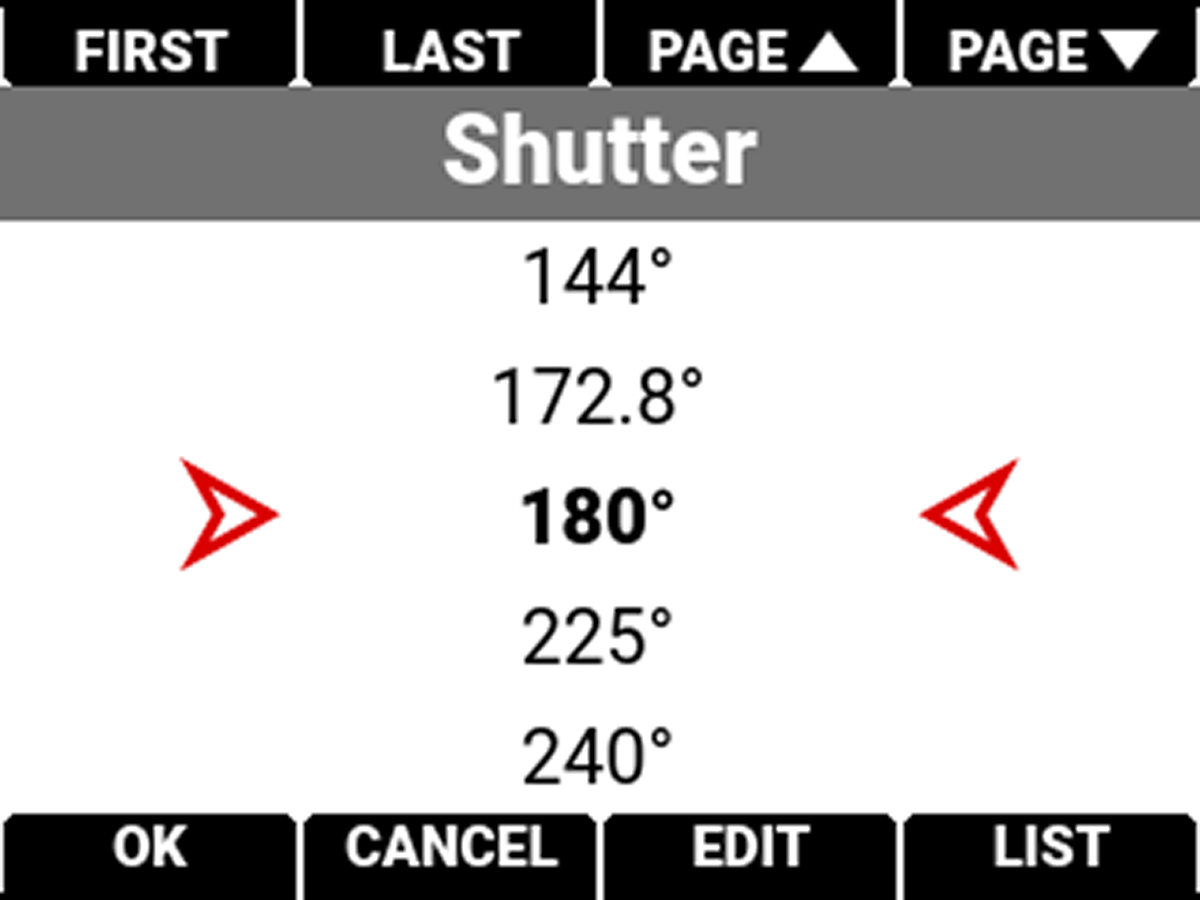

Shutter Angle
Enter the exposure value as a shutter angle (xx°). The shutter angle range is 1° to 360°. The default shutter angle is 180°. Click Edit to enter an exact shutter angle or shutter speed.
Exposure Conversions
The table below lists common shutter angle and shutter speed equivalents. The calculations in the table use a recording frame rate of 23.98 fps.
|
Shutter Angle (°) |
Shutter Speed (1/xx sec) |
|
Shutter Angle (°) |
Shutter Speed (1/xx sec) |
|---|---|---|---|---|
|
360˚ |
1/23.98 |
|
105˚ |
1/82.20 |
|
288˚ |
1/29.97 |
|
90˚ |
1/95.90 |
|
270˚ |
1/31.97 |
|
72˚ |
1/119.88 |
|
240˚ |
1/35.96 |
|
45˚ |
1/191.81 |
|
225˚ |
1/38.36 |
|
22.5˚ |
1/383.62 |
|
180˚ |
1/47.95 |
|
11.2˚ |
1/770.66 |
|
172.8˚ |
1/49.95 |
|
8.6˚ |
1/1003.65 |
|
144˚ |
1/59.94 |
|
4˚ |
1/2157.84 |
|
135˚ |
1/63.95 |
|
1˚ |
1/8000 (max) |
|
120˚ |
1/71.93 |
|
|
|

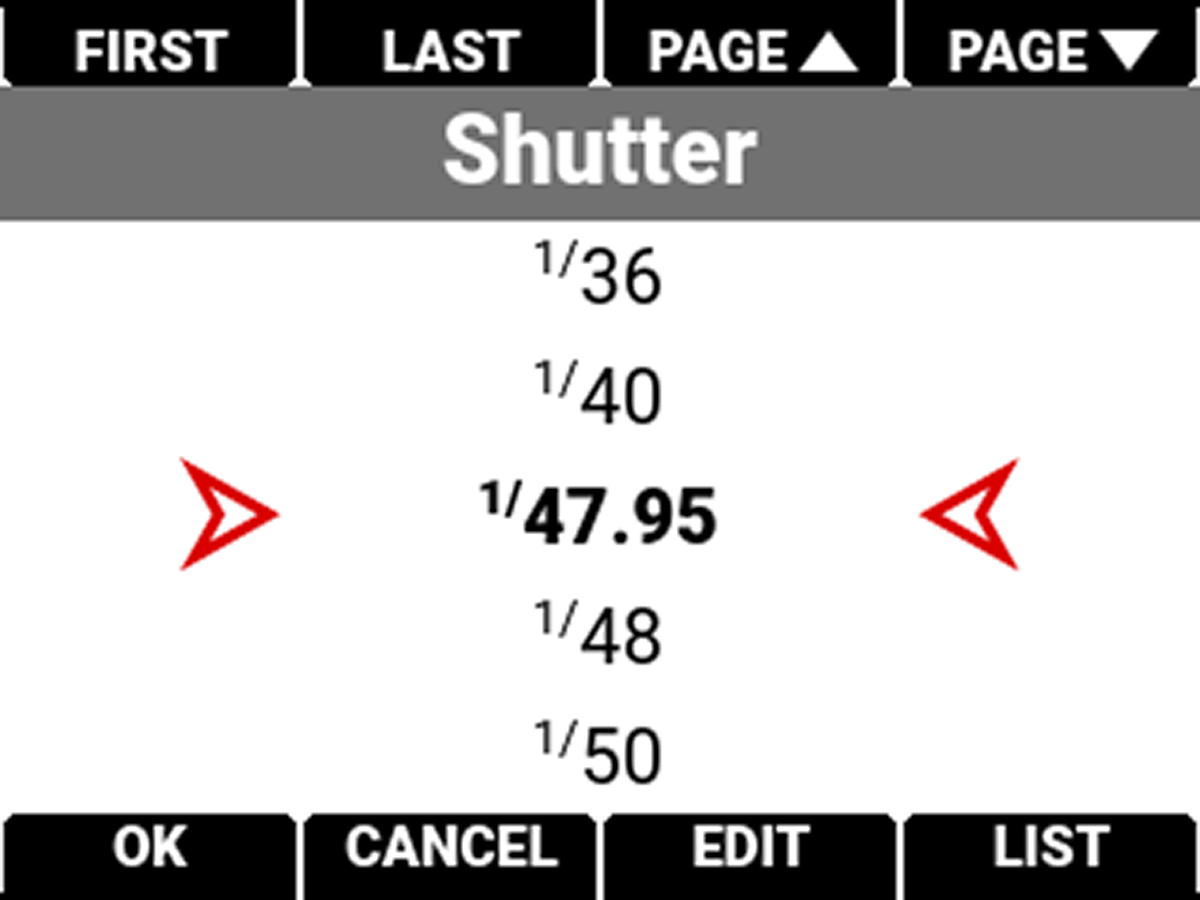

Shutter Speed
Enter the exposure value as a shutter speed (1/xx sec).
The slowest available shutter speed in the camera is
Convert Shutter Speed to Shutter Angle
Shutter Angle = (Shutter Speed x Frame Rate x 360)
Example: (1/47.95 x 23.98 x 360) = 180
Convert Shutter Angle to Shutter Speed
Shutter Speed = 1/(Frame Rate x 360/Angle)
Example: 1/(23.98 x 360/180) = 1/47.95
