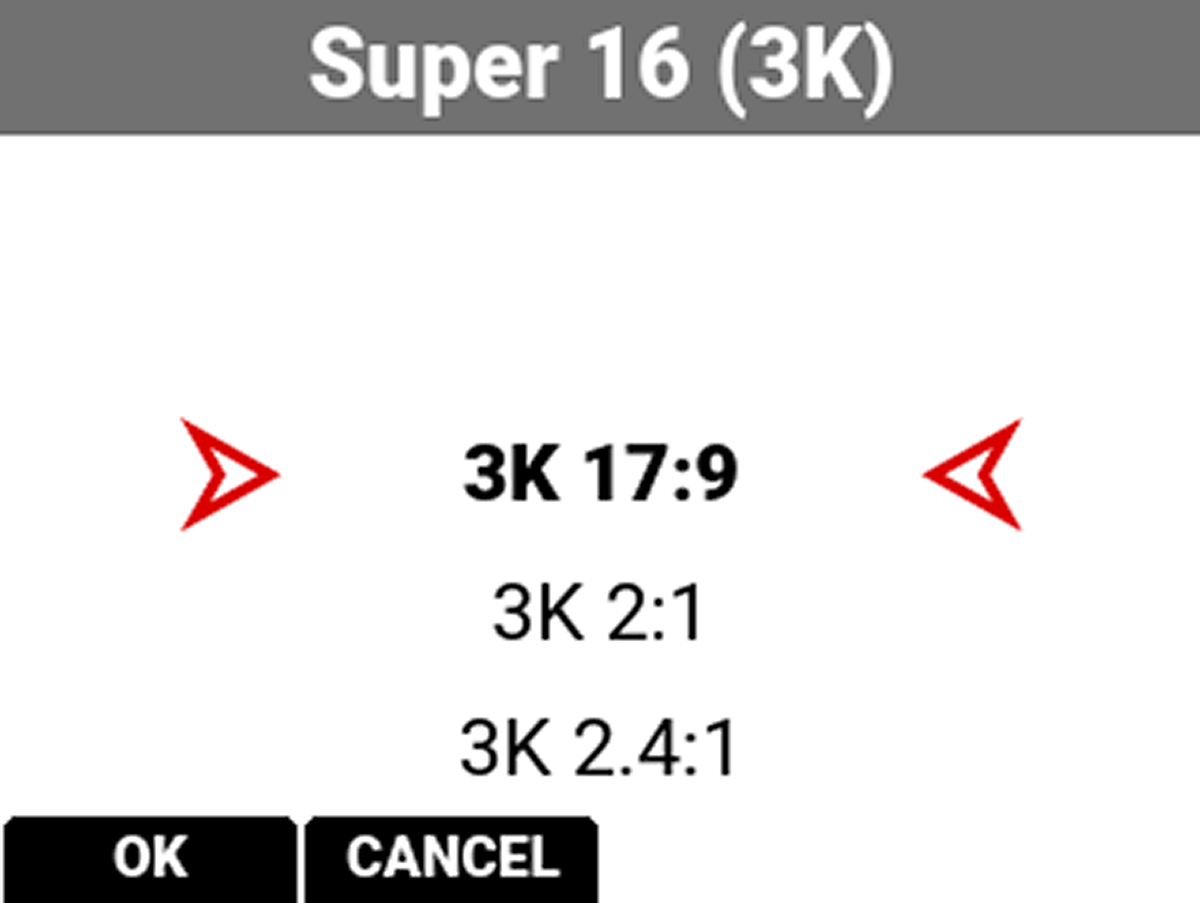

Super 16 (3K)

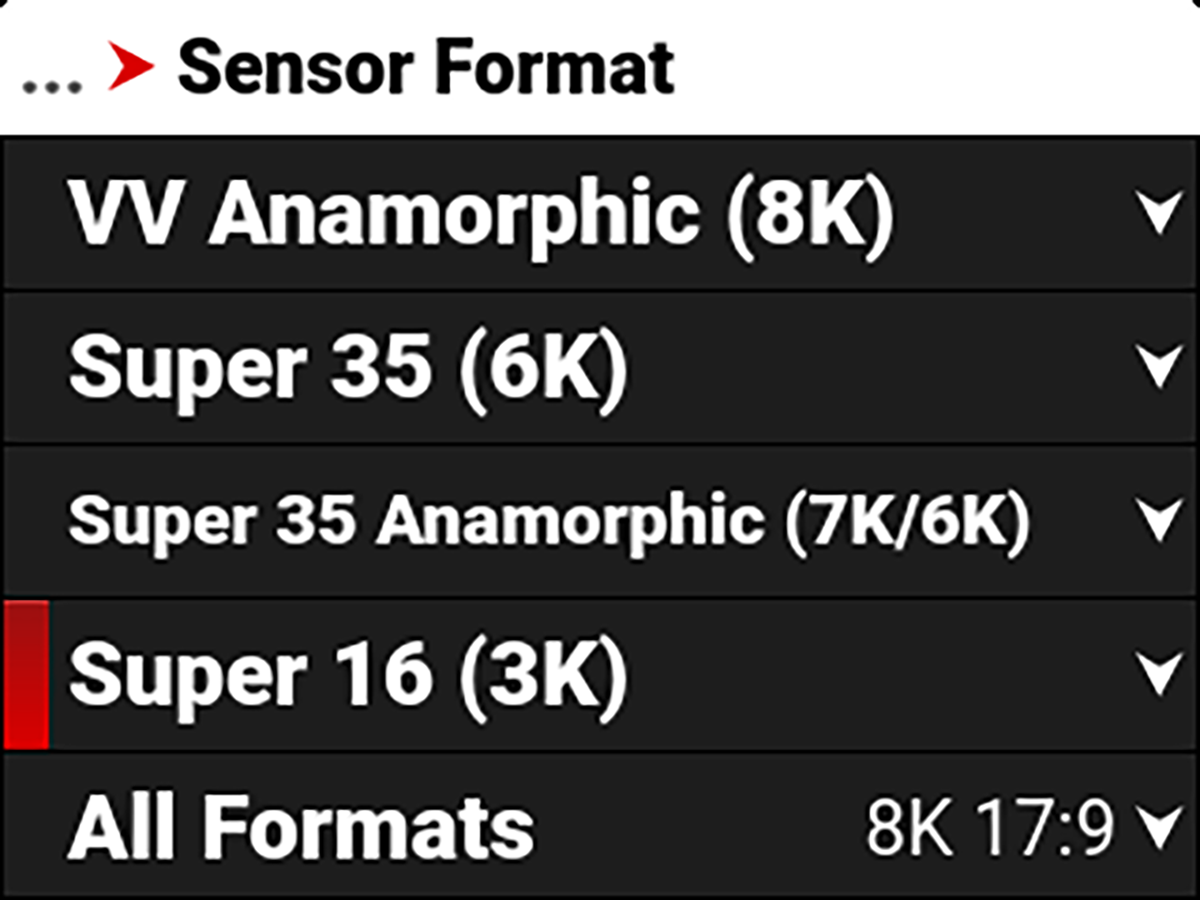

Use the Super 16 (3K) sensor format setting to designate how much of the sensor the camera should use to capture images.
The available aspect ratios are determined by the selected resolution.
When you lower the resolution on the camera, only a portion of the sensor is used. The camera does not downscale from the 3K 17:9 sensor format when recording RAW.
Super 16 (3K) Sensor Format Specifications
This table contains the dimensions of the sensor area in pixels and in millimeters used by each Super 16 (3K) sensor format. These dimensions are close approximations.
The default sensor format is 3K 17:9.
|
Format |
|
Dimension (Pixels) |
|
Dimensions (MM) |
|||
|---|---|---|---|---|---|---|---|
|
|
|
Width |
Height |
|
Width |
Height |
Diagonal |
|
3K 17:9 |
|
3072 |
1620 |
|
15.36 |
8.10 |
17.36 |
|
3K 2:1 |
|
3072 |
1536 |
|
15.36 |
7.68 |
17.17 |
|
3K 2.4:1 |
|
3072 |
1296 |
|
15.36 |
6.48 |
16.67 |
|
3K 16:9 |
|
2880 |
1620 |
|
14.40 |
8.10 |
16.52 |
|
3K 1:1 |
|
1620 |
1620 |
|
8.10 |
8.10 |
11.46 |
