VV (8K)

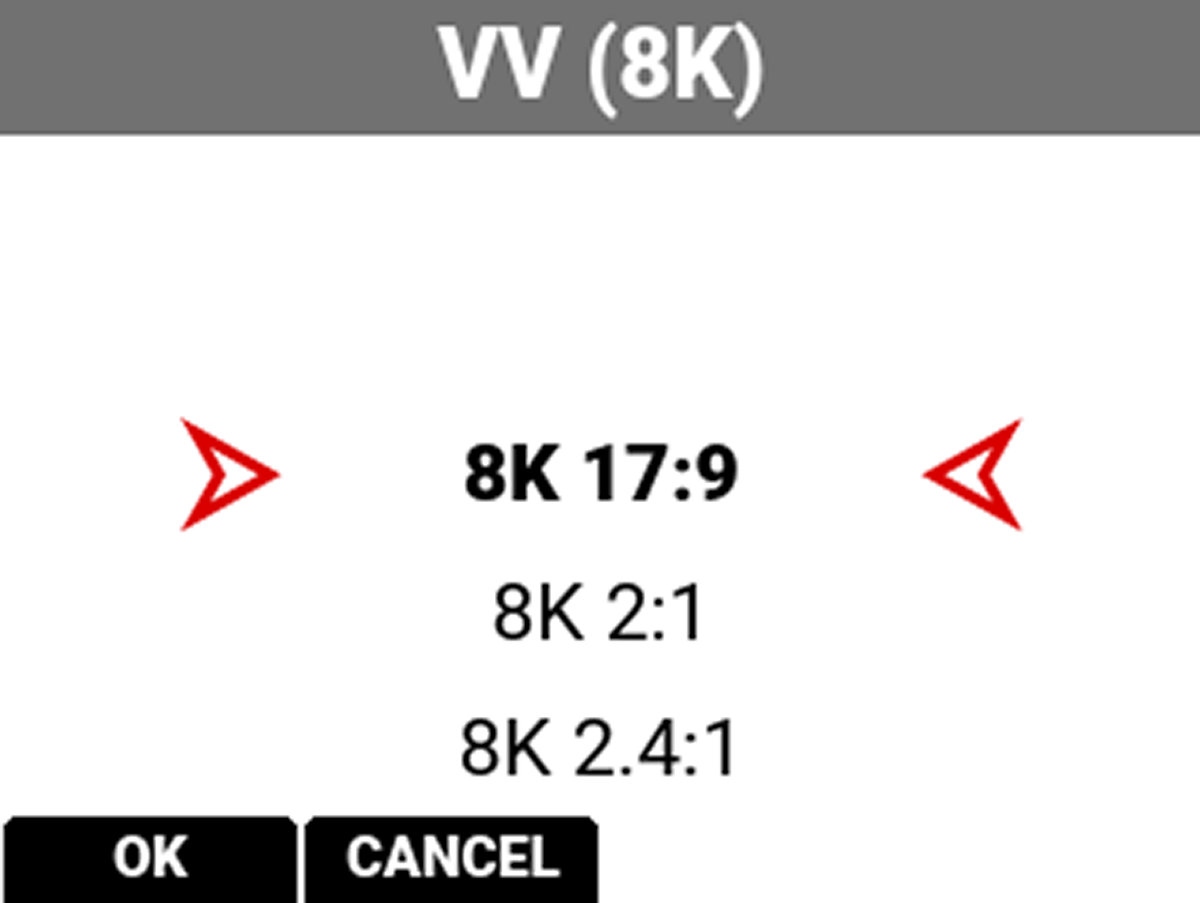

Use the VV (8K) sensor format setting to designate how much of the sensor the camera should use to capture images.
The available aspect ratios are determined by the selected resolution.
VV (8K) Sensor Format Specifications
This table contains the dimensions of the sensor area in pixels and in millimeters used by each VV (8K) sensor format. These dimensions are close approximations.
The default sensor format is 8K 17:9.
|
Format |
|
Dimension (Pixels) |
|
Dimensions (MM) |
|||
|---|---|---|---|---|---|---|---|
|
|
|
Width |
Height |
|
Width |
Height |
Diagonal |
|
8K 17:9 |
|
8192 |
4320 |
|
40.96 |
21.60 |
46.31 |
|
8K 2:1 |
|
8192 |
4096 |
|
40.96 |
20.48 |
45.79 |
|
8K 2.4:1 |
|
8192 |
3456 |
|
40.96 |
17.28 |
44.46 |
|
8K 16:9 |
|
7680 |
4320 |
|
38.40 |
21.60 |
44.06 |
|
8K 1:1 |
|
4320 |
4320 |
|
21.60 |
21.60 |
30.55 |
