USB-C Ethernet Configuration

The RED V-RAPTOR XL [X] 8K offers a USB-C 3.0 protocol connection that provides communication support for Ethernet networks.

Connecting to An Ethernet Network

You must use a USB-C to Ethernet adapter to connect the camera to an Ethernet network.

  1. Connect the camera to the Ethernet network using the USB-C to Ethernet adapter.

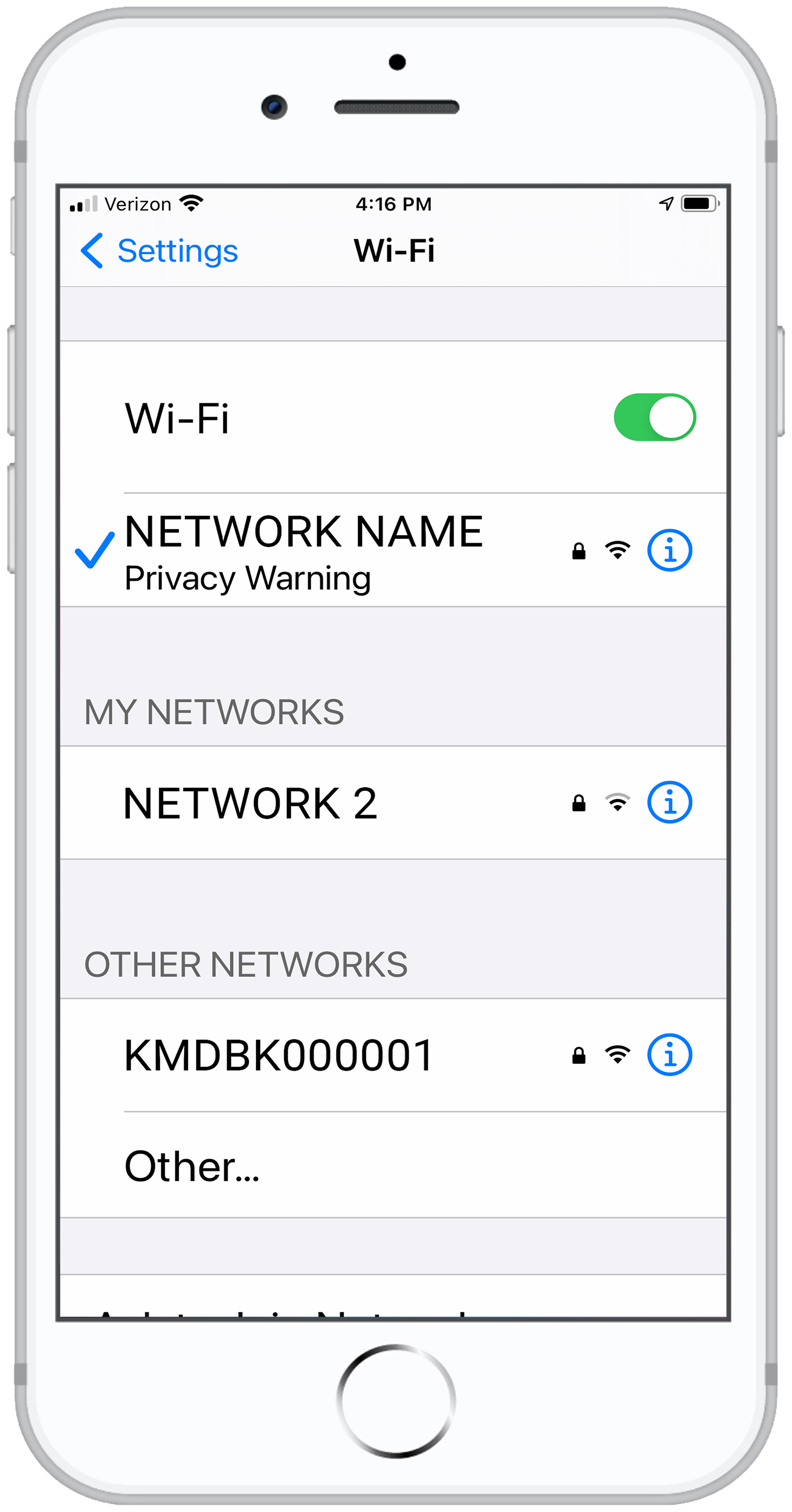

  1. From a Wi-Fi-enabled device, select the Wi-Fi connection to which the camera is connected.

  1. Open RED Control on the
    Wi-Fi-enabled device.

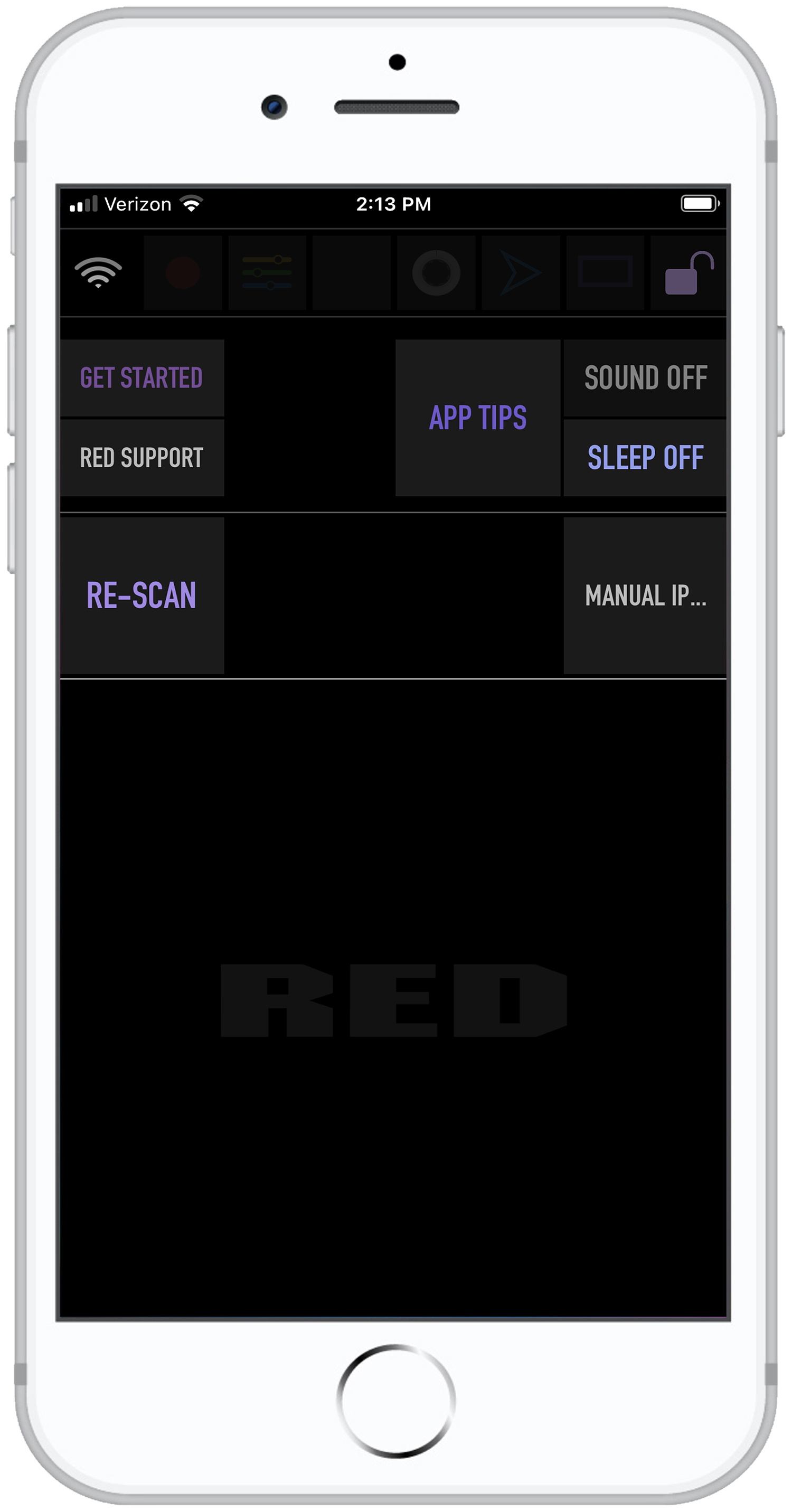

  1. Tap RE-SCAN.
    The camera icon displays.



The camera icon displays the camera's Ethernet IP address:

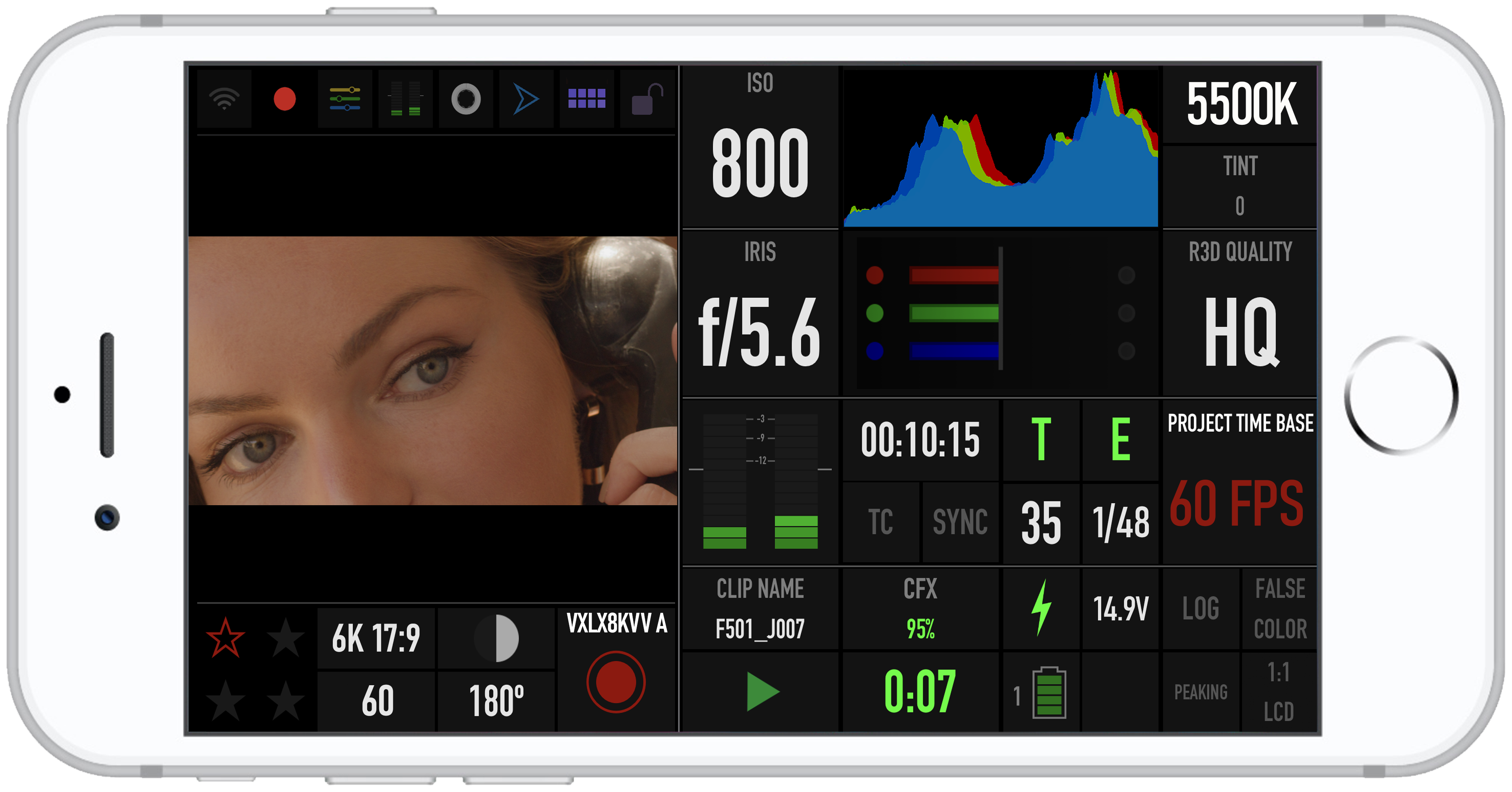

  1. Tap the camera icon to open the RED Control app tools for the networked camera.

  1. Open a browser from a computer connected to the Ethernet network.

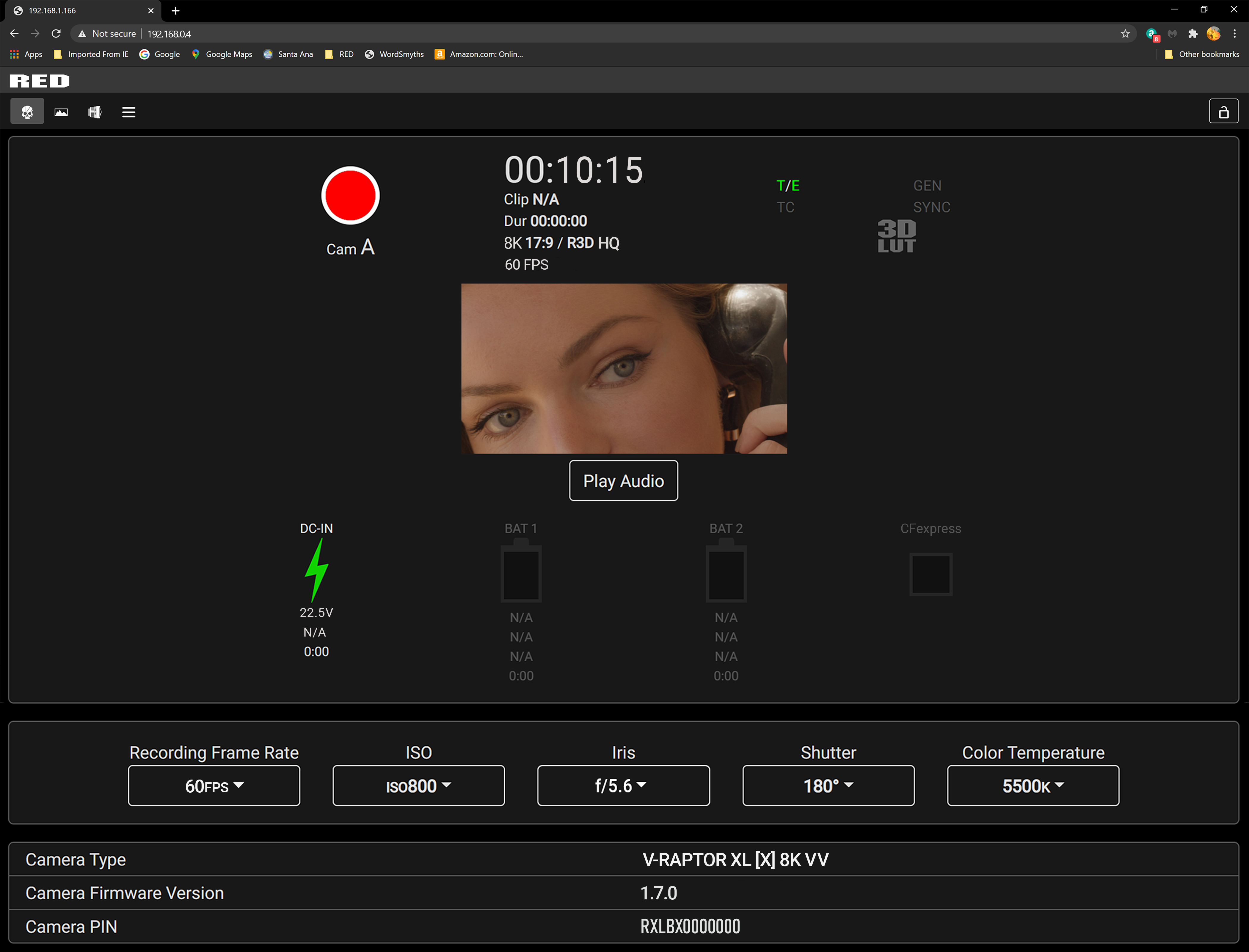

  2. In the browser address field, enter the camera IP address displayed on the RED Control camera icon or the camera Communication menus (Ad-Hoc, Infrastructure). The RED Control tools are displayed in the browser.
