4-Pin DC-IN

The ODU 4-Pin 2L male DC-IN connector accepts DC input power from +19.5 V DC to +34 V DC. A built-in power conditioner protects against reverse-polarity connections, undervoltage, overvoltage, and overcurrent.

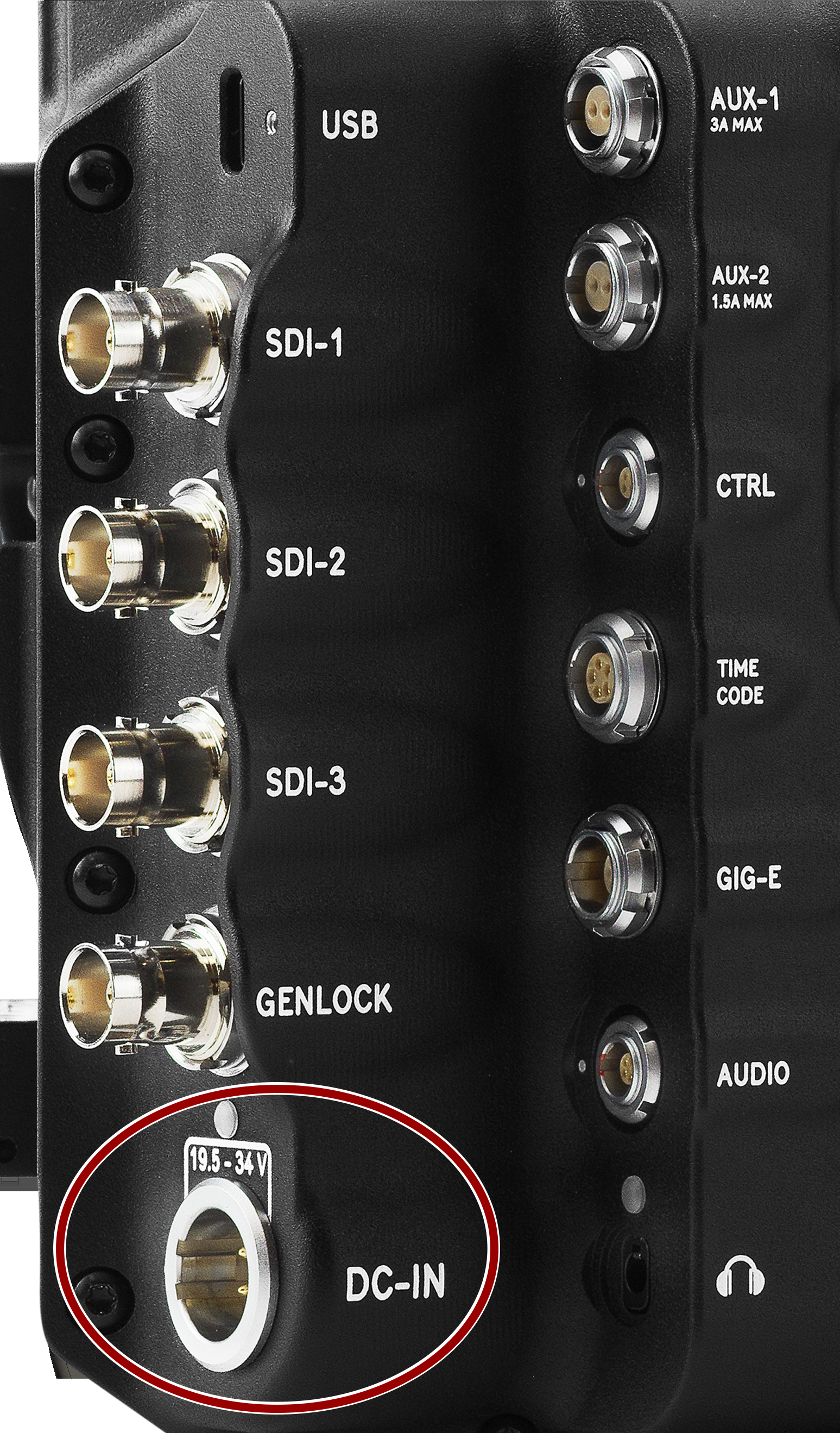

Front Face of the DC In Power Input Connector (Looking at the Camera)

Figure: Front face of the male DC-IN power input connector (looking at the back of the camera).

ODU 4-Pin 2L Male DC Input Connector

pin

signal

description

Direction

1

N/A

No connection (NC)

N/A

2

N/A

No connection (NC)

N/A

3

Voltage input

Power input, +19.5 to +34 V DC

In

4

Ground

Power return (camera ground)

Out

NOTE: Mating connector is LEMO FGJ.2B.304.CLLD62Z.

Compatible Cable

790-0665: 3-Pin XLR-TO-4-Pin 2B POWER CABLE (10')
