CTRL (RS-232 Control)

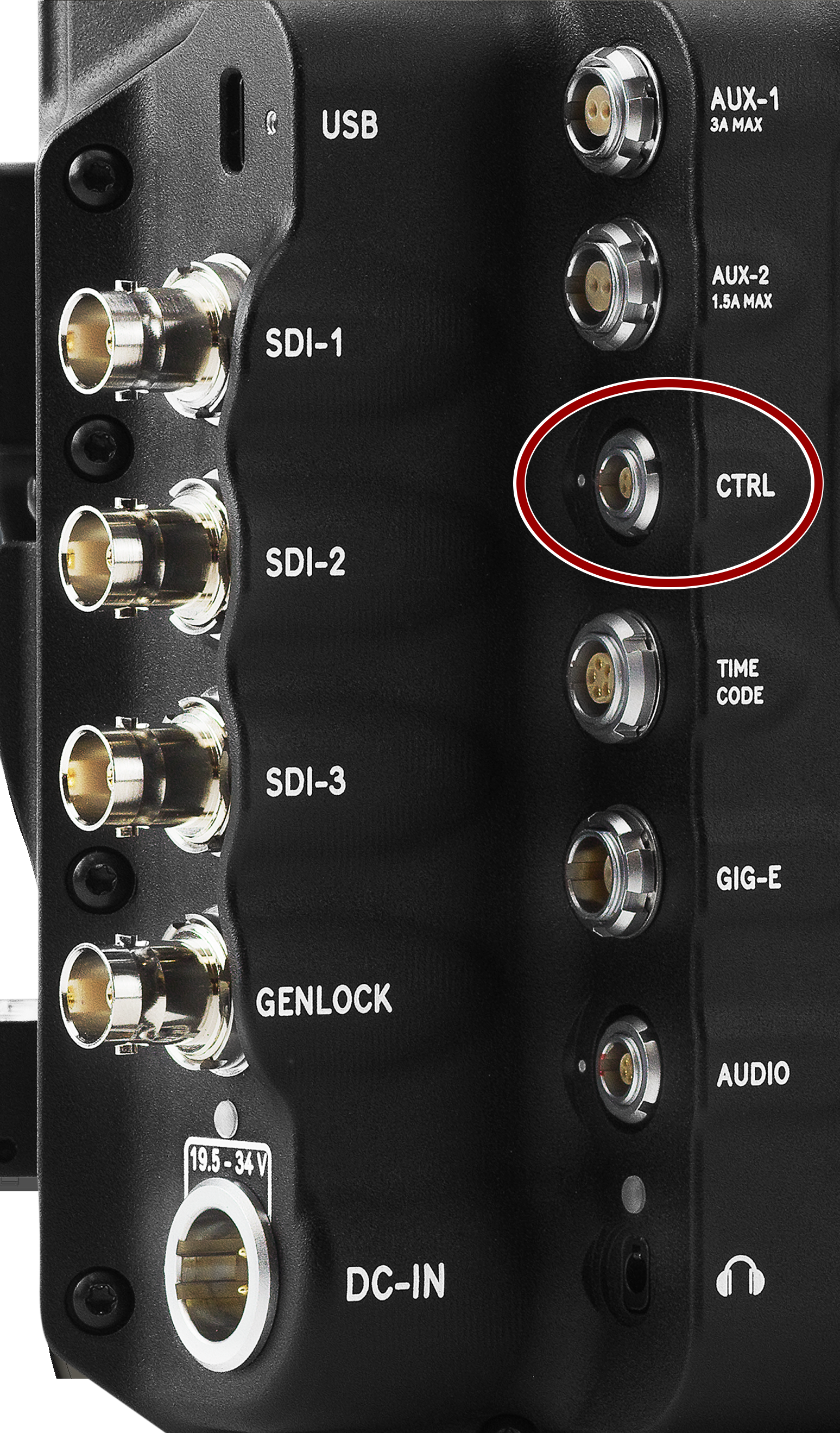

The female LEMO 4-Pin 00B CTRL port is located on the left side of the camera body.
Connect to this port to provide RCP2 communication between the camera and external devices.

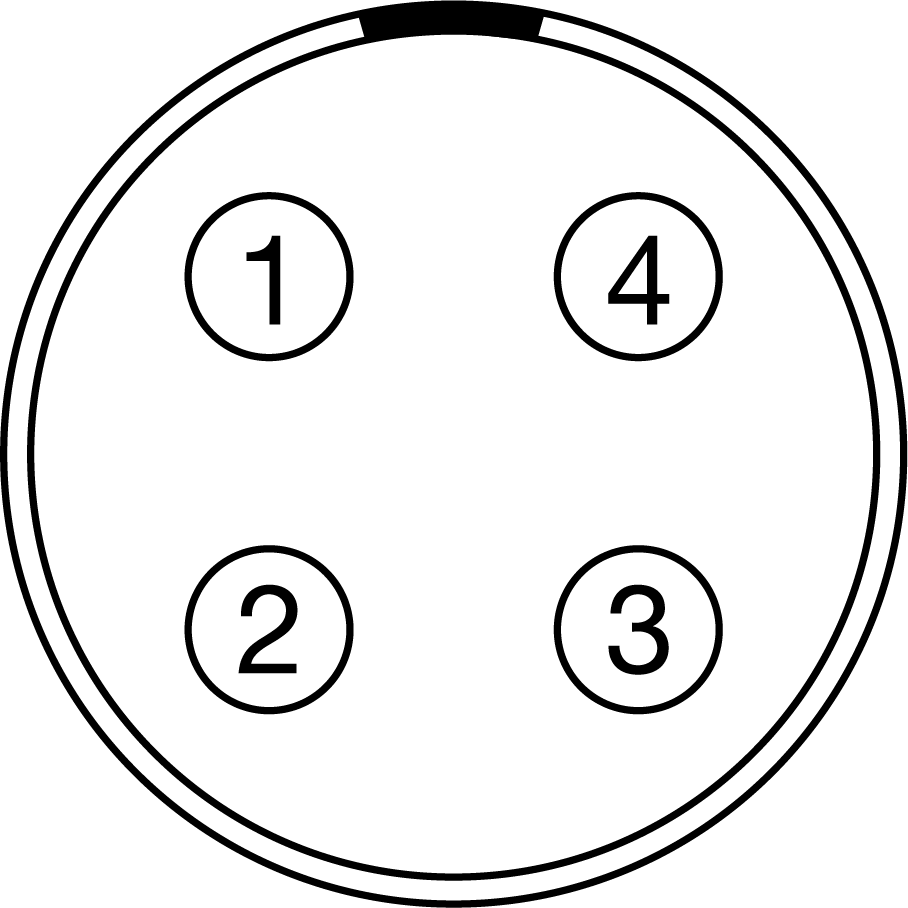

Figure: Front face of female 4-Pin 00B CTRL connector (looking at the back of the camera).
The female LEMO 4-Pin 00B CTRL connector supports RS-232 remote control for 3D camera communication and third-party metadata ingest applications.
For more information about controlling the camera using RS-232, download the R.C.P.™ SDK, available at www.red.com/developers.
LEMO 4-Pin 00B Connector
|
PIN |
|
SIGNAL |
|
Description |
|
Direction |
|---|---|---|---|---|---|---|
|
1 |
|
GROUND |
|
Common ground |
|
N/A |
|
2 |
|
232 RX |
|
RS-232 receive |
|
In |
|
3 |
|
GPO |
|
Set the General Purpose Out (GPO) to send a tally signal, or to send a recording frame rate signal (3.3V TTL) |
|
Out |
|
4 |
|
232 TX |
|
RS-232 transmit |
|
Out |
NOTE: Mating connector is LEMO FGG.00.304.CLAD.
Compatible Cable
- 790-0187, 790-0648: 4-Pin 00B-to-Flying Lead
- White: Ground
- Yellow: RS-232 receive
- Blue: Shutter/sync, general purpose output
- Red: RS-232 transmit
- Black: Shield
