12 Volt AUX Power (P-TAP) Ports

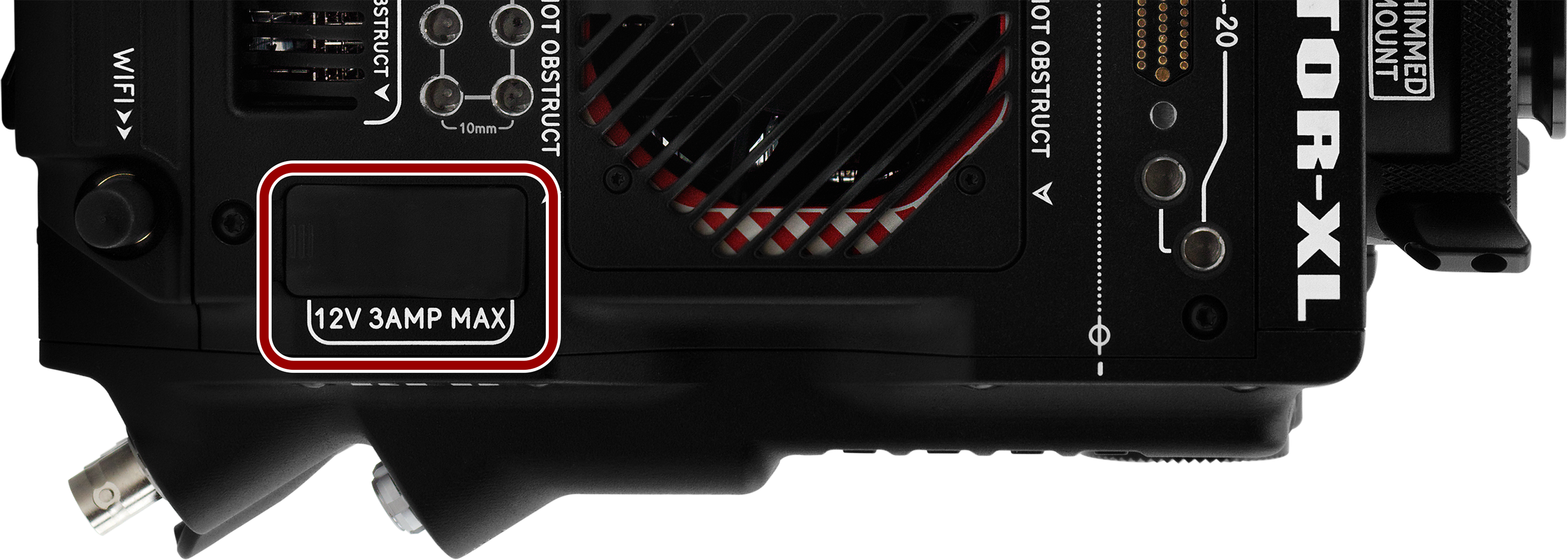

The two female P-Tap (also known as D-Tap) connectors supply 12 volts at a shared maximum of 3.0 amps of power. The ports are protected with a sealed cover. These ports are protected by a circuit breaker that automatically resets.
NOTE: This port is disabled when the camera is powered by a 14 V battery.

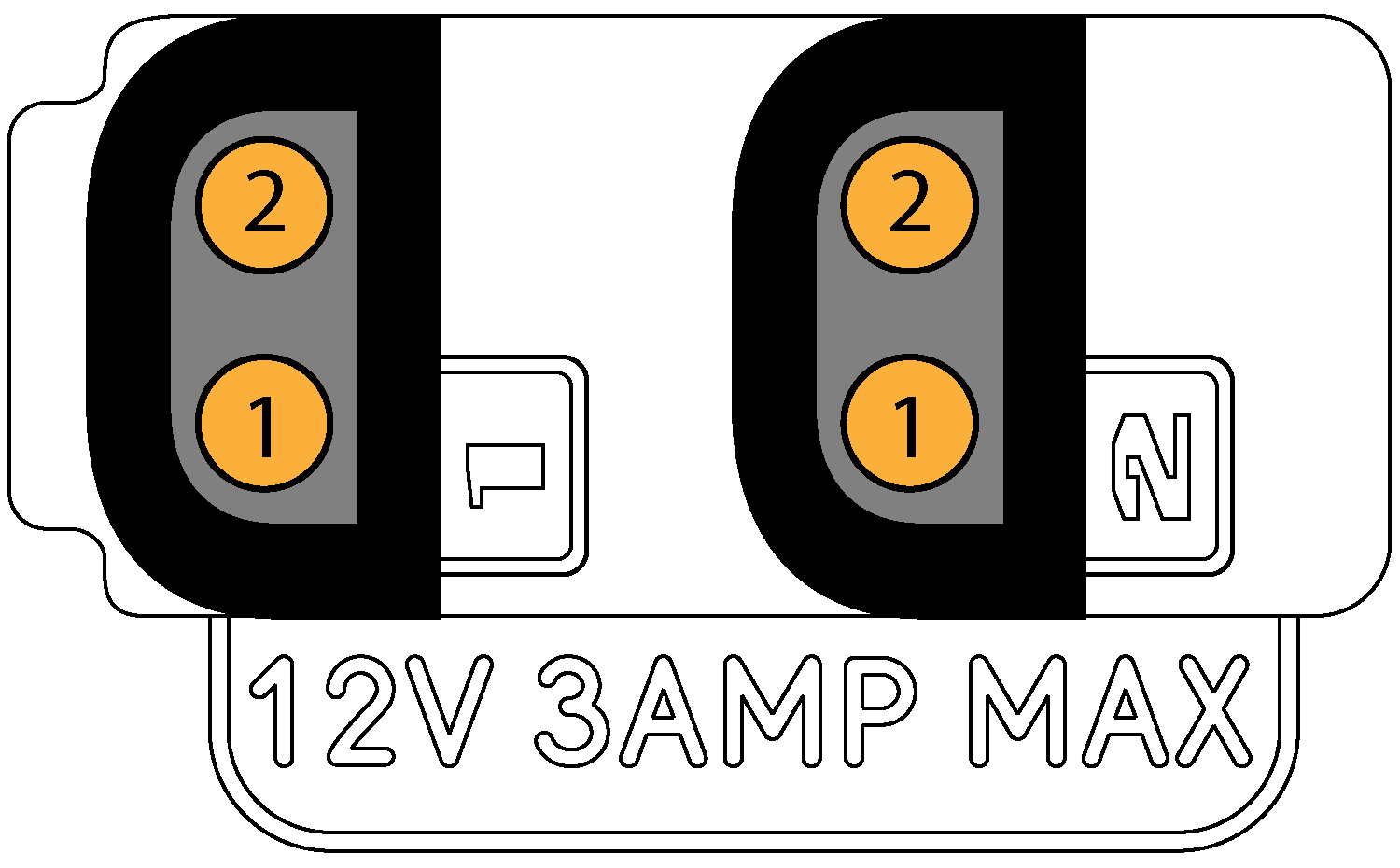

Figure: Front face of the uncovered P-Tap connectors (looking at the top of the camera).
P-Tap Connector
|
pin |
signal |
description |
Direction |
|---|---|---|---|
|
1 |
Ground |
Camera ground |
NA |
|
2 |
+12 V DC |
+12 V DC regulated power |
Out |
NOTE: Mating connector is a standard P-Tap/D-Tap male pin connector.
