Image Pipeline

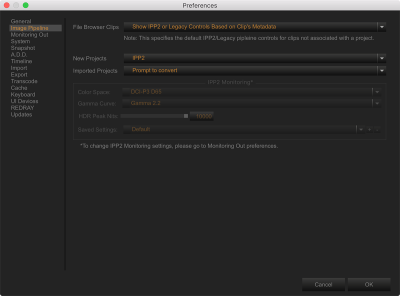

Figure: Image Pipeline Preferences

An image processing pipeline encompasses all the steps to transform raw sensor data to a Standard Dynamic Range (SDR) or High Dynamic Range (HDR) output image. The order of operations to convert the sensor data to the display image changes based on IPP2 or Legacy controls. The Image Pipeline tab allows you to toggle between IPP2 and Legacy controls. Go to Preferences > Image Pipeline to set the following items:

• File Browser Clips: Set to one of the following:
  • Show IPP2 or Legacy Controls Based on Clip's Metadata
  • Show Legacy Controls
  • Show IPP2 Controls
• New Projects: Set to one of the following:
  • IPP2
  • Legacy
• Imported Projects: Set to one of the following:
  • Prompt to convert
  • Always convert to IPP2
  • Leave as is

The Image Pipeline Preferences menu also shows the IPP2 monitoring settings. To configure IPP2 monitoring settings, go to Monitoring Out.
