Pro Battery Module (Dual)

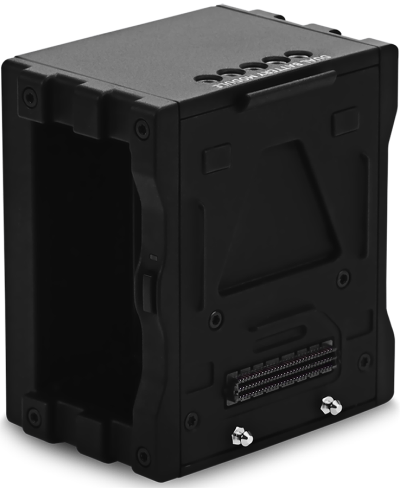

Figure: Pro Battery Module (Dual)
The Pro Battery Module (Dual) provides power to the EPIC/SCARLET camera using two (2) REDVOLT batteries. The Pro Battery Module (Dual) also supports hot swapping of REDVOLT batteries. Attaching outrigger handles and other tactical gear is convenient using the 1/4-20 mounting points on the top of the module.
For installation and removal instructions, go to EPIC/SCARLET Power Module Operations.
WARNING: DO NOT use more than one (1) battery module at a time. Using multiple battery modules may damage the camera and is not covered under warranty.
NOTE: A Module Adaptor or +1 Adaptor Module is required to mount the Pro Battery Module (Dual) to the BRAIN.
NOTE: The Pro Battery Module (Dual) does not charge batteries.
Pro Battery Module (Dual) LEDs
Both battery compartments have an LED and battery eject button to show the corresponding battery status.
|
COlor/flashing |
Description |
|---|---|
|
Off |
No battery |
|
Green |
Battery is charged, but is not in use |
|
Green flashing |
Battery in use |
|
Amber flashing |
Battery has 10 minutes of run time remaining; Accessing media (when formatting) |
|
Red |
Battery needs to be recharged |
|
Red flashing |
Battery has five (5) minutes of run time remaining |
Insert a Battery
- Align and insert the REDVOLT battery.
- Apply pressure to the battery until a click is heard, signalling the battery is properly seated.
Remove a Battery
- Press the Eject button to release the REDVOLT from the module.
-
Remove the battery.
