EPIC/SCARLET Power Module Operations

This section describes the attachment and removal of EPIC/SCARLET modules. These instructions are applicable to all EPIC/SCARLET modules, except adaptor modules. The Pro Battery Module (Quad) is shown.

WARNING: DSMC modules attach to an adaptor module. DSMC modules DO NOT attach directly to the BRAIN.

WARNING: Before installing or removing modules, you MUST turn off the camera.

NOTE: The REDVOLT XL Module is an exception to the adaptor module requirement. For more information, go to Install the REDVOLT XL Module.

Attach a DSMC Power Module

REQUIRED TOOL(S): T20 TORX driver

1. Turn off the camera.

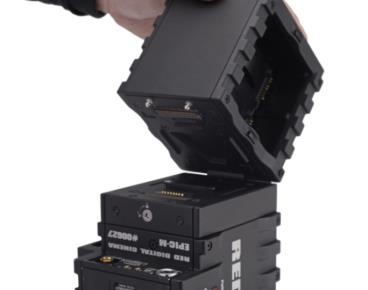

2. Insert the lip at the top of the module into the recess at the top of the adaptor module.



Figure: Insert Module Lip

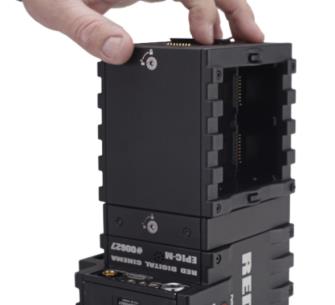

3. Rotate the module down flush with the rear of the adaptor module.



   Figure: Press Module Flush

4. Apply pressure and use a T20 TORX driver to rotate the lock on the adaptor module clockwise to the Lock position.

Remove a DSMC Power MODULE

REQUIRED TOOL(S): T20 TORX driver

1. Turn off the camera.
2. Use a T20 TORX driver to rotate the lock on the adaptor module counterclockwise to the Unlock position.
3. Rotate the module upwards and away from the adaptor module to disengage.
4. Remove the module.
