Power Menu

The Power menu displays the power status of all attached power sources and allows you to turn off the camera.

To access the Power Menu, go to Menu > Power.

NOTE: For more information about powering the camera, see the DSMC Power Operation Guide.

Power In

The power status displays for all attached power devices. The menu displays the voltage of the source or the relative percentage of the power left, as well as the time left, if applicable.

Power Out

The Power Out menu shows the status of the power out ports on the attached devices. The statuses are:

• N/A: The device is not present.
• OK: The power out port is functional.
• FAULT: A short or overcurrent tripped the electronic fuse. Remove the device that is connected to the port, as it may be drawing too much power. Select RESET to clear the fault.

When the DSMC2 REDVOLT Expander is attached, you can see the current output of each power out port (in amps), and toggle those ports on/off.

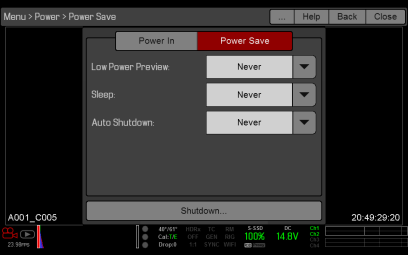

Power Save

You can select the following power saving options (the default for each is Never):

• Low Power Preview: The camera uses a lower amount of power after the specified period of inactivity.
• Sleep: All monitors turn off and keys do not perform mapped actions after the specified period of inactivity. Tap the touchscreen or press a key to exit Sleep mode.
• Auto Shutdown: The camera turns off after the specified period of inactivity.

Shutdown

Shutdown controls are interlocked to prevent the camera from being accidentally turned off. For more information about different ways to turn off your camera, go to Turn Off the Camera.

1. Go to Menu > Power.
2. Select Shutdown.

   The Shutting Down... message displays and the camera turns off.
