Infrastructure
Use Infrastructure to configure the camera to connect to an existing Wi-Fi network.

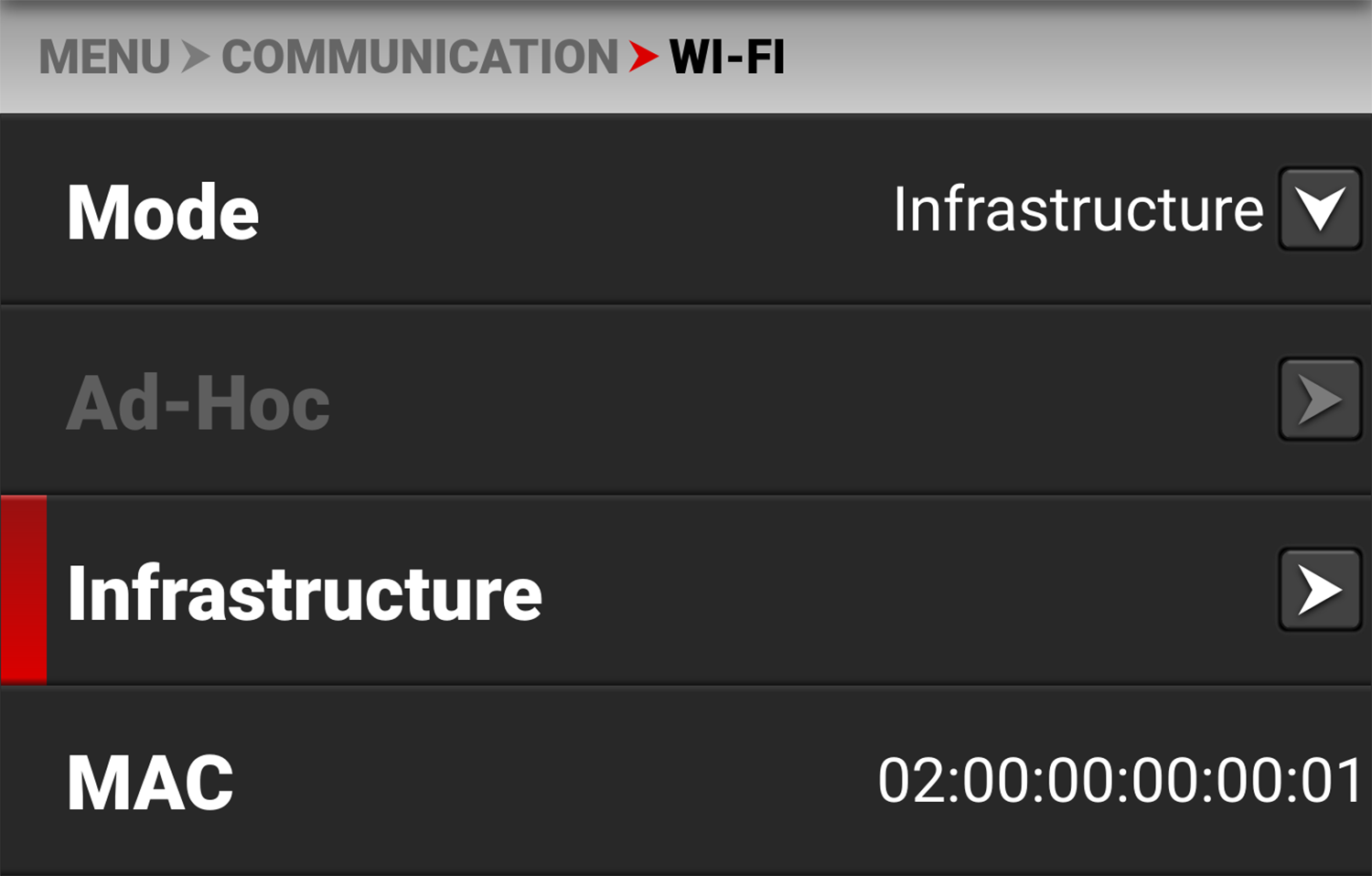

NOTE: The Infrastructure menu is enabled when the Wi-Fi Mode is set to Infrastructure. Refer to the Wi-Fi section for more information.
Use the Infrastructure menu to configure the Wi-Fi settings to connect to an existing Wi-Fi infrastructure:
|
Items |
|
Details |
|---|---|---|
|
|
Enter the name of the Wi-Fi network |
|
|
|
Enter the passphrase for the Wi-Fi network |
|
|
|
Button to connect the camera to the configured Wi-Fi |
|
|
|
Displays the Wi-Fi connection status |
|
|
|
Enable or disable DHCP |
|
|
|
Displays the Wi-Fi IP address |
|
|
|
Displays the Wi-Fi Netmask |
|
|
|
Displays the Wi-Fi Gateway |
SSID

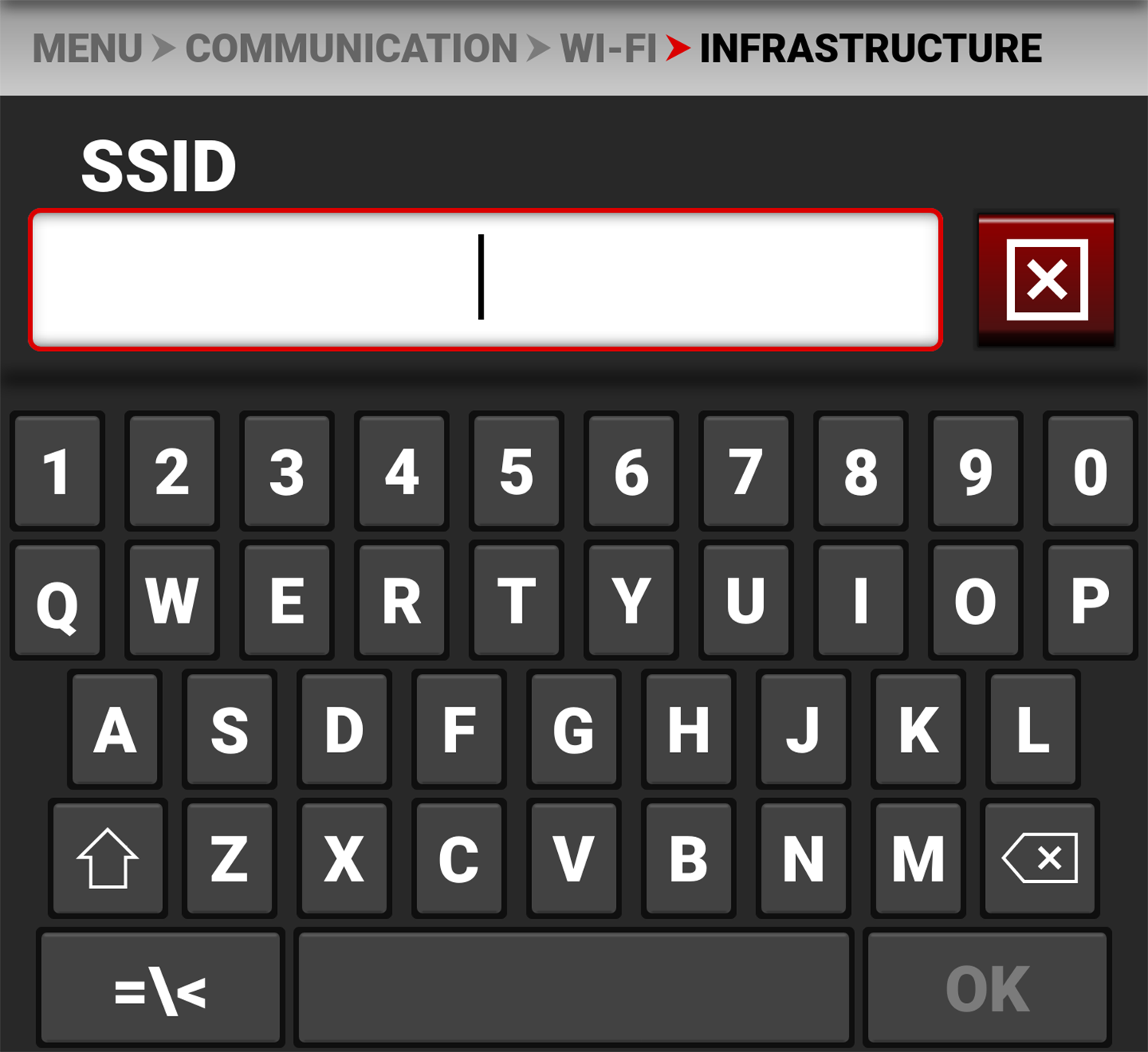

Use the keypad to enter the router's Wi-Fi network name (SSID).

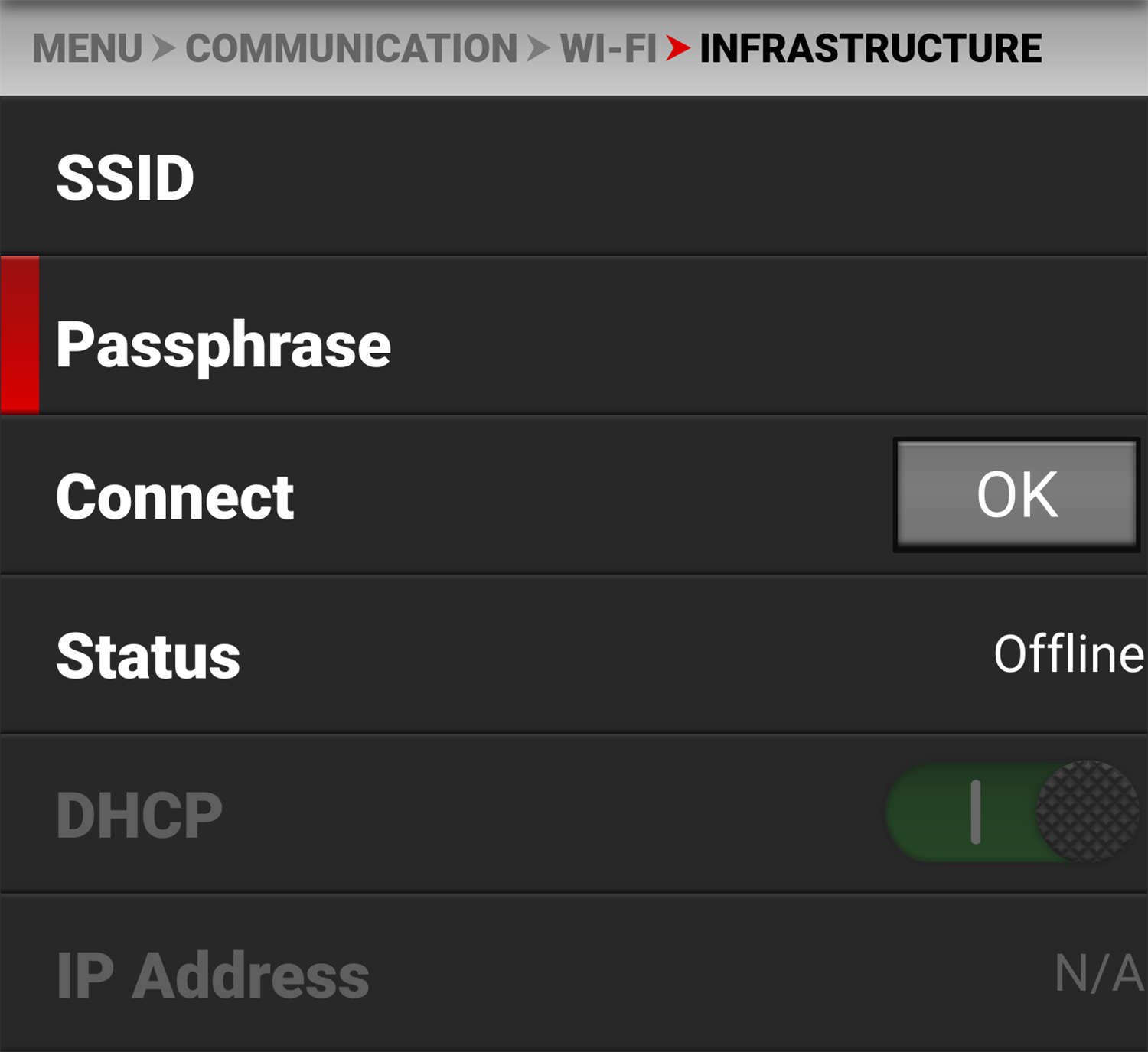

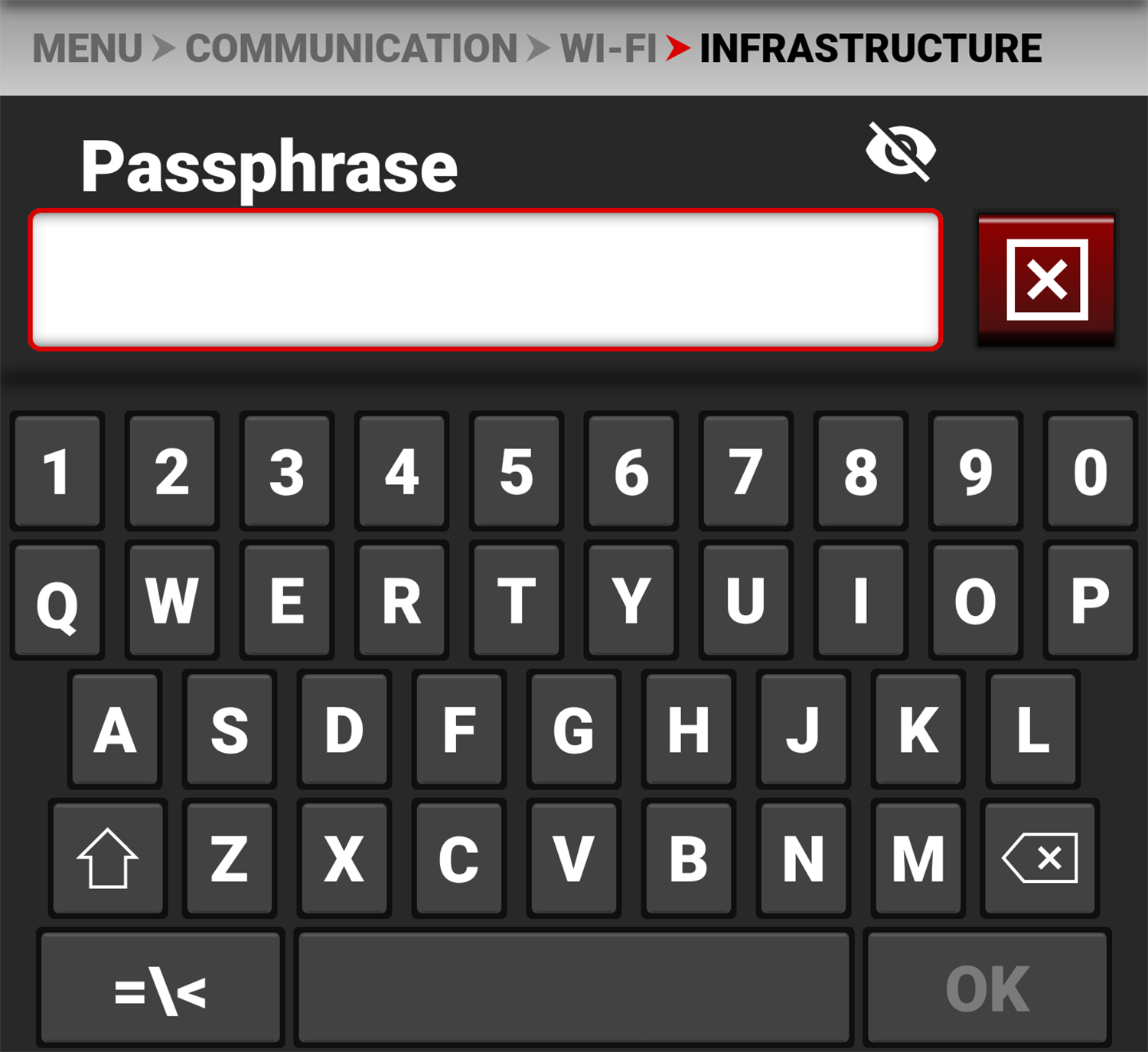

Passphrase
NOTE: When you are connecting the camera to a network to which you have previously connected, the Passphrase will automatically populate.

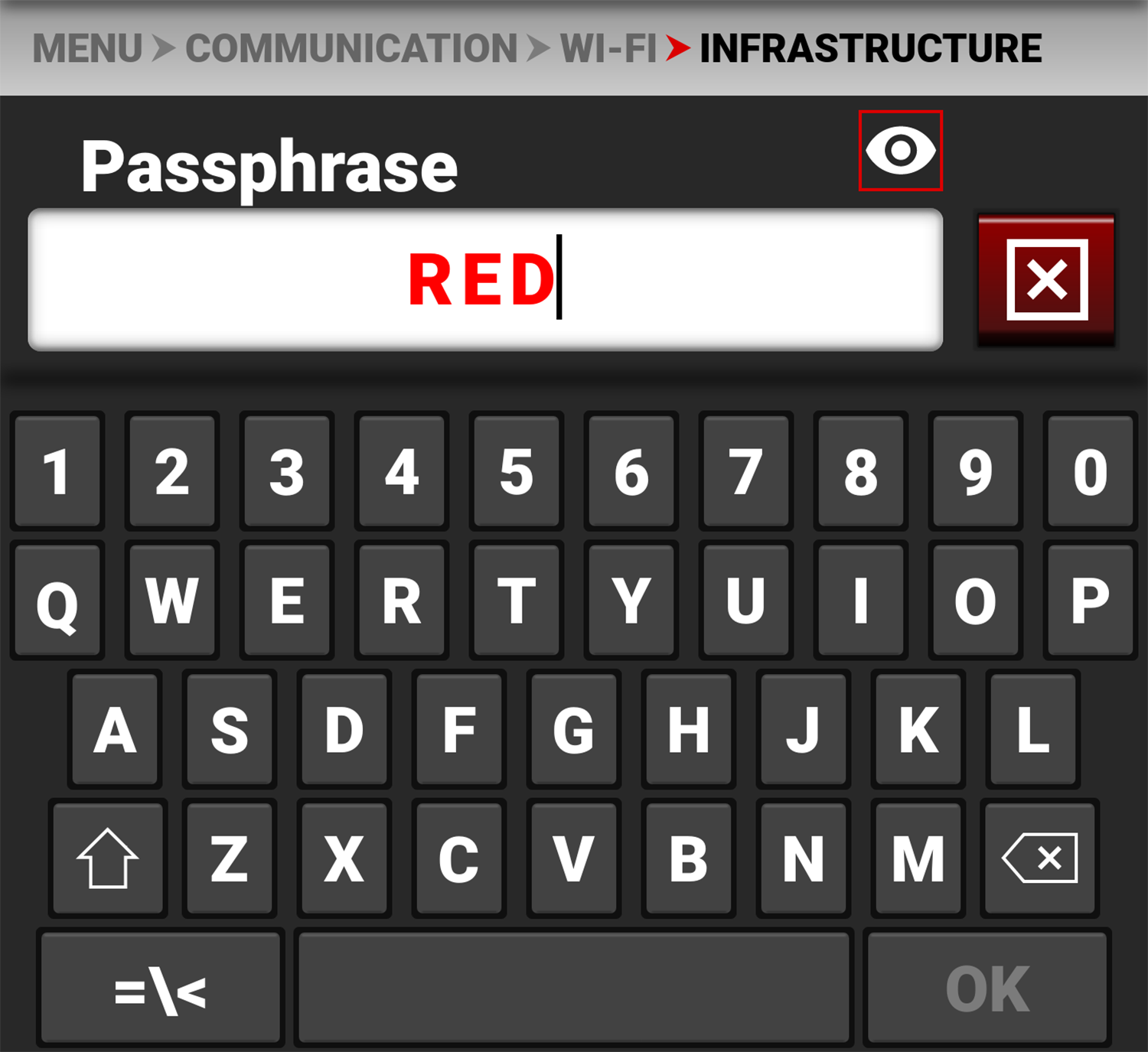

Use the keypad to enter the Wi-Fi infrastructure password. Use the Eye icon to hide the characters or make them visible.

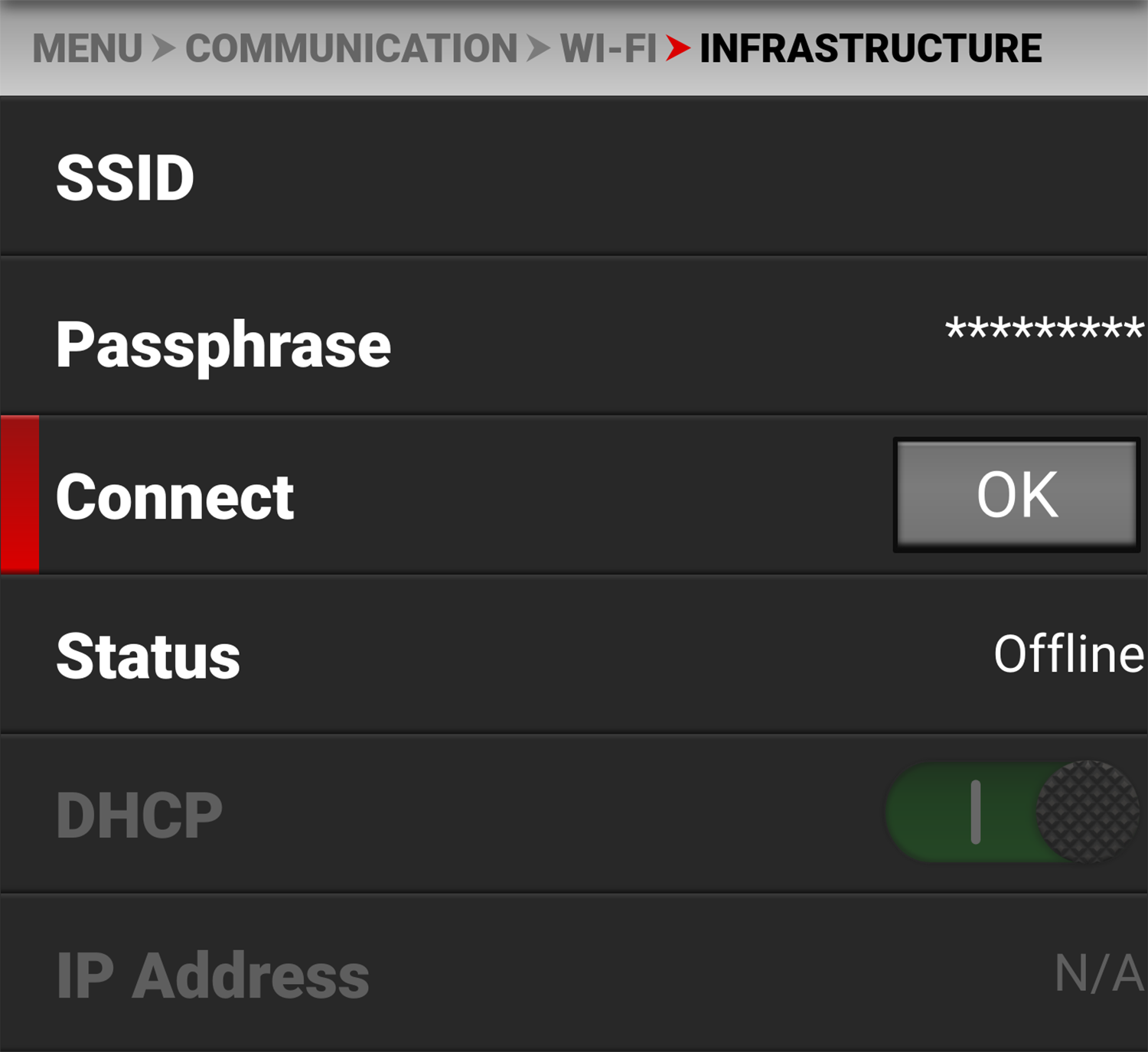

Connect

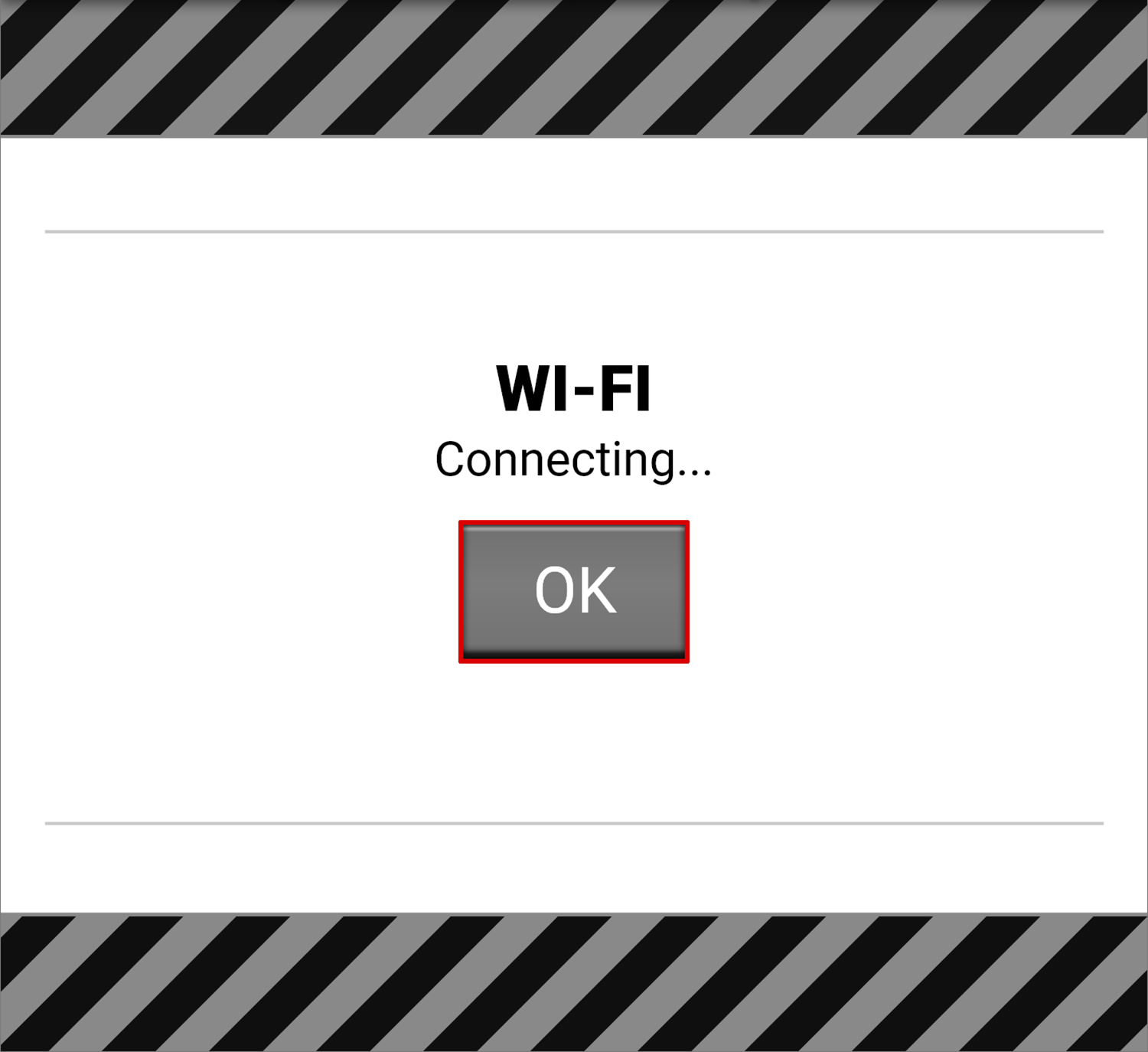

Tap the Connect button to connect the camera to the existing Wi-Fi infrastructure.

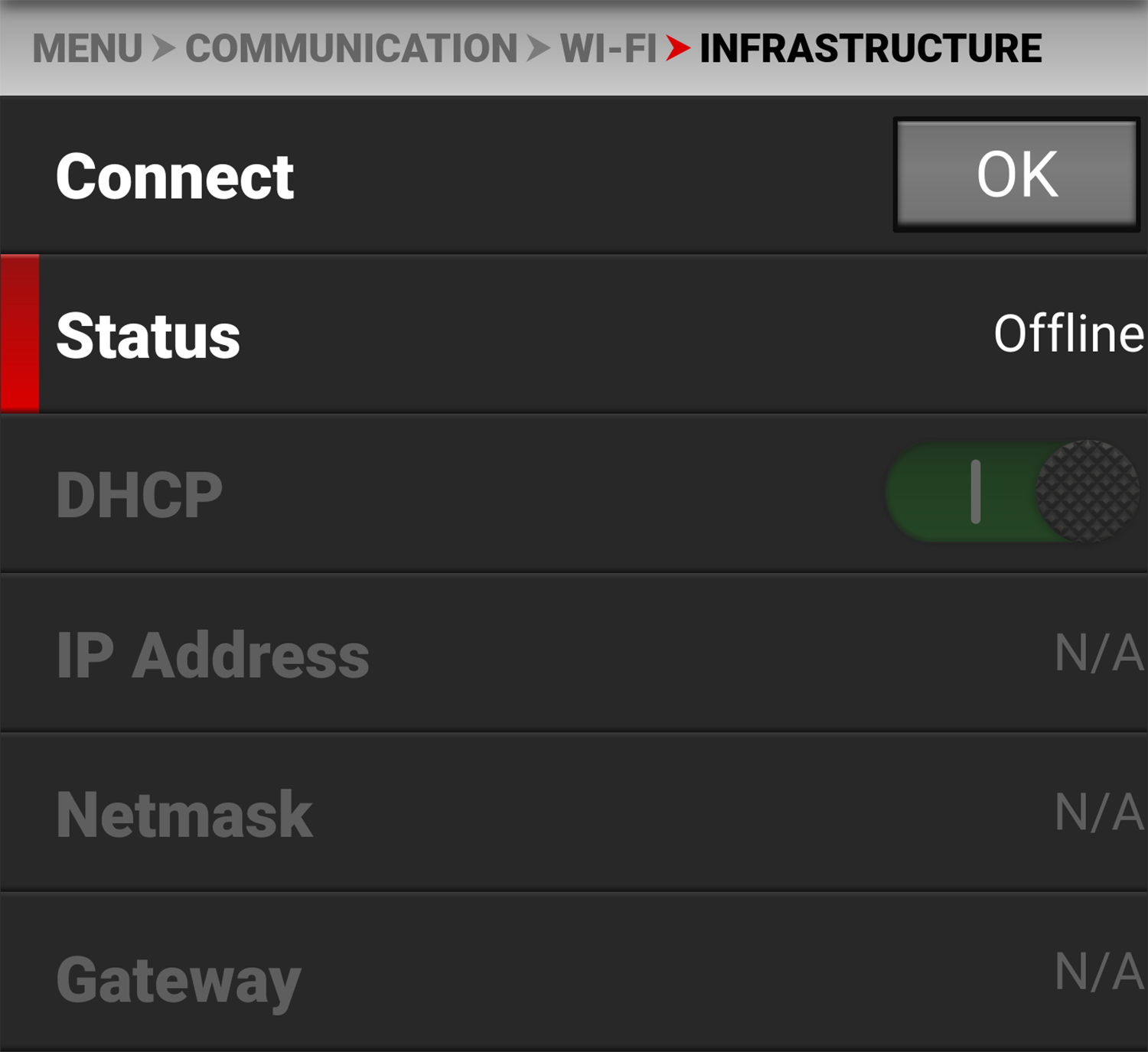

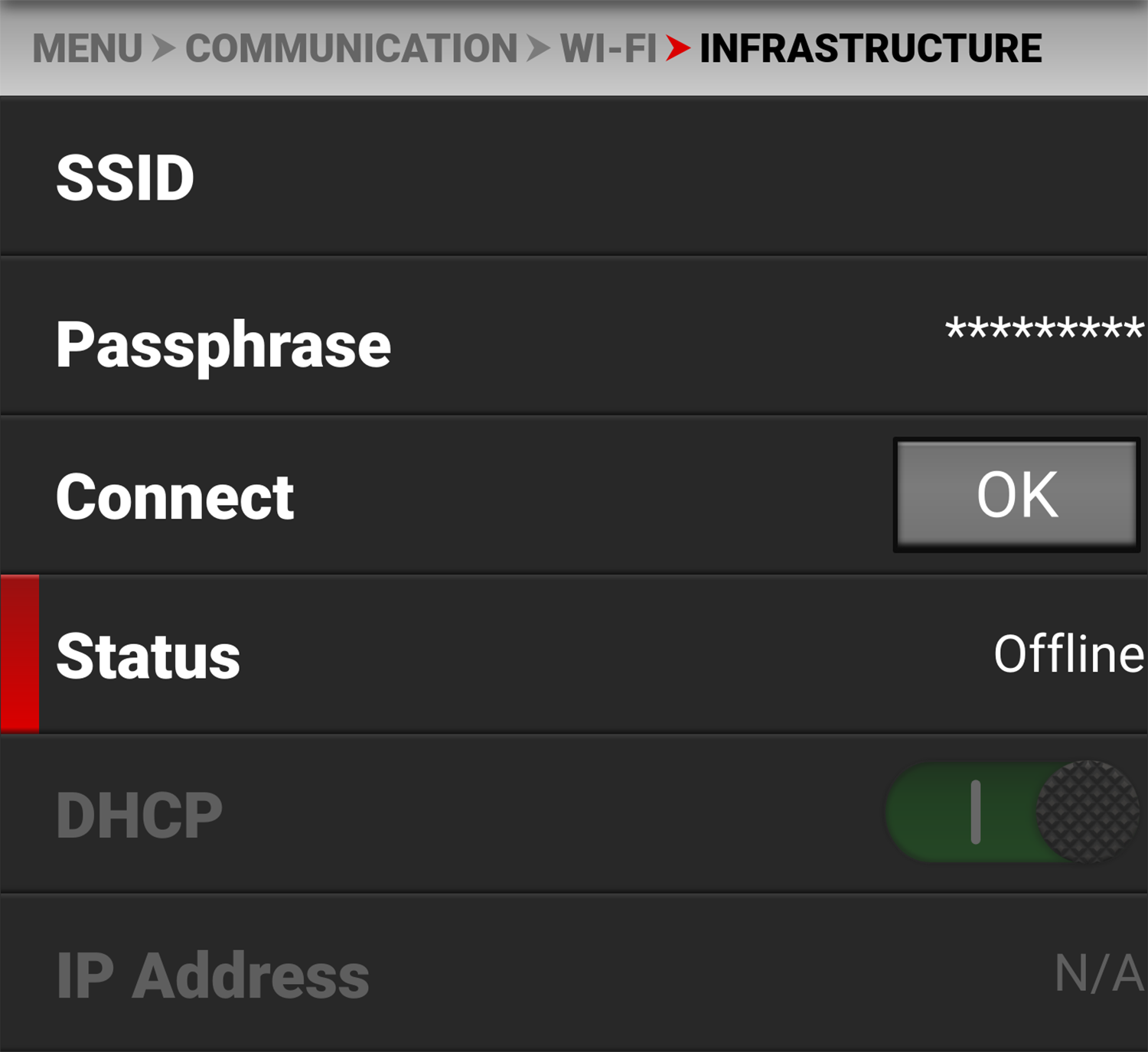

Status
Displays the connection status of the camera to the Wi-Fi infrastructure.
DHCP
When connected to Wi-Fi, this allows you to enable or disable DHCP.
IP Address
When connected to Wi-Fi, this displays the IP address.
Netmask
When connected to Wi-Fi, this displays the Netmask.
Gateway
When connected to Wi-Fi, this displays the Gateway.
