Serial

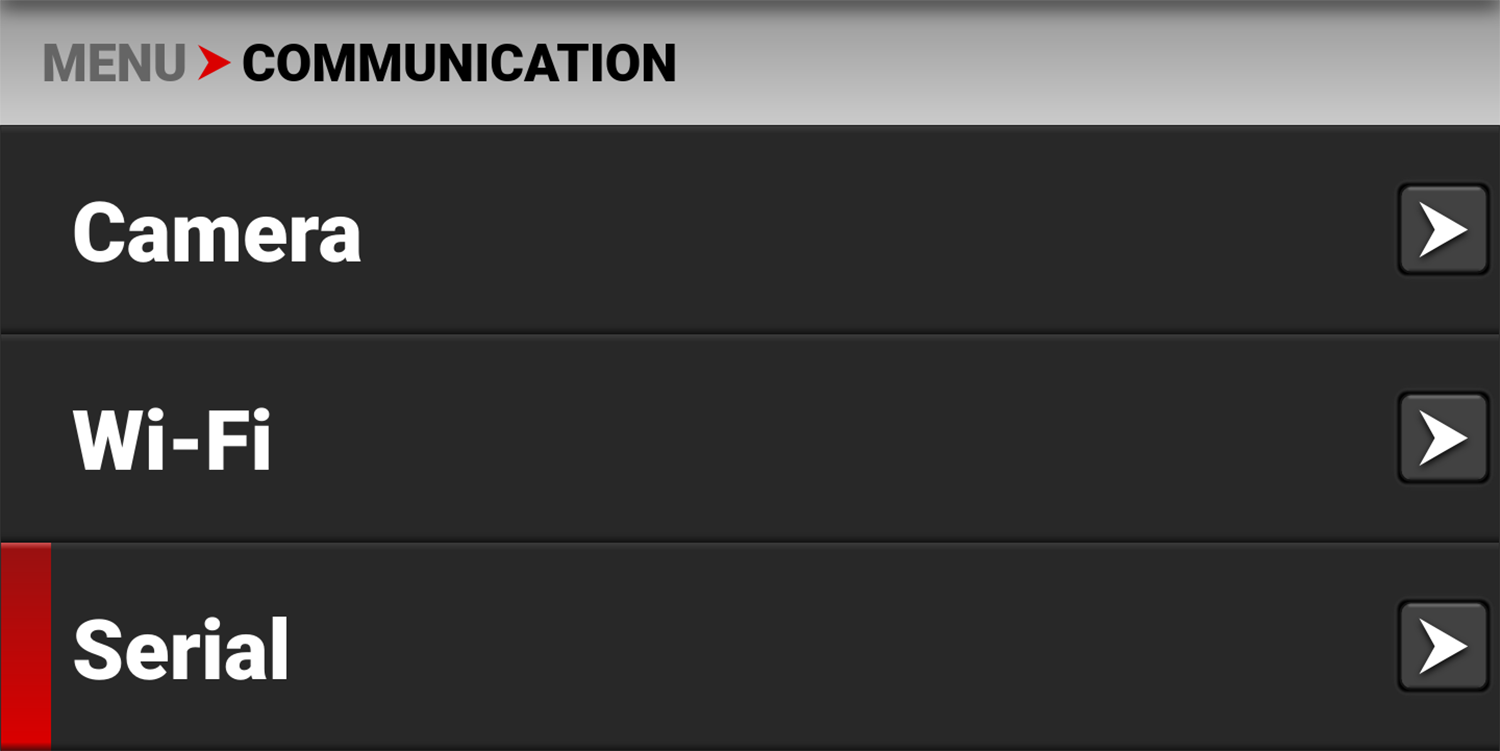

Use Serial to configure the serial connection to the Extension Port.
The settings you can configure for the serial connection through the Extension Port include:
|
Items |
|
Details |
|---|---|---|
|
|
Select the serial port baud rate |
|
|
|
Enter the IP address for the PPP protocol |

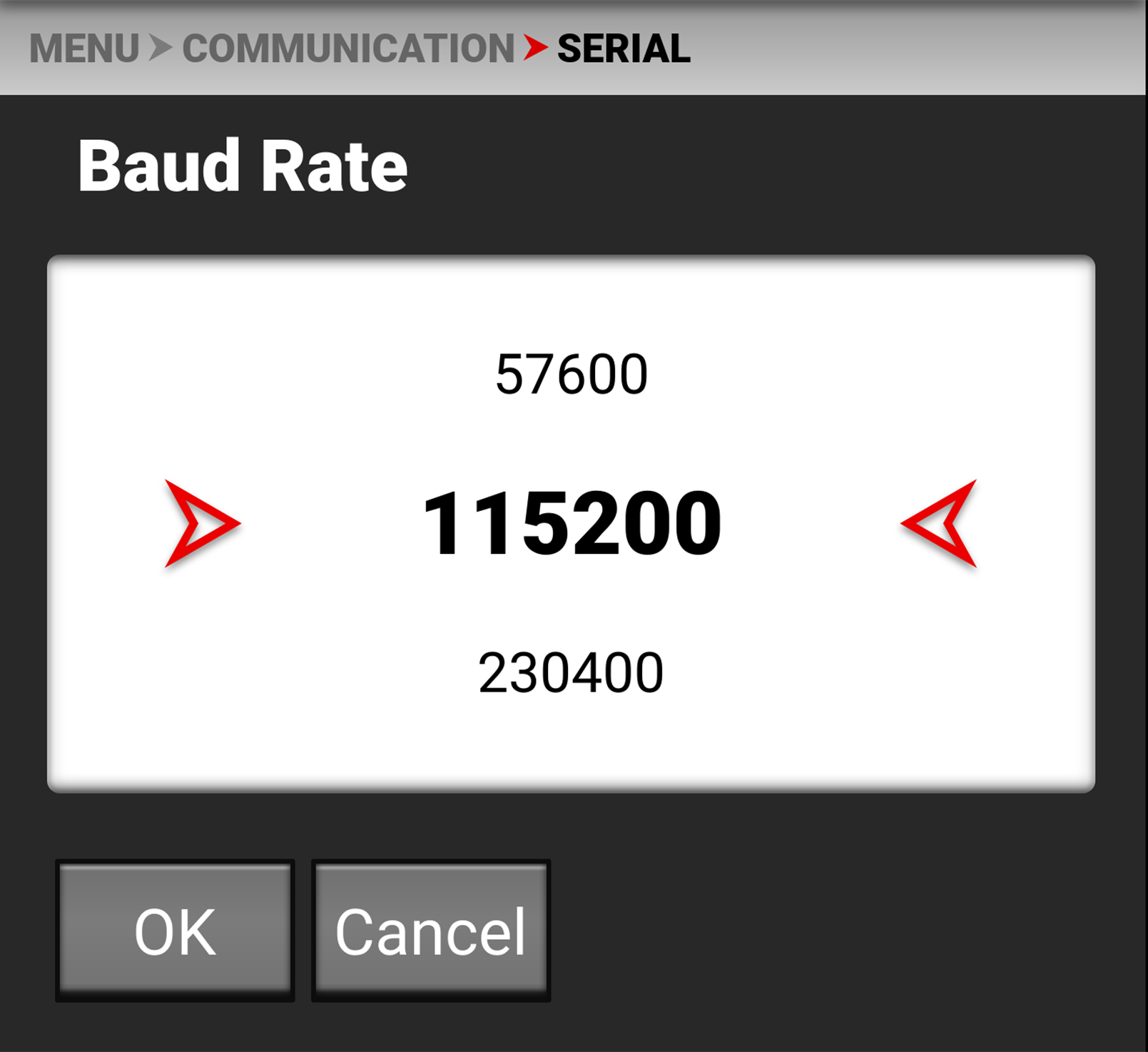

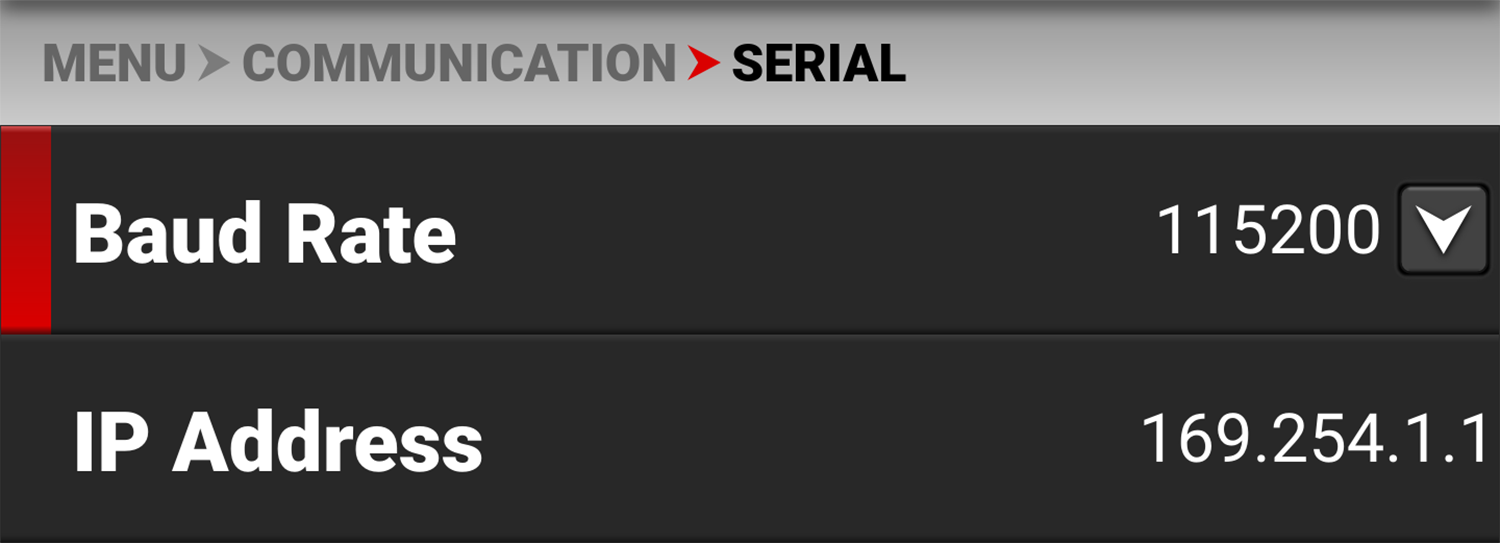

Baud Rate
The Baud rate controls how fast data is transmitted over the serial connection. The higher the speed, the more likely that errors can occur. The Baud rates you can choose include:
|
Baud Rates |
||||||
|
9600 |
|
115200* |
|
576000 |
|
1500000 |
|
19200 |
|
230400 |
|
921600 |
|
2000000 |
|
38400 |
|
460800 |
|
1000000 |
|
2500000 |
|
57600 |
|
500000 |
|
1152000 |
|
3000000 |
* Default

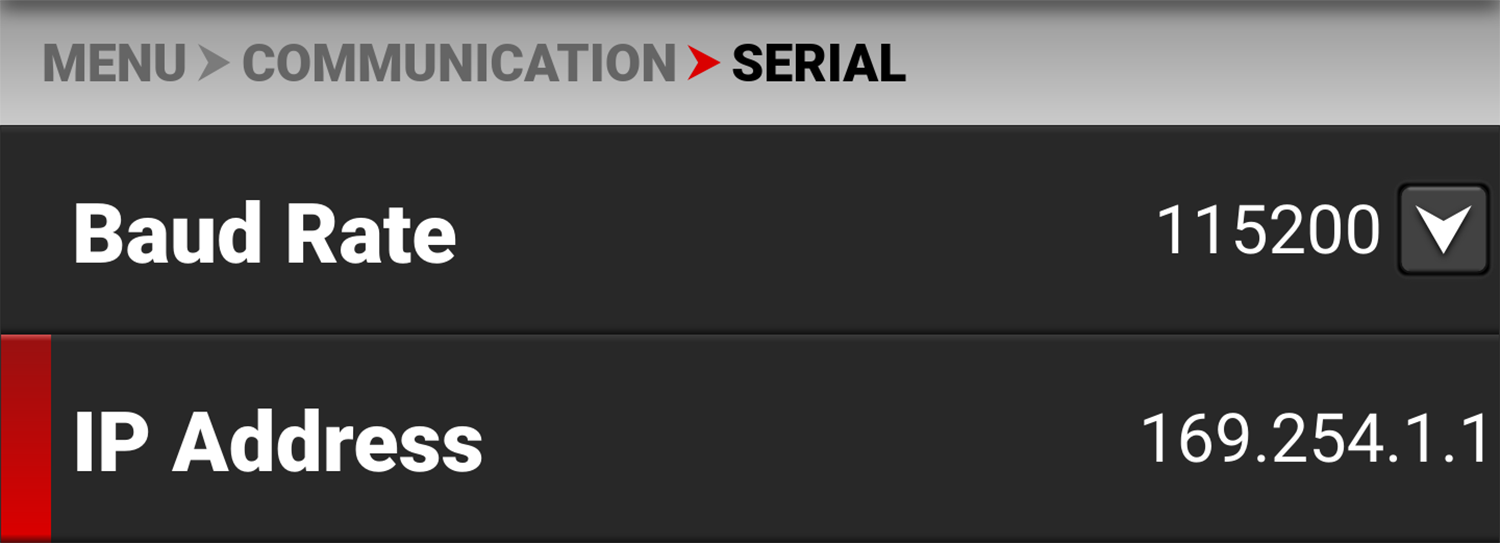

IP Address

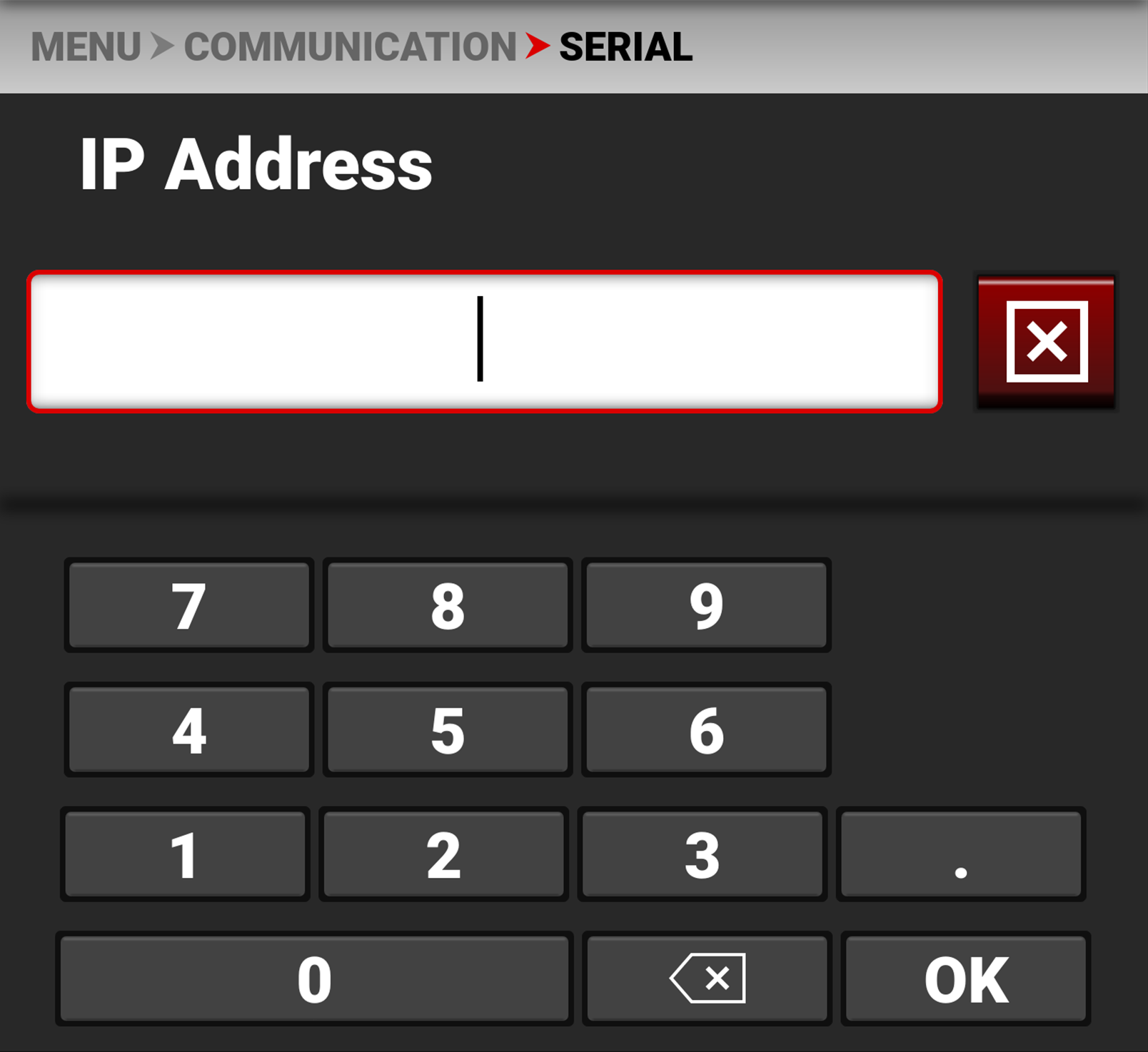

Use the keypad to enter the internet provider's IP address.
