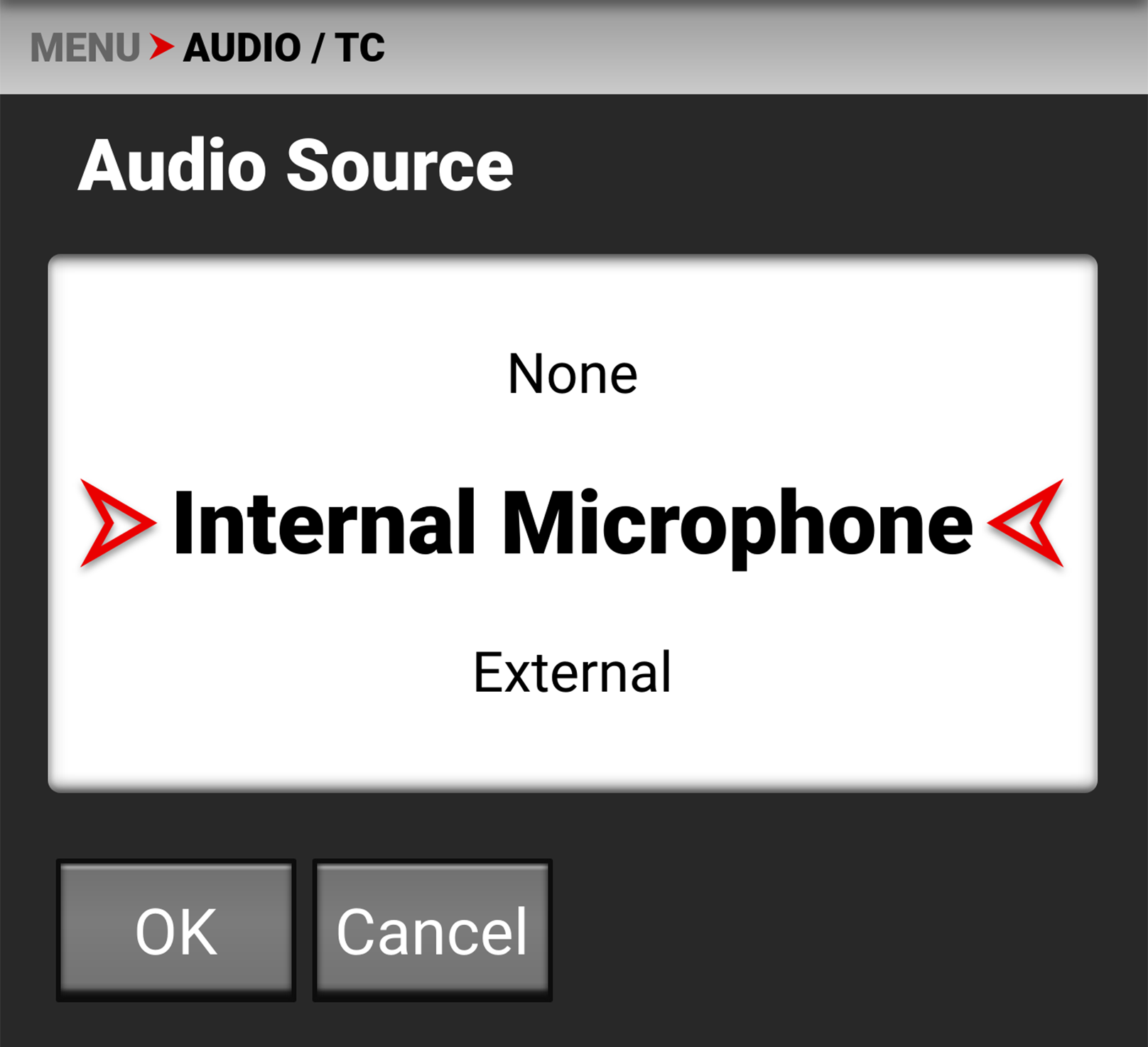

Audio Source

Use the Audio Source settings to select the audio input source.

NOTE: When the Recording Frame Rate and Project Time Code settings are different, this menu is disabled, and the camera cannot record audio.



The audio input sources include:

• None
• Internal Microphone - enables the Internal Microphone channels 1 and 2 (default)
• External - enables the 3.5 mm Audio Input port for External Audio channels 3 and 4
• Internal and External - enables the Internal Microphone and 3.5 mm Audio input port for all channels 1 through 4.
  NOTE: The headphones can only monitor two channels. You can either monitor channels 1 and 2 (internal microphone) or you can monitor channels 3 and 4 (external port). Refer to Audio Tools for more information.
