Peaking

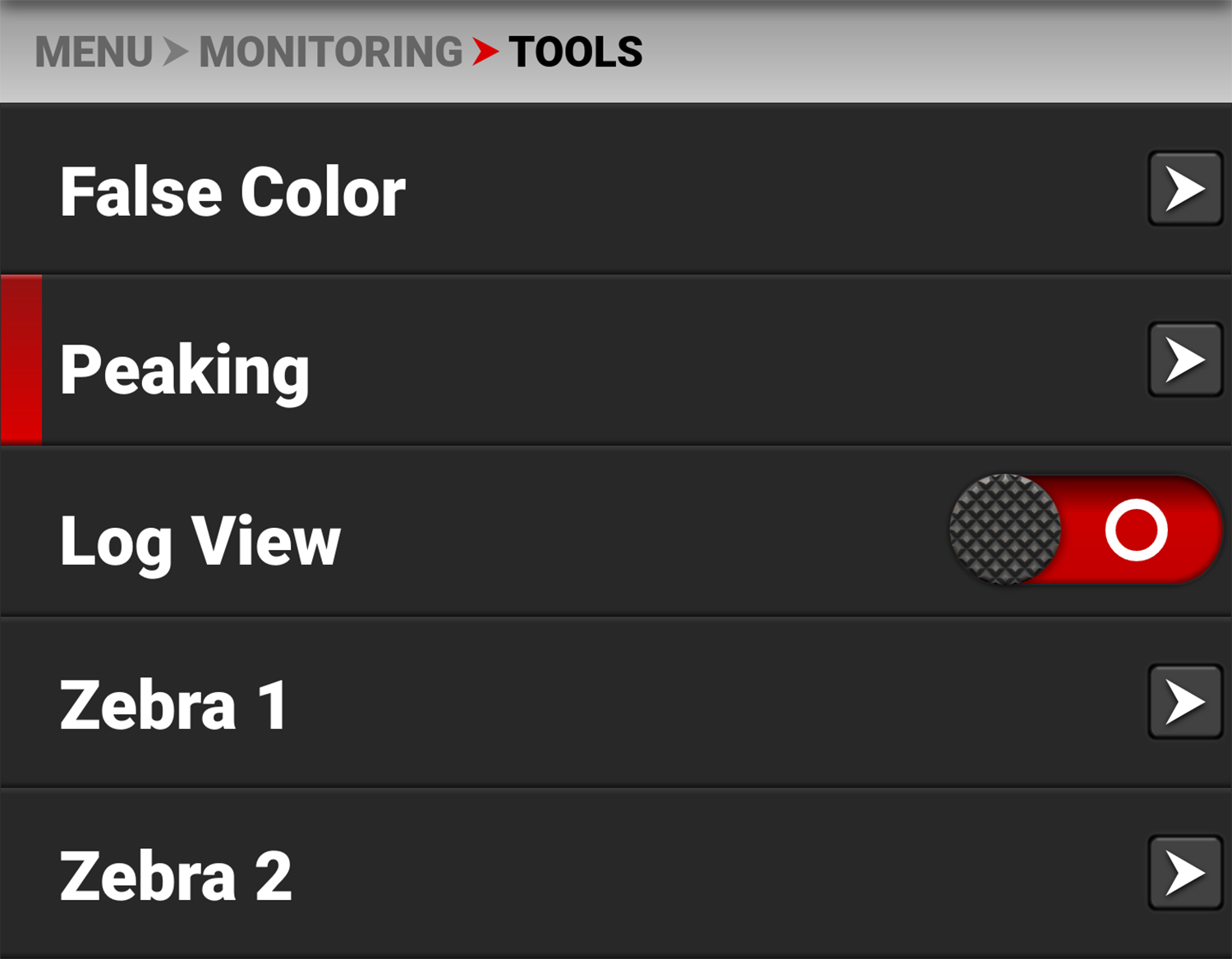

The Peaking tools display contrast, outlines, or colors to assist with focusing.

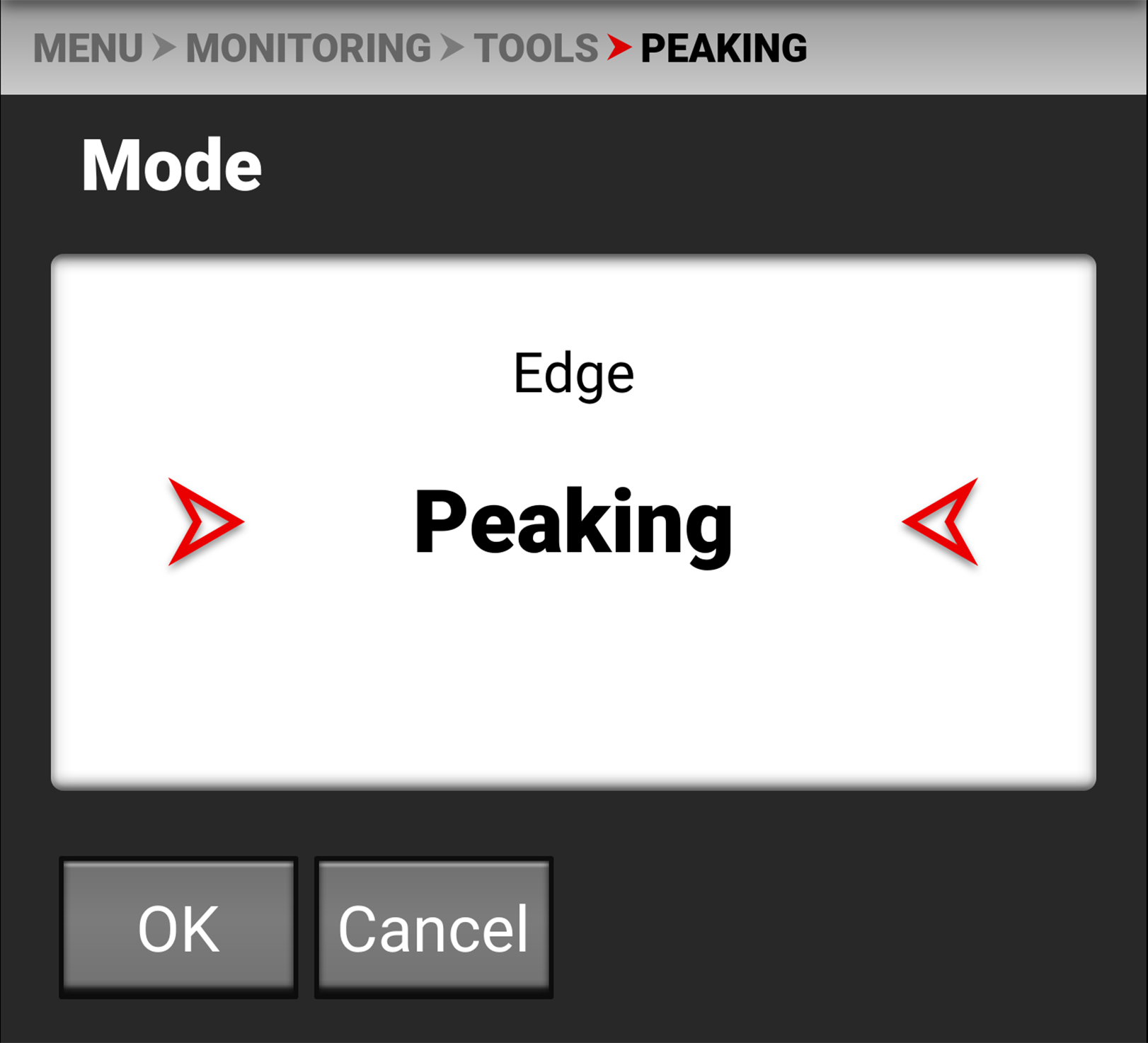

The Peaking modes you can use include:

Items	Details
Focus	Use enhanced contrast and edges for focusing
Edge	Show outlines of focused objects
Peaking	Select a colored overlay to indicate objects in focus

Focus Peaking Mode

Focus Peaking mode emphasizes contrast and edges in the image without changing the brightness or the image content. This mode makes it easier to judge focus. Adjust the zoom and focus to easily see which objects are coming into focus.

Edge Peaking Mode

When you enable Edge Peaking mode, the display shows the edges or outlines of objects that are in focus.

Peaking Peaking Mode

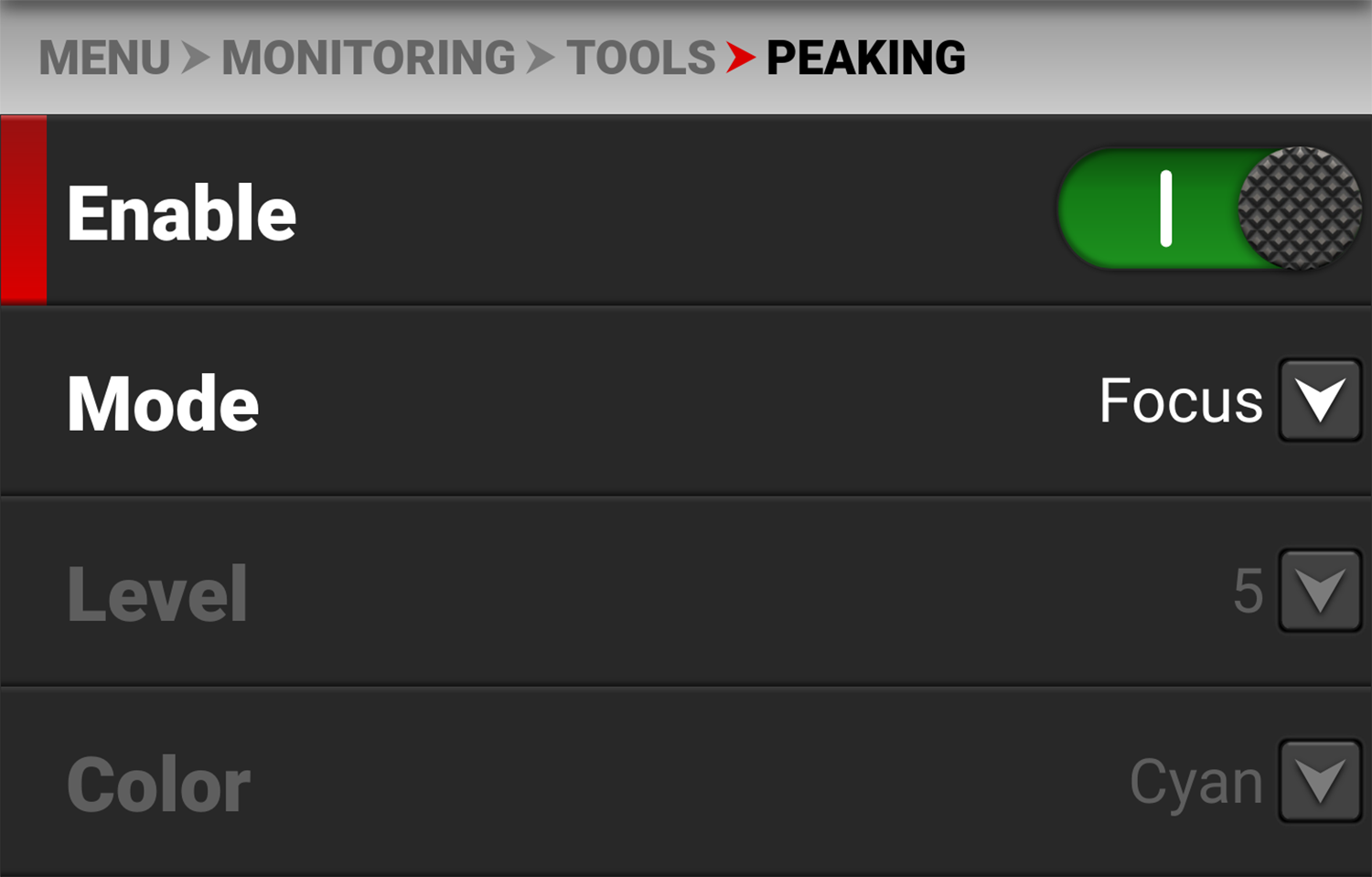

The Peaking Peaking mode displays a color overlay on top of in-focus edges. Select a Level of 1 to 10 (weak to strong) for the intensity of the color overlay. The RGB settings can change the appearance of the selected color overlay.

The Peaking Peaking mode indicator is applied after the image is scaled to a monitor, making the indicators appear differently on various monitors.

For more information about Peaking, refer to Focus in the How To section.
