Focus

Focus, like Exposure and Recording Frame Rate is a property that cannot be fixed easily in post-production. To make sure the camera is focused correctly when you begin recording, it is important to rely on focus tools that do not rely on the visibility on the LCD Touchscreen or a monitor.

The camera interface includes the focus tools you can use to reach the desired image focus (refer to Peaking).

Focus Peaking Mode

The Focus Peaking mode applies a sharpening filter to the image that emphasizes edges of the subject in focus.

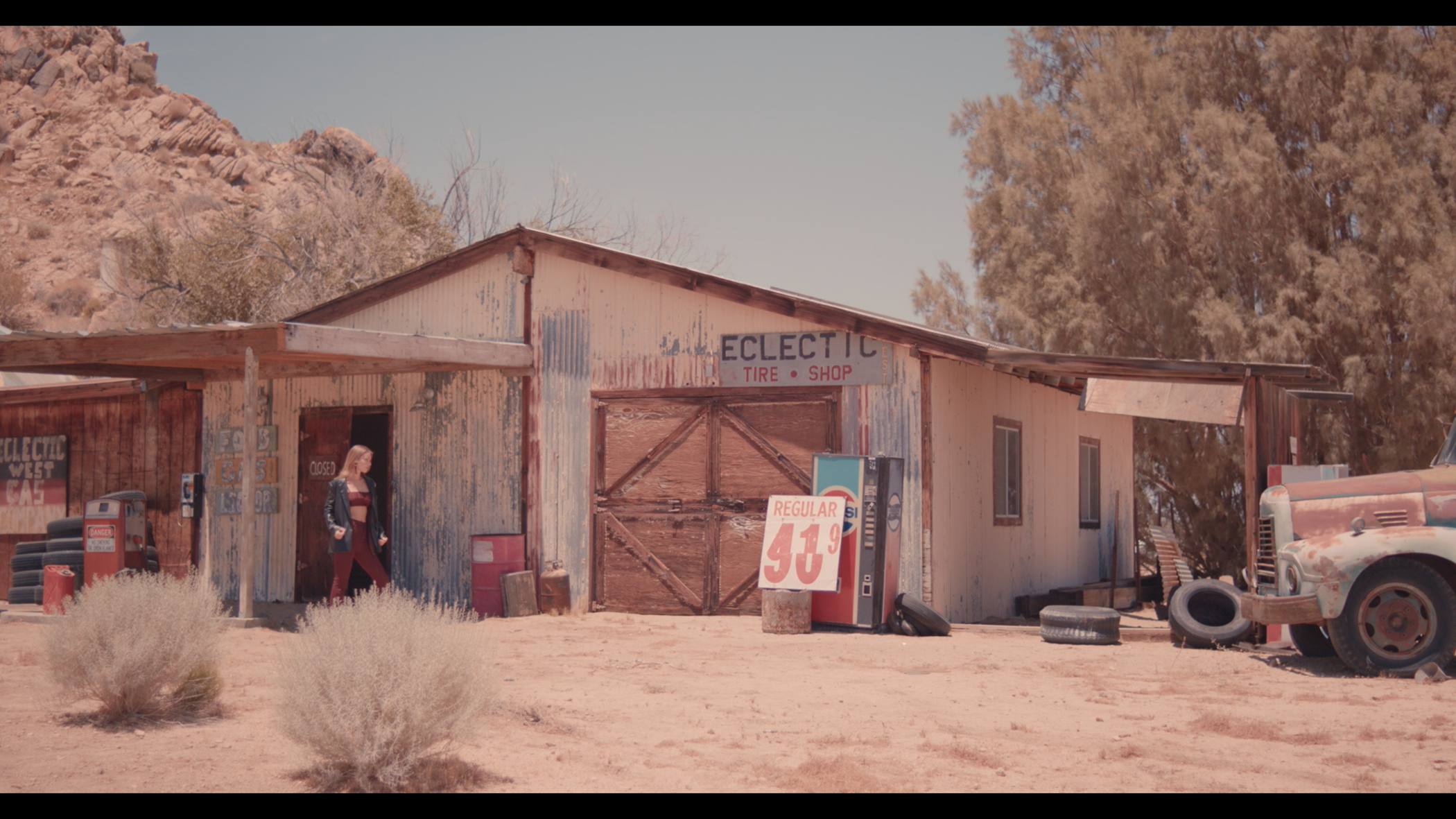

Example of Focus Peaking:

Edge Peaking Mode

The Edge Peaking mode hides the image and only shows the edges. This provides the best visual representation of the subject that is currently in focus.

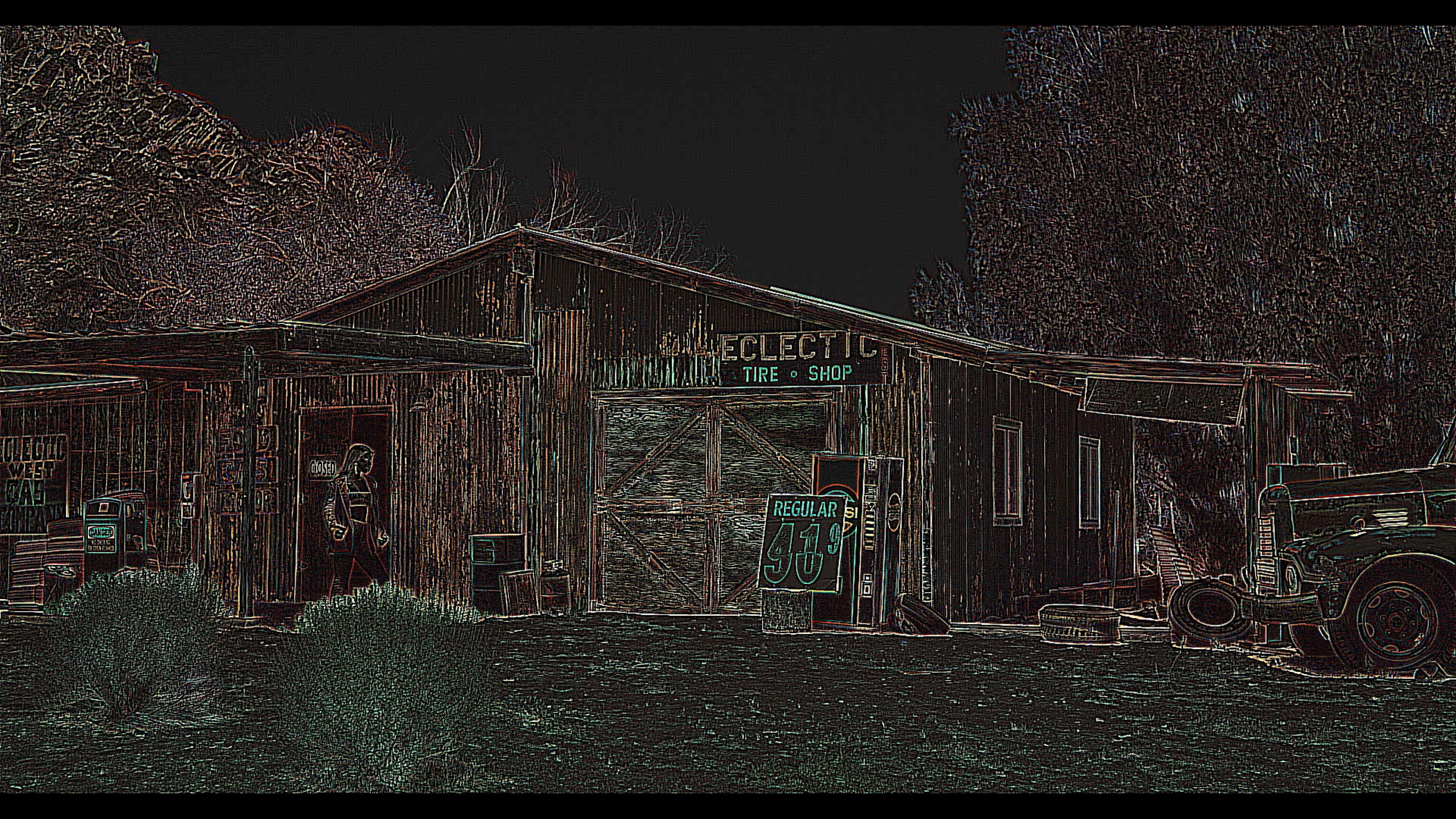

Example of Edge Peaking mode:

Peaking Peaking Mode

The Peaking Peaking mode emphasizes the edges, and it also highlights them by using a selectable color.

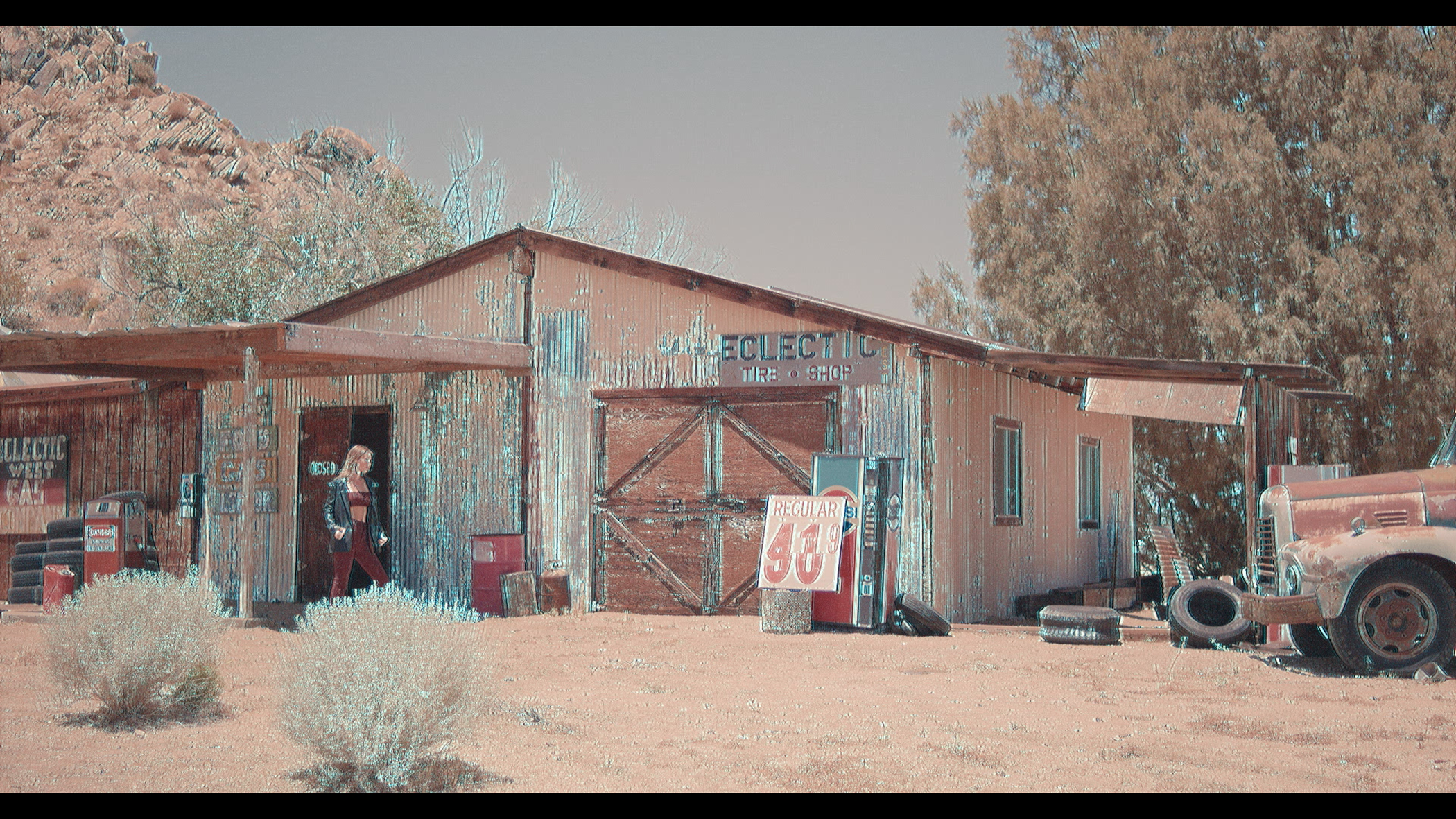

Example of Peaking Peaking mode:
