Secure Format

A secure format is a low-level format that rebuilds the CFexpress card file system. A secure format erases all data on the card.

Perform a secure format when the camera is reporting media-related errors.

Performing a Secure Format

CAUTION: Ensure all data is backed up before formatting a card. Data erased during formatting cannot be recovered.

WARNING: The media can get extremely hot. Use caution when removing media.

To perform a secure format, follow the instructions below:

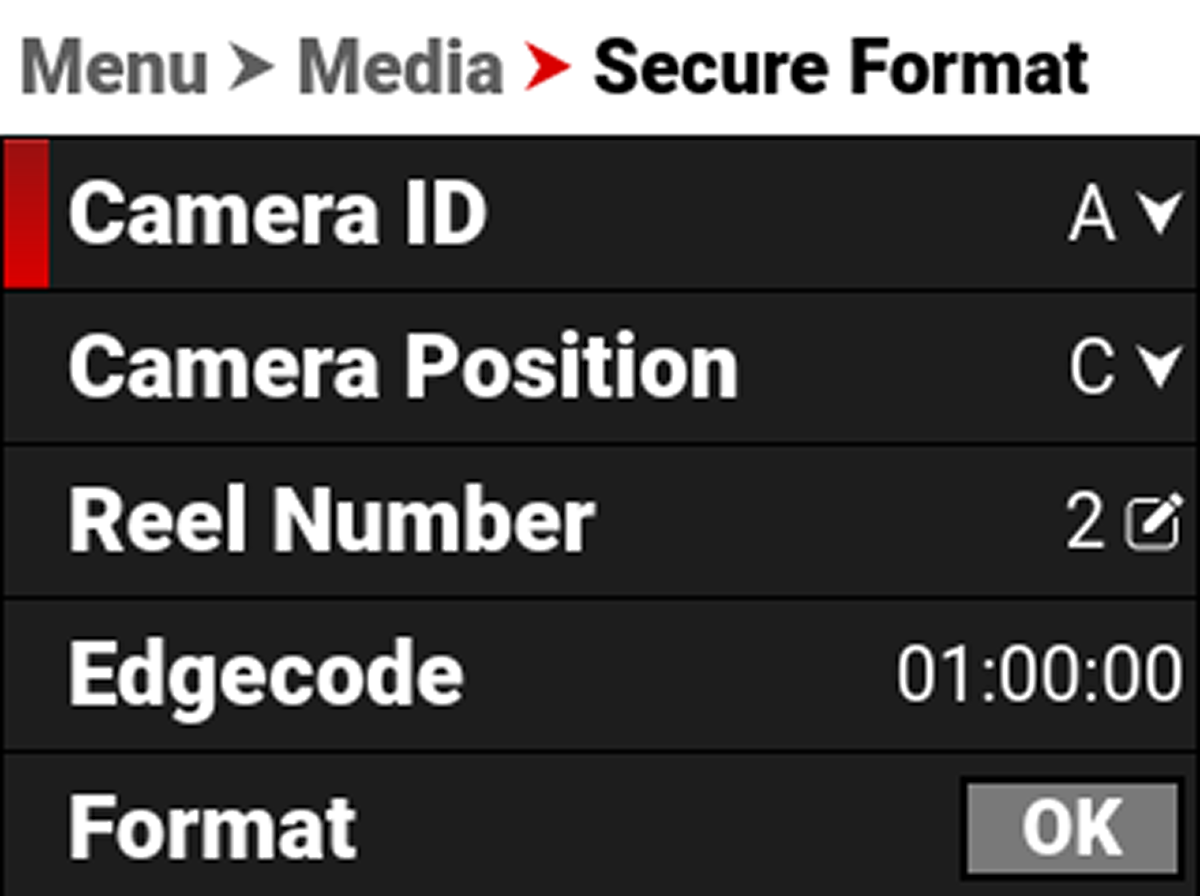

1. Go to Menu > Media > Secure Format:

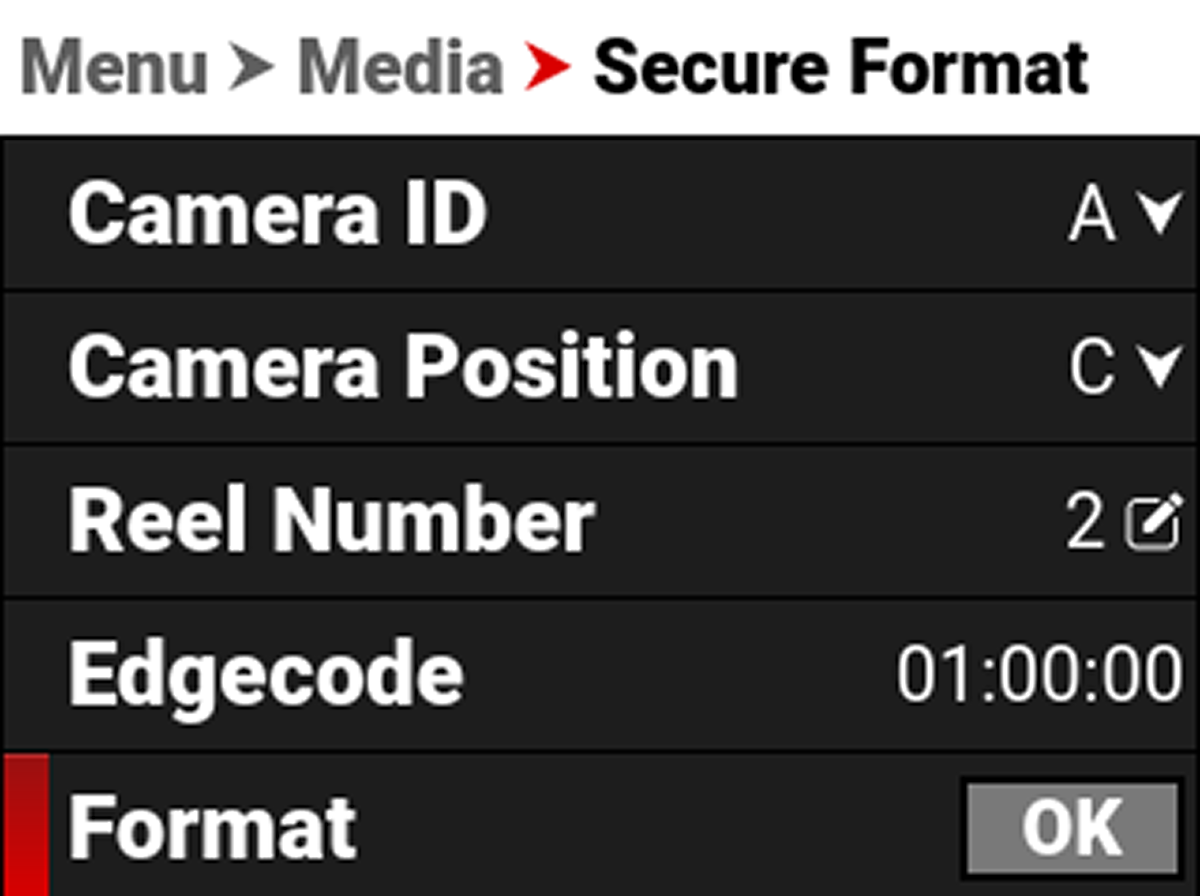

2. From the Secure Format menu, select the desired Camera ID, Camera Position, Reel Number and Edgecode. Navigate down to the Format button and press SEL to start the Secure Format process:

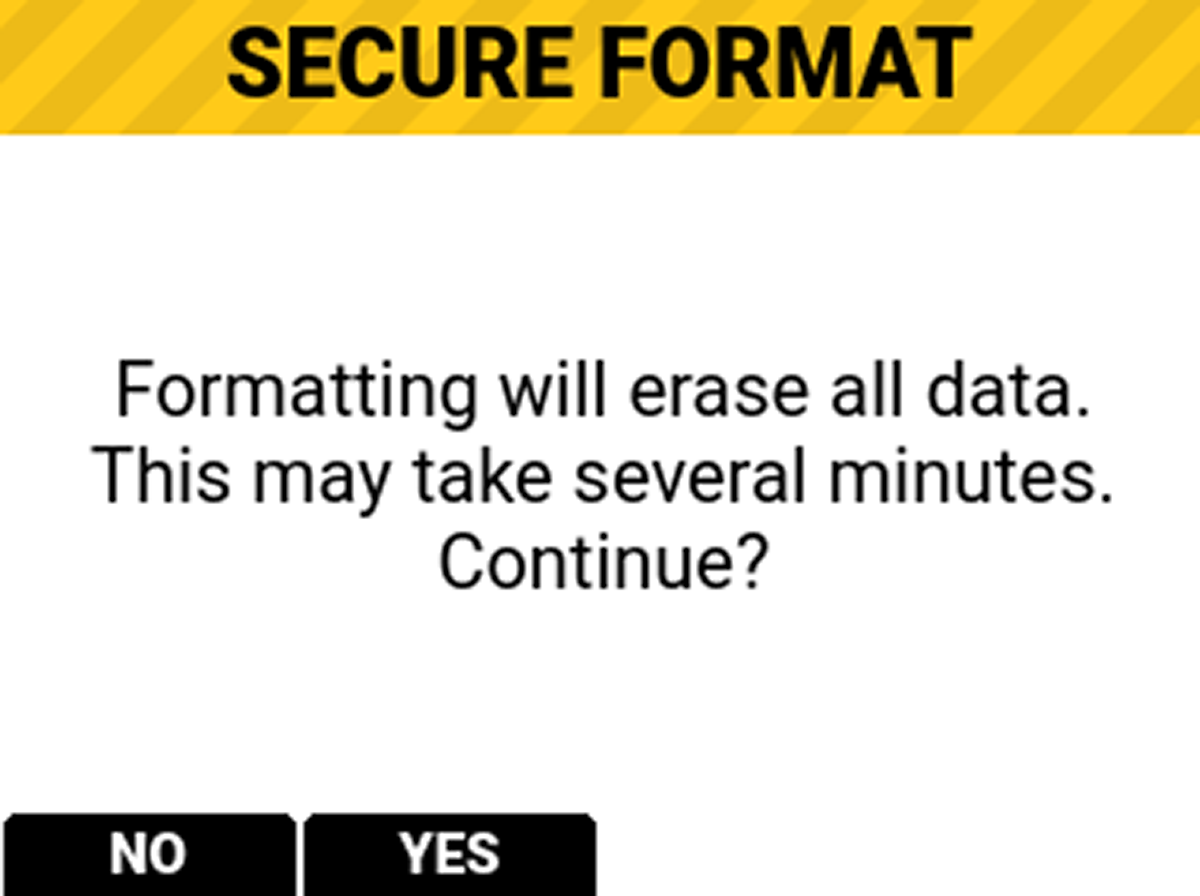

The confirmation message displays:

3. Press the button below YES to begin formatting.



Formatting Media On a Computer

RED recommends that you only use a computer to format your CFexpress media card when you cannot mount the media to the camera. Refer to the Troubleshooting section for more information.
