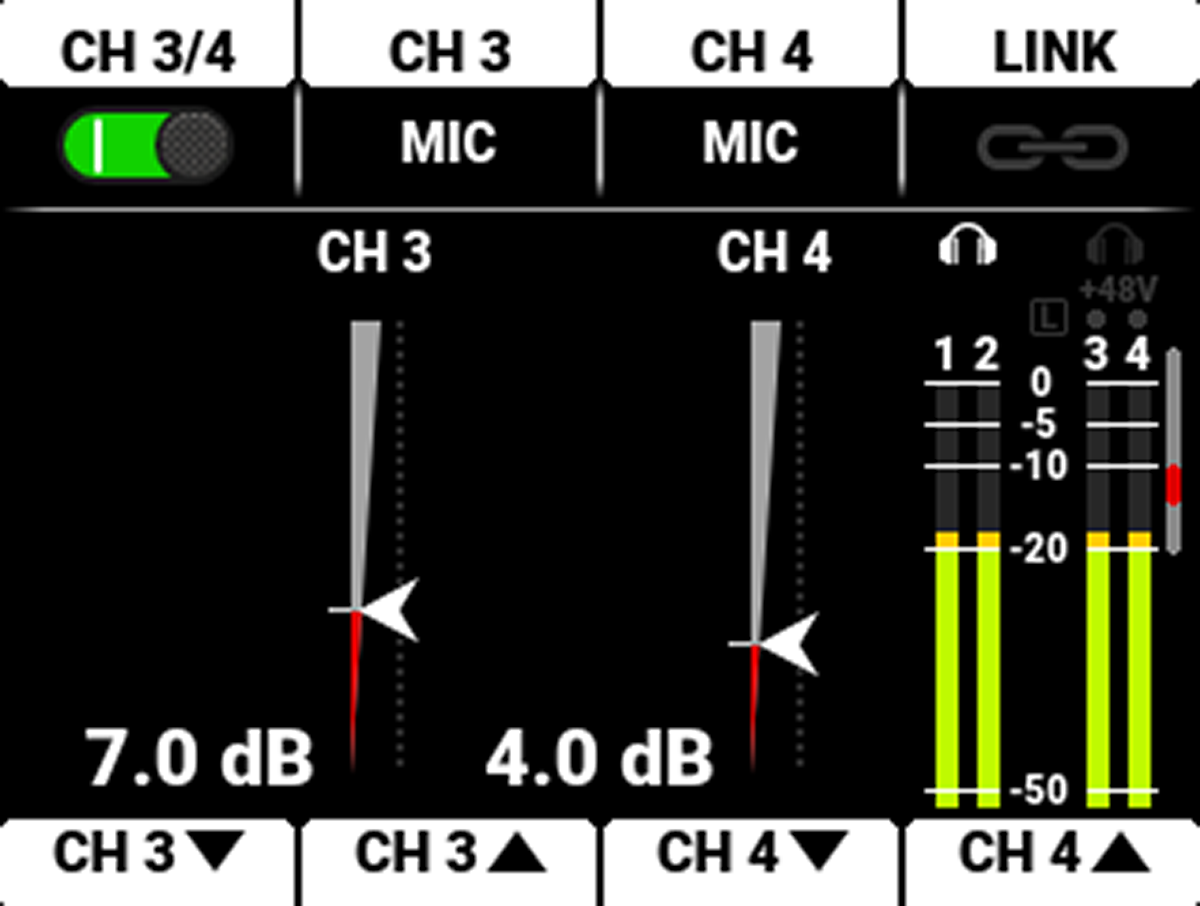

Audio Channels 3 / 4 Page

Press the down button to navigate from the Home page to the Audio Channels 3 and 4 page.

The Audio Channels 3 and 4 page contains a switch to enable the external audio input channels (3 and 4), a button to enable and disable the link between the channel 3 and 4 levels, the audio level indicators, the headphone monitoring indicator, the 48-volt phantom power indicator, the audio VU meters for channels 1, 2, 3, and 4, adjusters to reduce the audio channel 3 and 4 levels, and adjusters to increase the audio channel 3 and 4 levels.

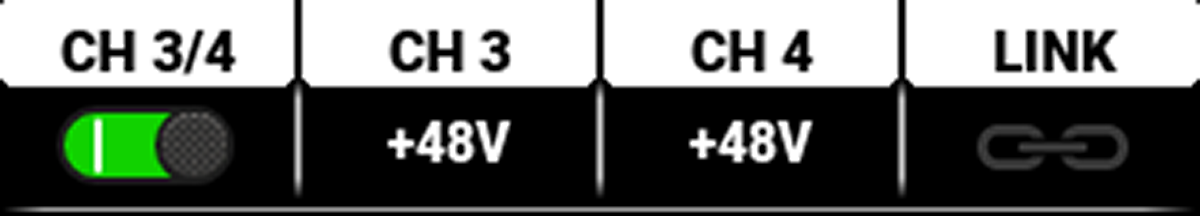

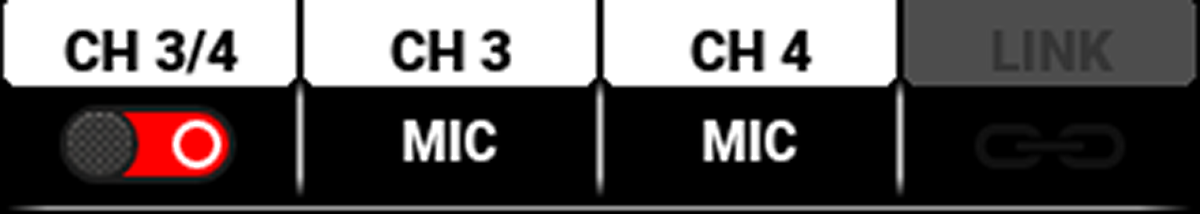

Top Bar

The Audio Channels 3 and 4 top bar allows you to enable the external audio inputs (channels 3 and 4).

  • Press the button above CH 3/4 to enable or disable the external audio

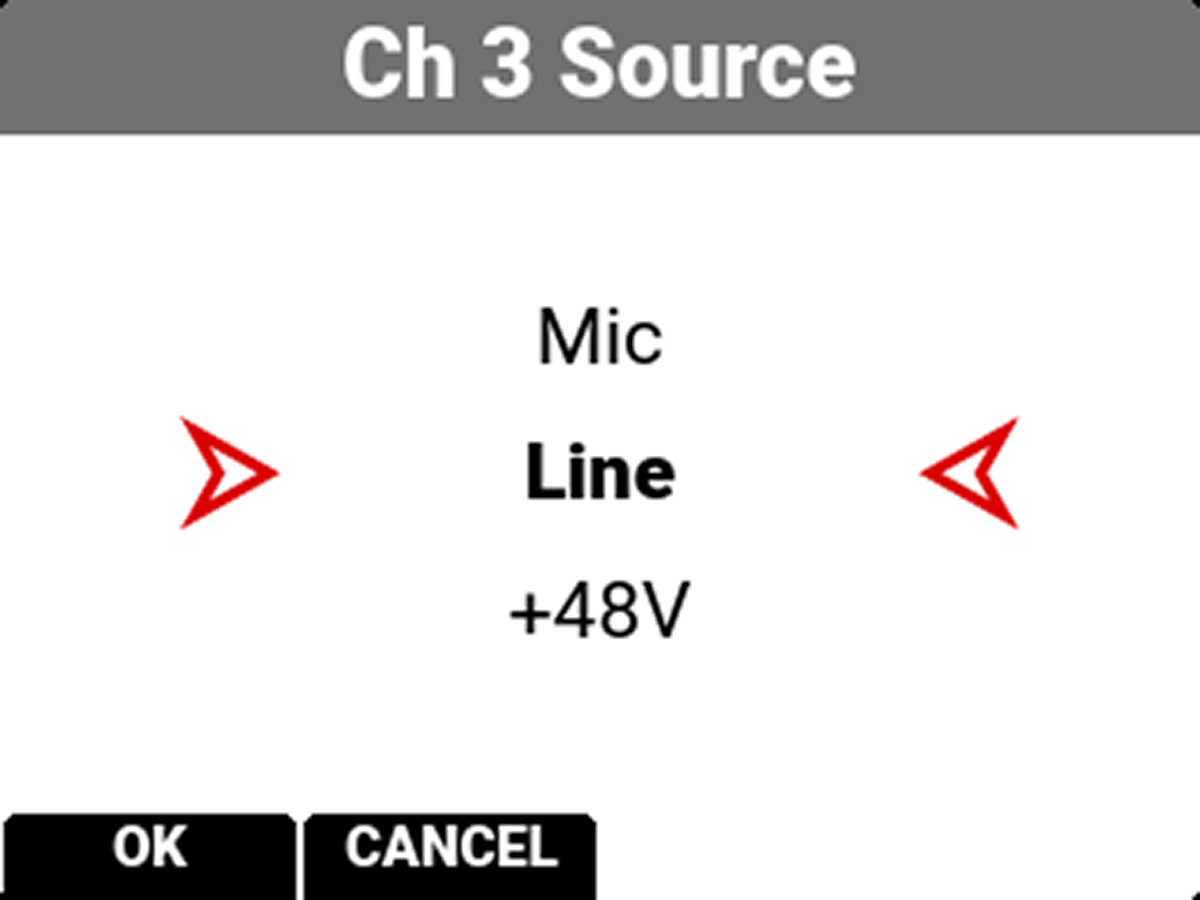

  • Press the button above CH 3 or CH 4 to open a list of external audio options for those channels (Mic, Line, +48V)

  • Press the button above LINK to link the audio level adjustments for channels 3 and 4

Refer to the Audio / TC Menu section for more information about the audio features.

Level Indicators

The audio level indicators move up and down to indicate the changes in the audio level adjustments. The level measured in decibels is displayed below the level indicators. You can adjust channels 3 and 4 individually, or you can link the channels and adjust them together.

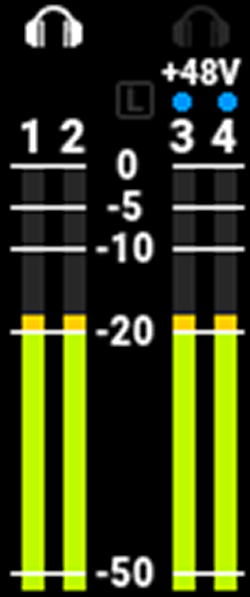

VU Meter

The VU meter displays the headphone indicators, the limiter indicator, the +48 V phantom power indicator, the audio channel numbers, and the audio signal levels.

Bottom Bar

The Audio Channels 3 and 4 bottom bar allows you to adjust the external audio (channels 3 and 4) in 3 dB increments. You can adjust the channels individually or you can link them and adjust them together.

  • Press the buttons below CH 3▼ to reduce the external audio levels (channel 3)

  • Press the buttons below CH 3▲ to increase the external audio levels (channel 3)

  • Press the buttons below CH 4▼ to reduce the external audio levels (channel 4)

  • Press the buttons below CH 4▲ to increase the external audio levels (channel 4)

Refer to the Audio / TC Menu section for more information about the audio features.
