Headphone Page

Press the down button to navigate from the Home page to the Headphone page.

The Headphone page contains the switch to enable the headphone jack, a source list to select the source to monitor (CH 1/2 or CH 3/4), the headphone level indicator, the headphone monitoring indicator, the limiter indicator, the +48 volt phantom power indicator, the audio VU meters for channels 1, 2, 3, and 4, an adjuster to reduce the headphone levels, and an adjuster to increase the headphone levels.

Top Bar

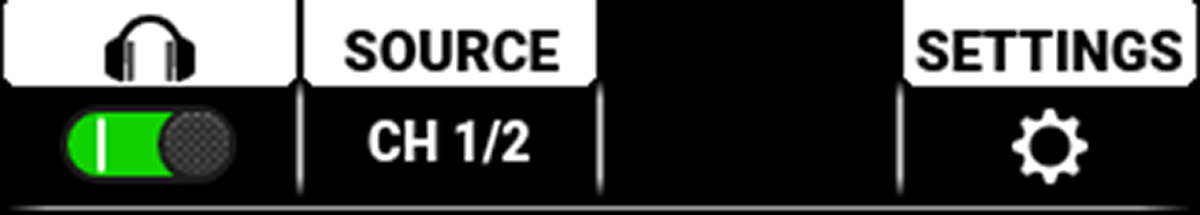

The Headphone top bar allows you to enable/disable the headphone port output, to select the source of the headphone output (internal channels 1 and 2 or external channels 3 and 4), and to quickly access the Audio /TC menu.

  • Press the button above the headphone icon to enable or disable the headphone audio

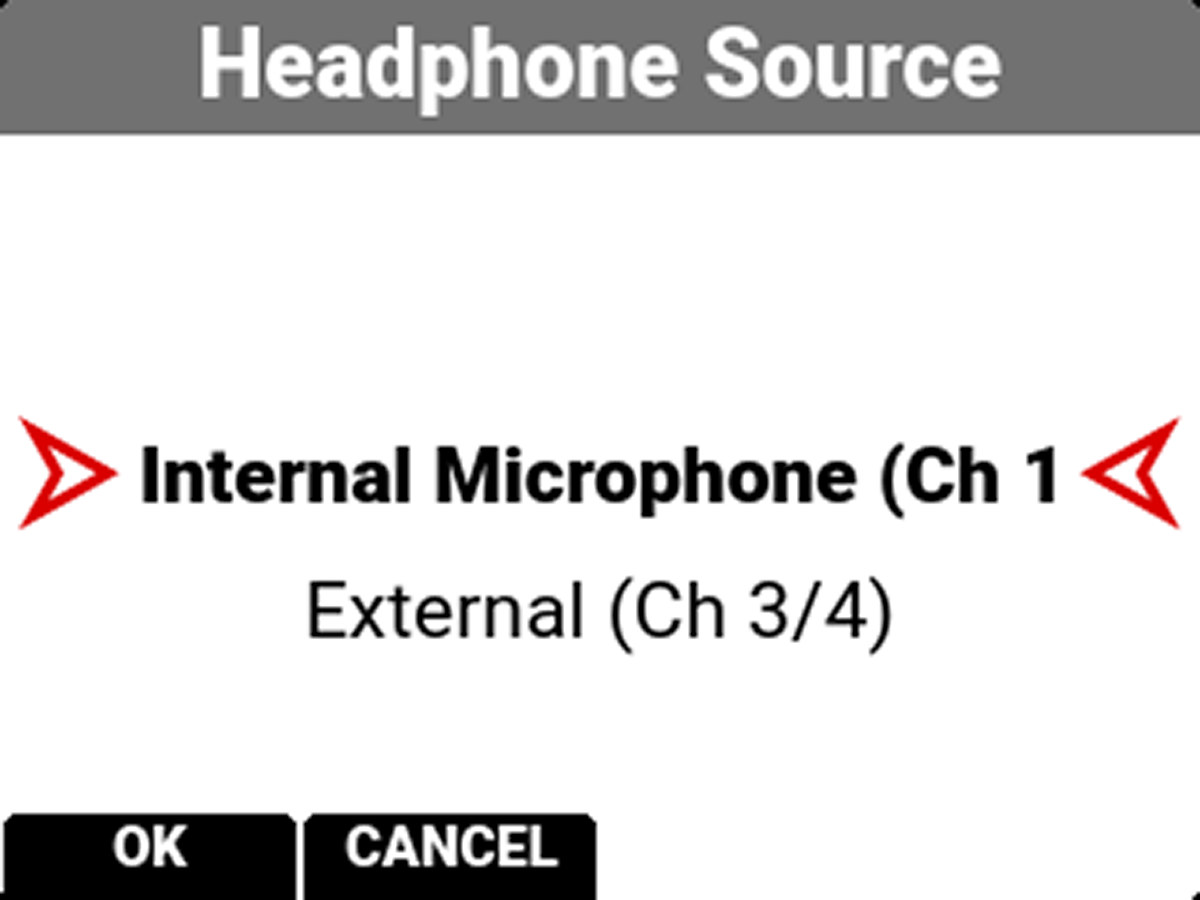

  • Press the button above SOURCE to open the list of channels to monitor (Ch 1/2 or Ch 3/4)

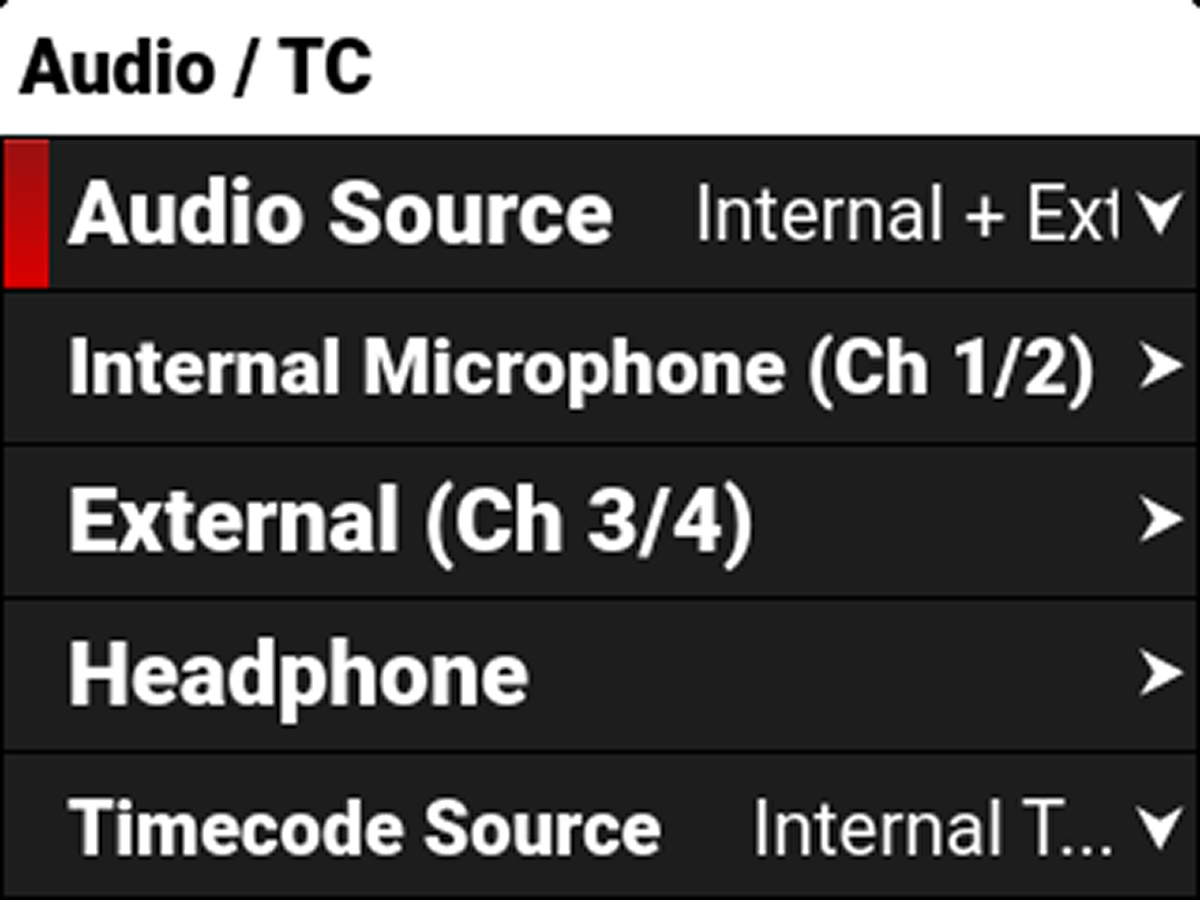

  • Press the button above SETTINGS to open the Audio / TC menu

Refer to the Audio / TC Menu section for more information about the audio features.

Level Indicator

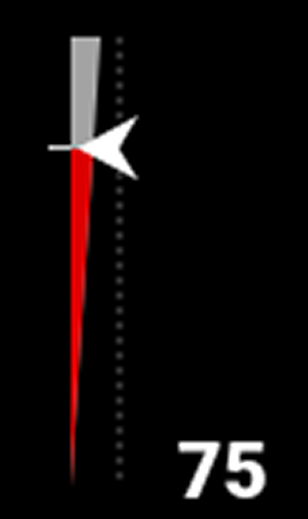

The audio level indicator moves up and down to indicate the changes in the headphone level adjustments. The level measured in decibels is displayed below the level indicator.

VU Meter

The VU meter displays the headphone indicators, the limiter indicator, the +48 V phantom power indicator, the audio channel numbers, and the audio signal levels.

Bottom Bar

The headphone bottom bar allows you to adjust the headphone volume.

  • Press the button below VOL▼ to reduce the headphone volume

  • Press the button below VOL▲ to increase the headphone volume

Refer to the Audio / TC Menu section for more information about the headphone features.
