Inserting Media

The camera contains a covered compartment on the left side where you insert the CFexpress media card.

WARNING: Do not attach a label to the CFexpress media card. The heat generated by the media can weaken the label's adhesive, causing the label to detach inside of the camera. Labels can also diminish heat dissipation and cause excessive wear to the internal components. Removing a label from a CFexpress media card can deform the card body.

Inserting the CFexpress media card

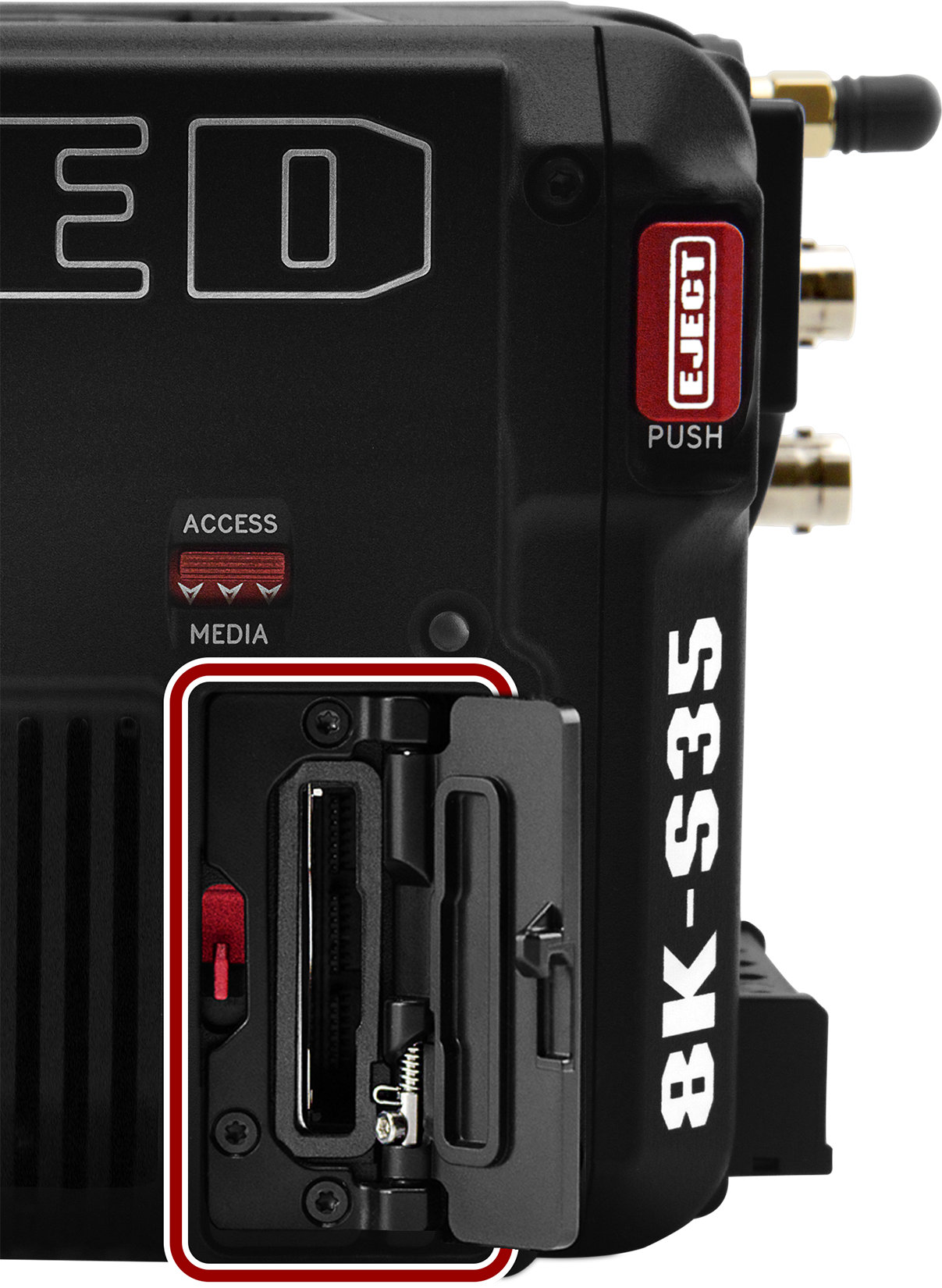

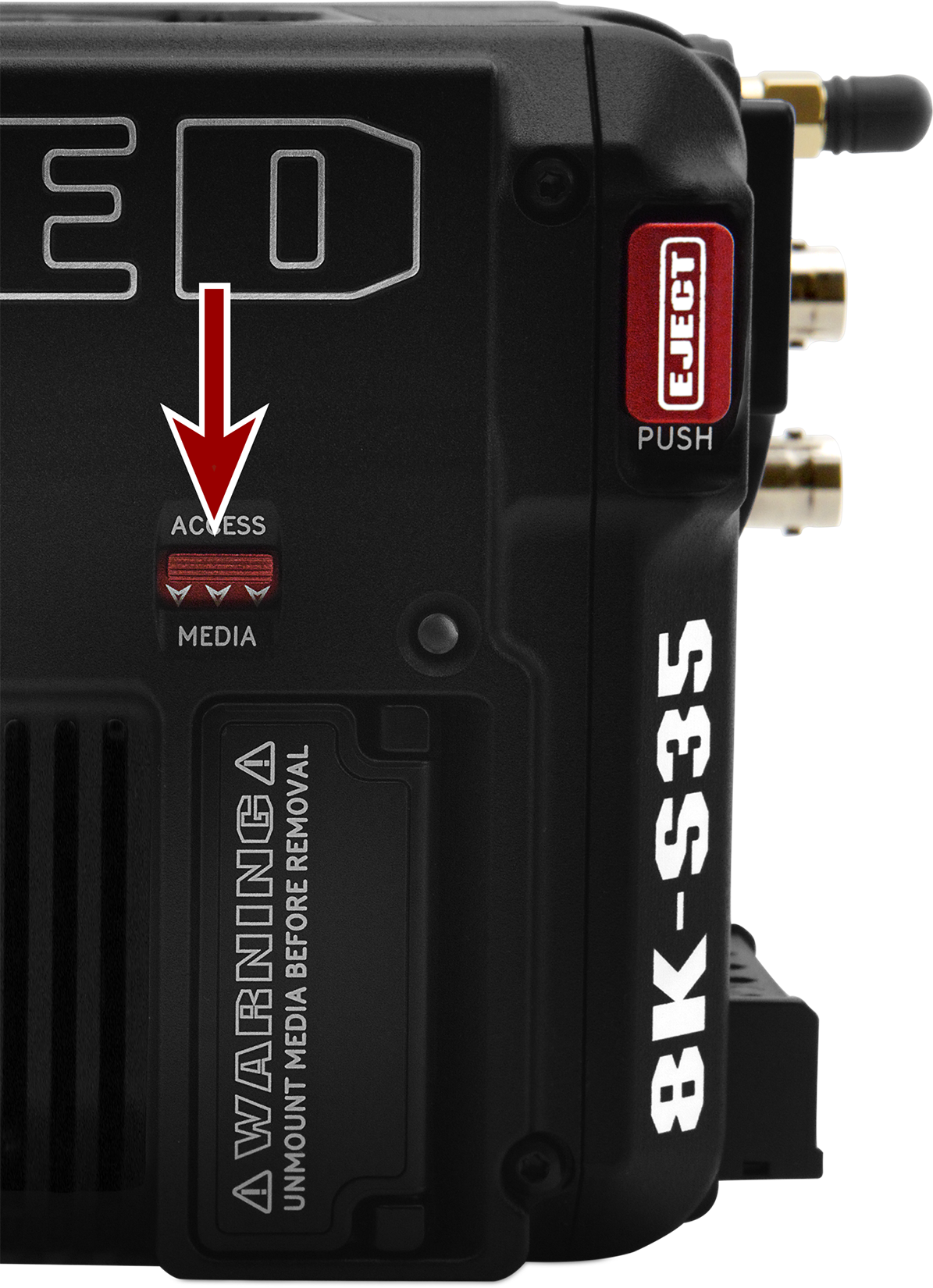

  1. Press the media door access latch down, and open the media door.

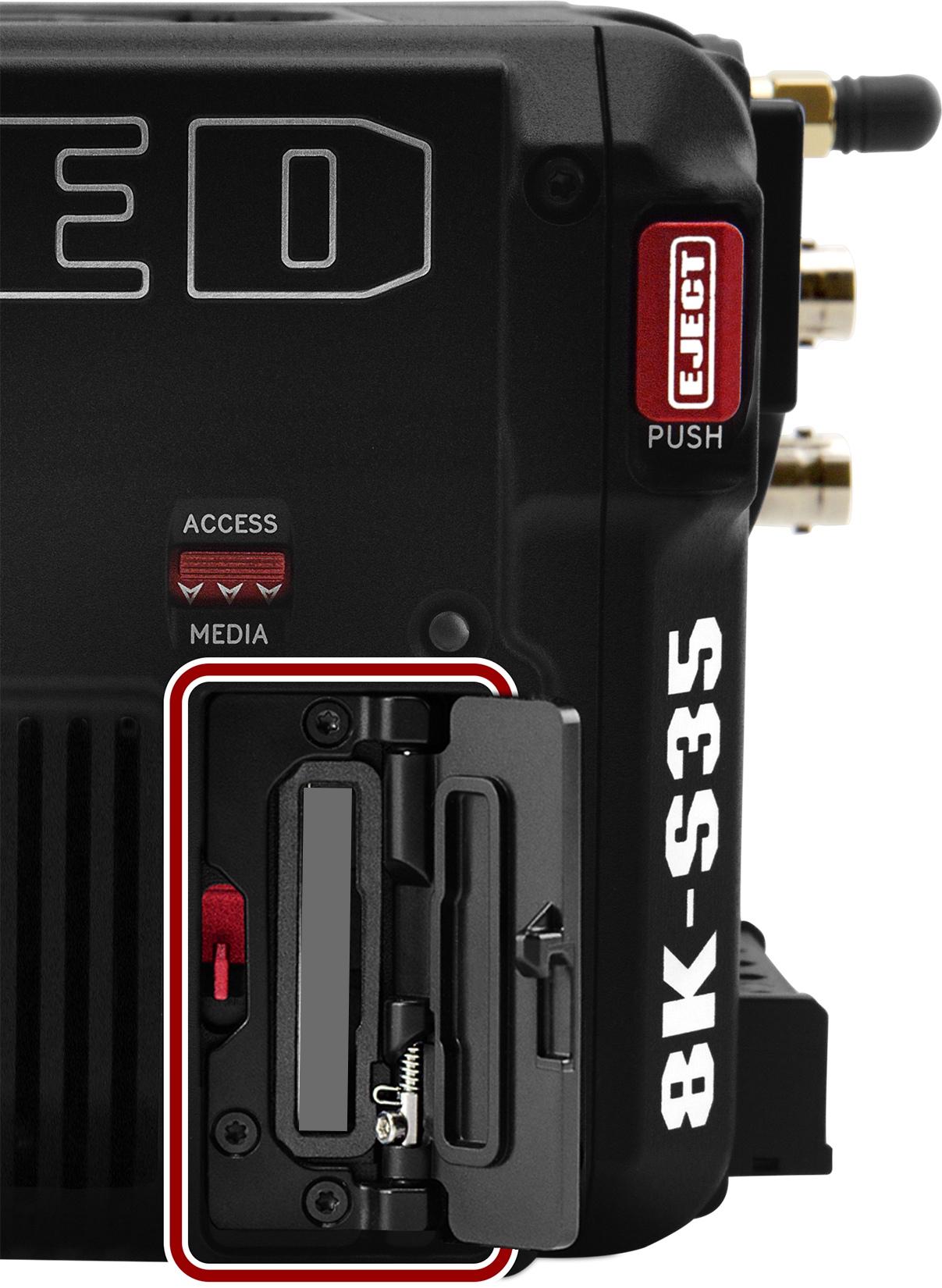

  1. Insert the CFexpress media card in the slot with the top of the card facing toward the front of the camera. Insert the card until the lock clicks.

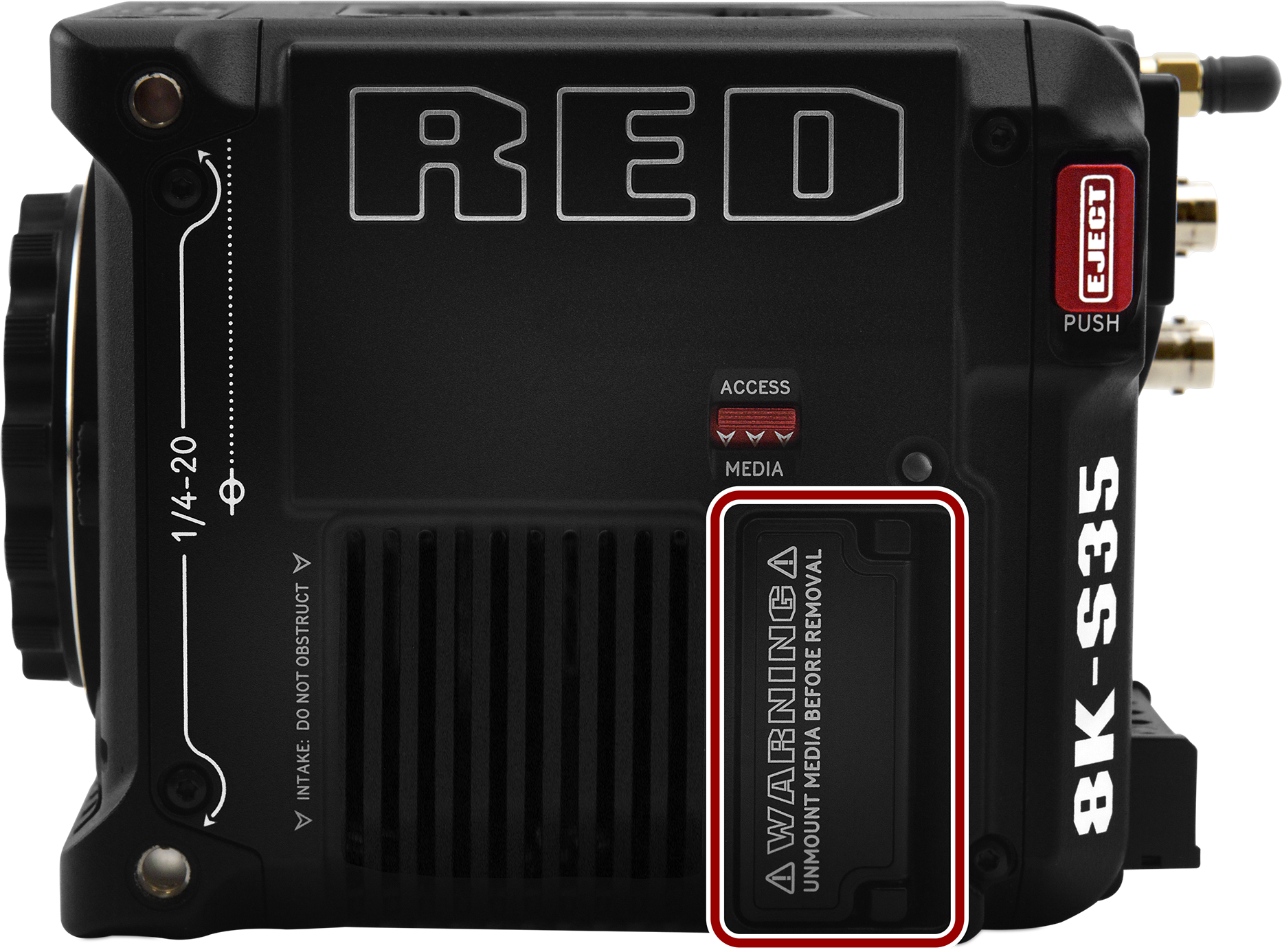

  2. Close the media door and make sure that the door latch clicks.
  3. If needed, format the CFexpress media card. Refer to Secure Format for more information.

Removing the CFexpress media card

NOTE: Do not remove the CFexpress card without first ejecting using the Media Menu. Refer to Media Management for more information.

WARNING: The media can get extremely hot. Use caution when removing media.

  1. If the camera is on, go to Menu > Media and select Eject. Optionally, press and hold the button under MEDIA on the bottom of the LCD Home page to quickly eject the media (refer to Home Page).
  2. Press the media door access latch down and open the media door.

  1. Press the CFexpress media card until the lock release clicks. The card will spring out slightly.

  1. Let the CFexpress media card cool before gently pulling the card out of the slot.

WARNING: The media can get extremely hot. Use caution when removing media.

  1. Close the media door and make sure that the door latch clicks.
