CDL Offset

The CDL Offset settings control the offset of the RGB color data.

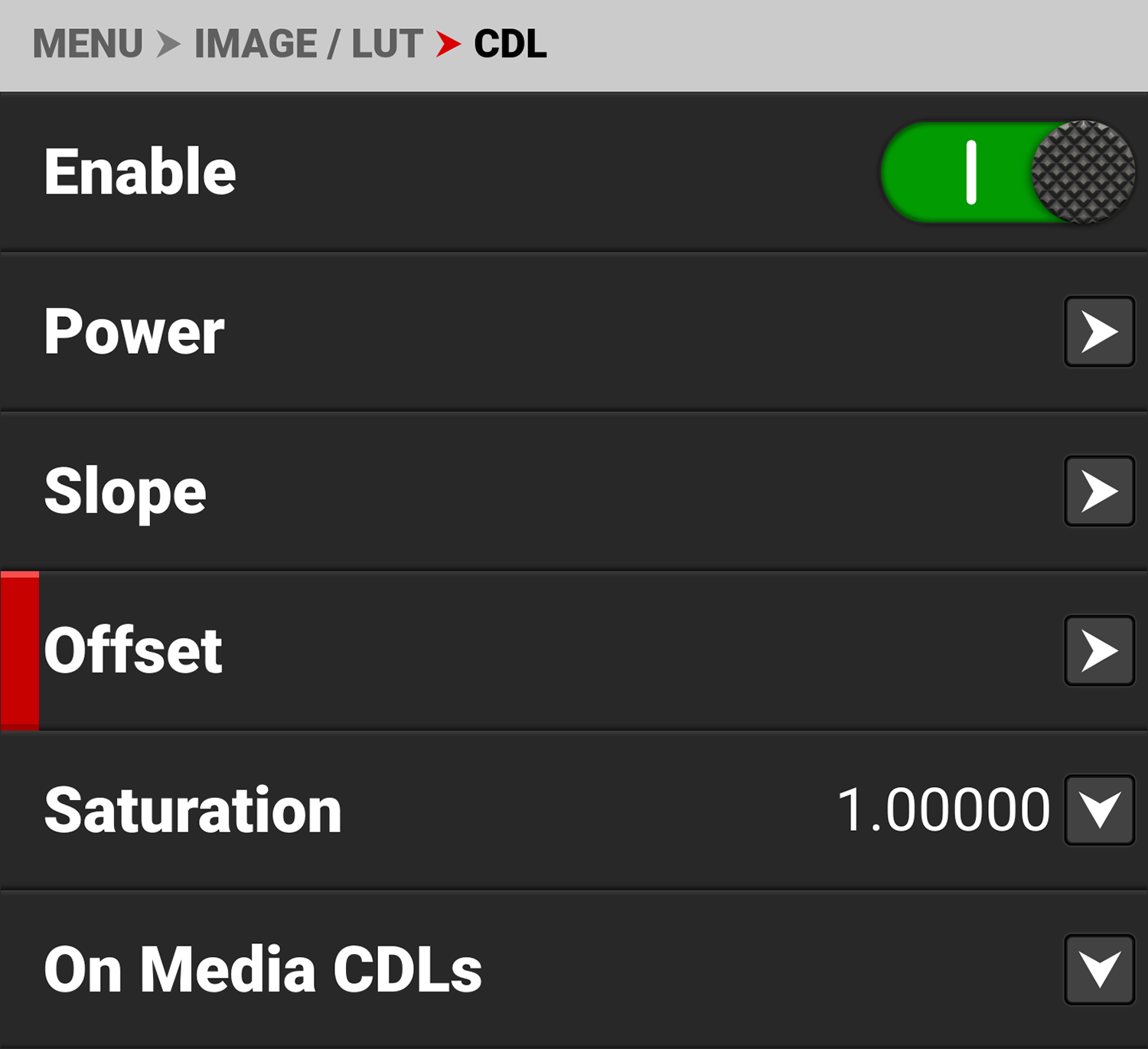

The Camera LCD Menu for CDL Offset:

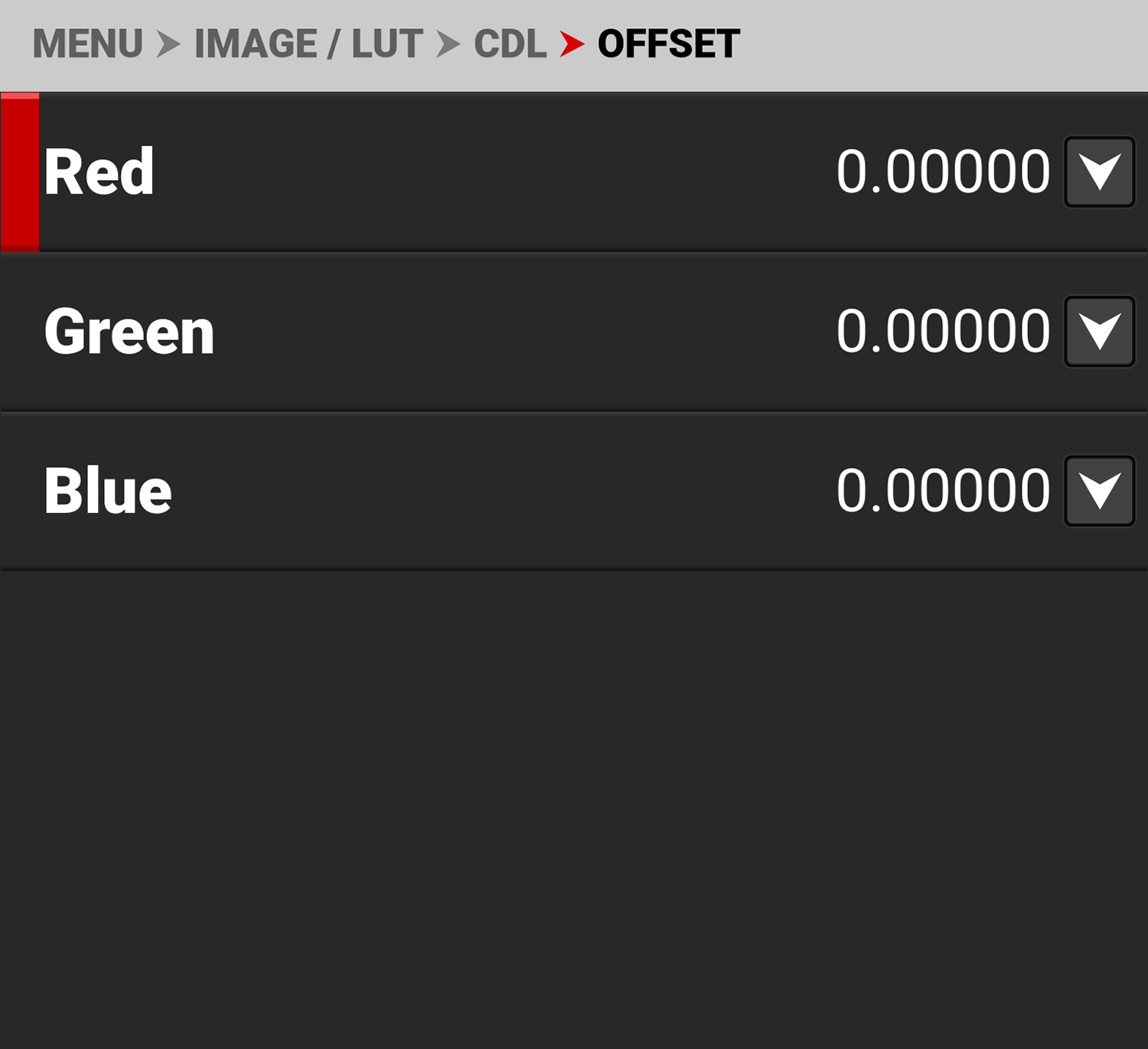

Use the CDL Offset menu to adjust the offset of the CDL Slope for the Red, Green, and Blue CDL data.

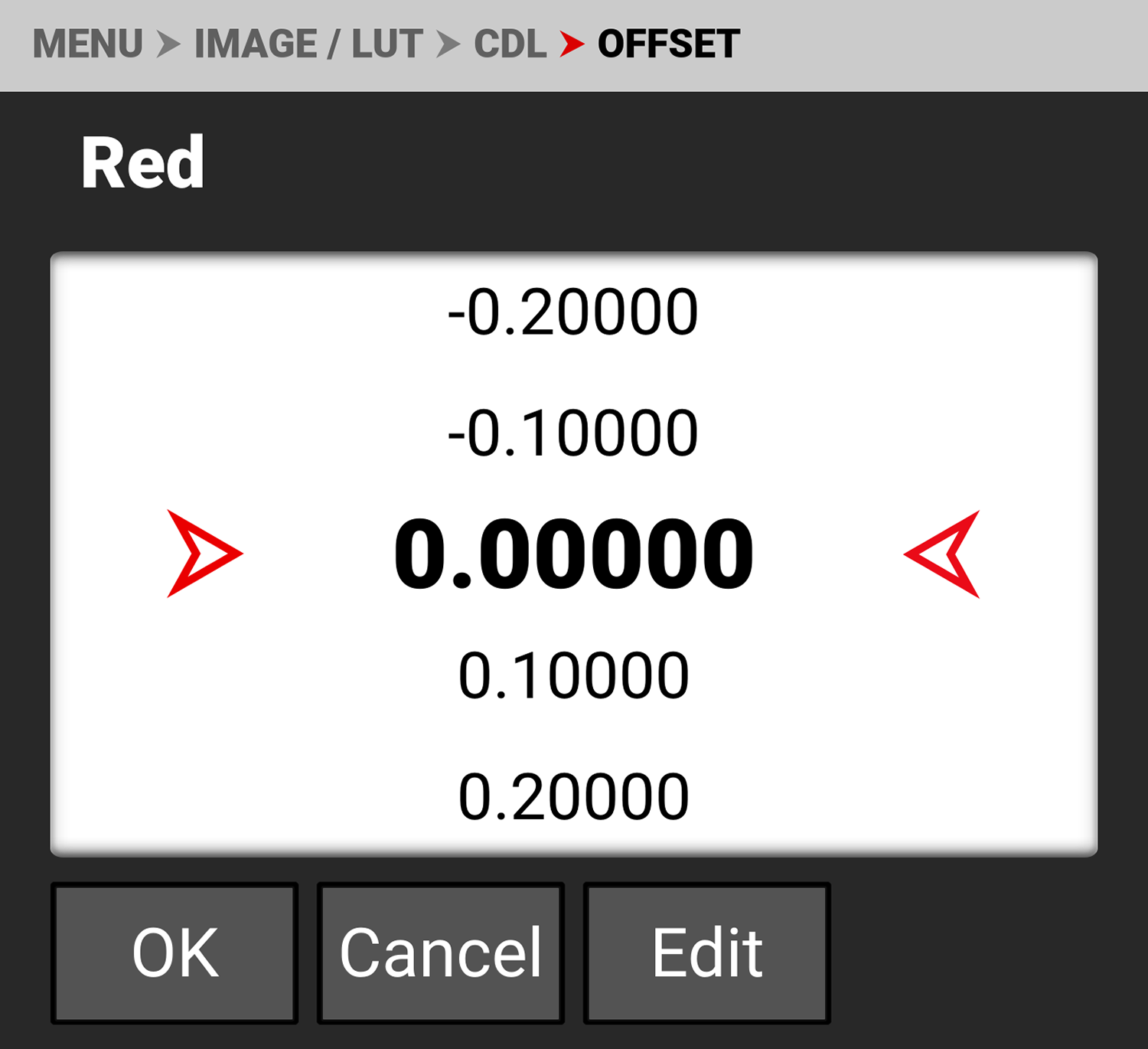

Red Green and Blue Offsets

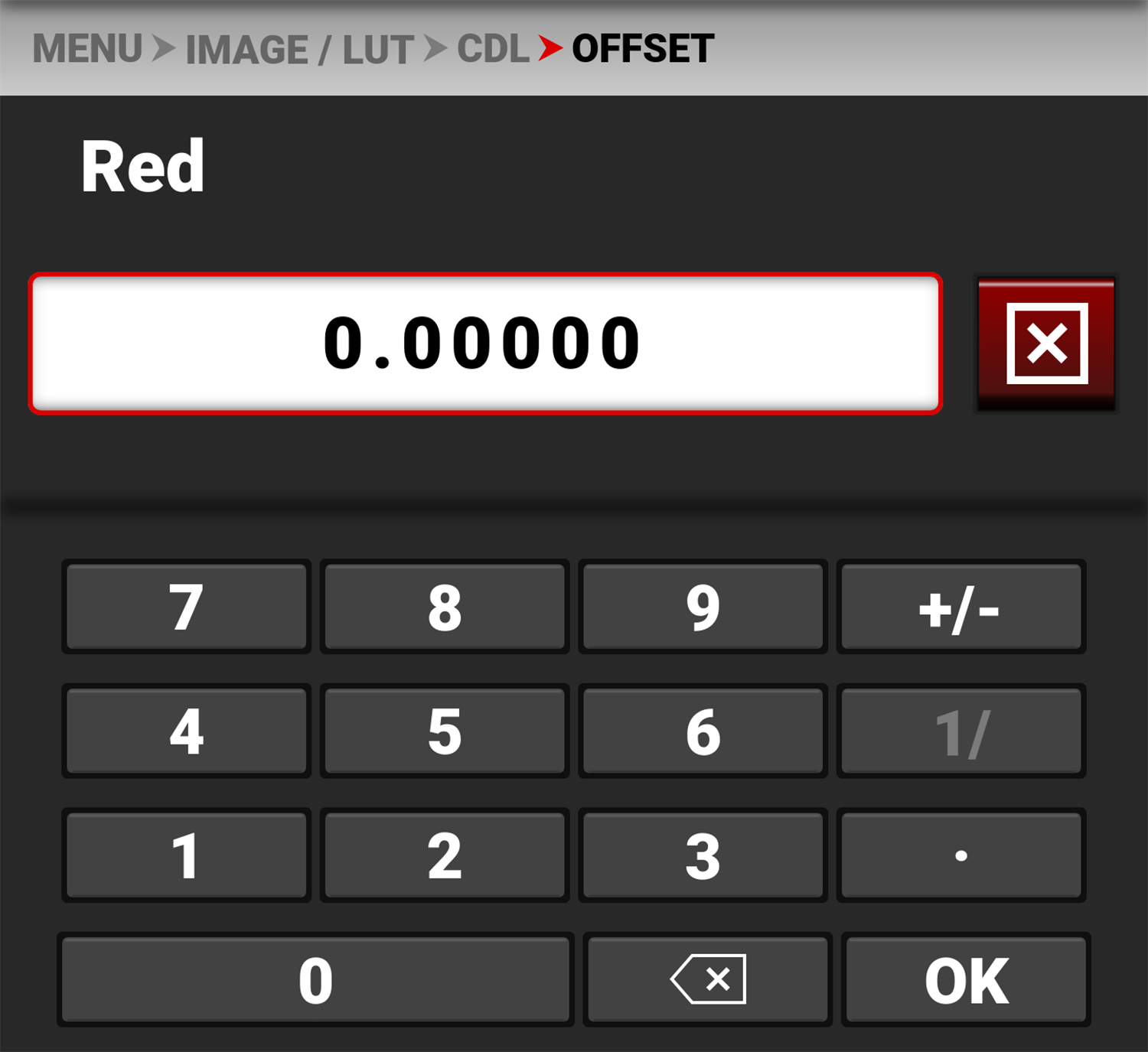

These CDL Offset settings range from -1.00000 to 1.00000. The default CDL Offset setting for each is 0.00000. The Edit button opens the keypad, where you can enter a specific CDL Offset value.
