Shutter

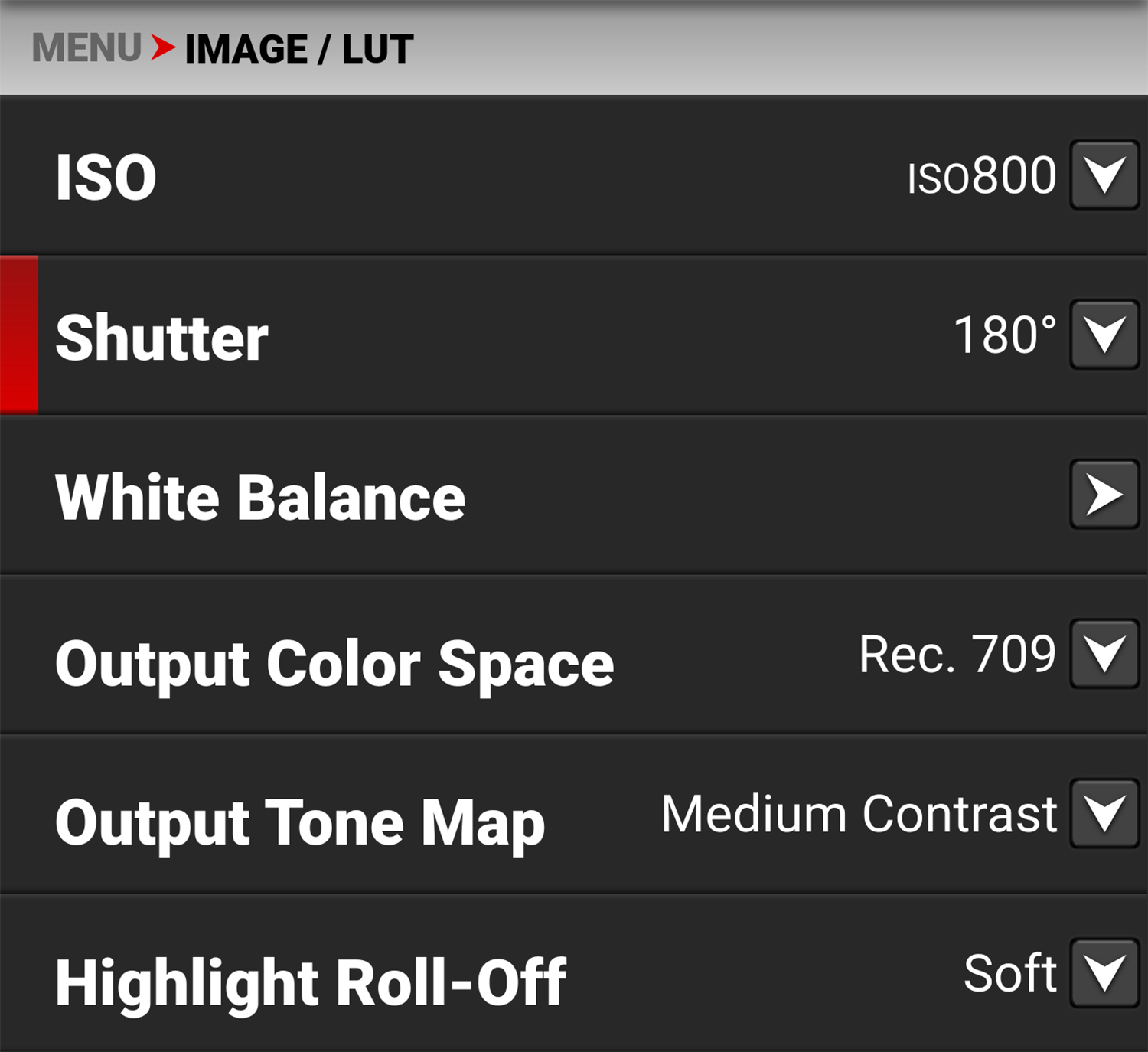

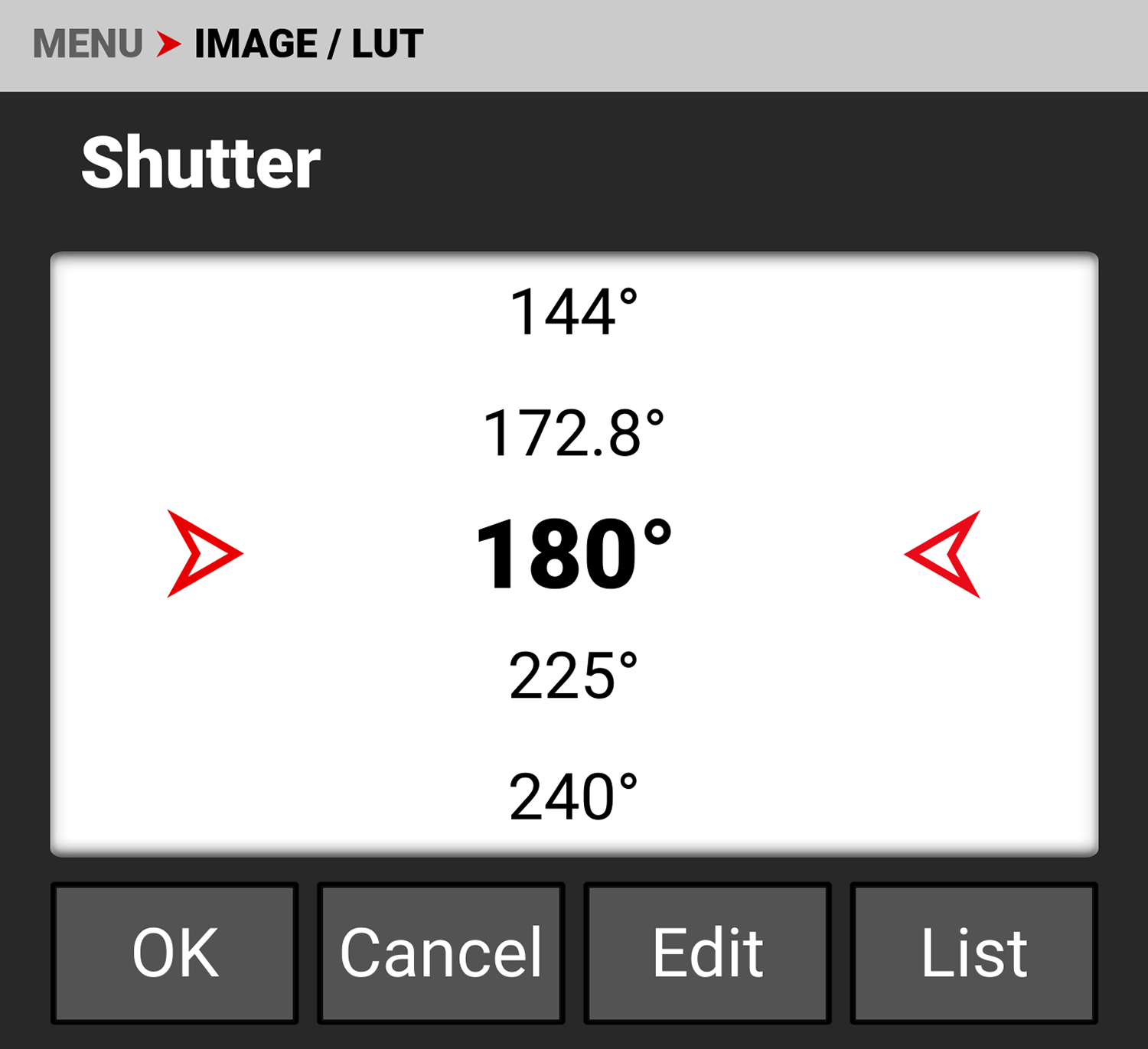

Use Shutter to select the exposure time (shutter speed / shutter angle). The camera allows you to change the shutter settings while recording.
You can switch between Angle and Time settings by holding down the Onboard LCD Shutter quick setting button on the main menu, or by changing the Shutter Display mode in the Status Settings menu.
|

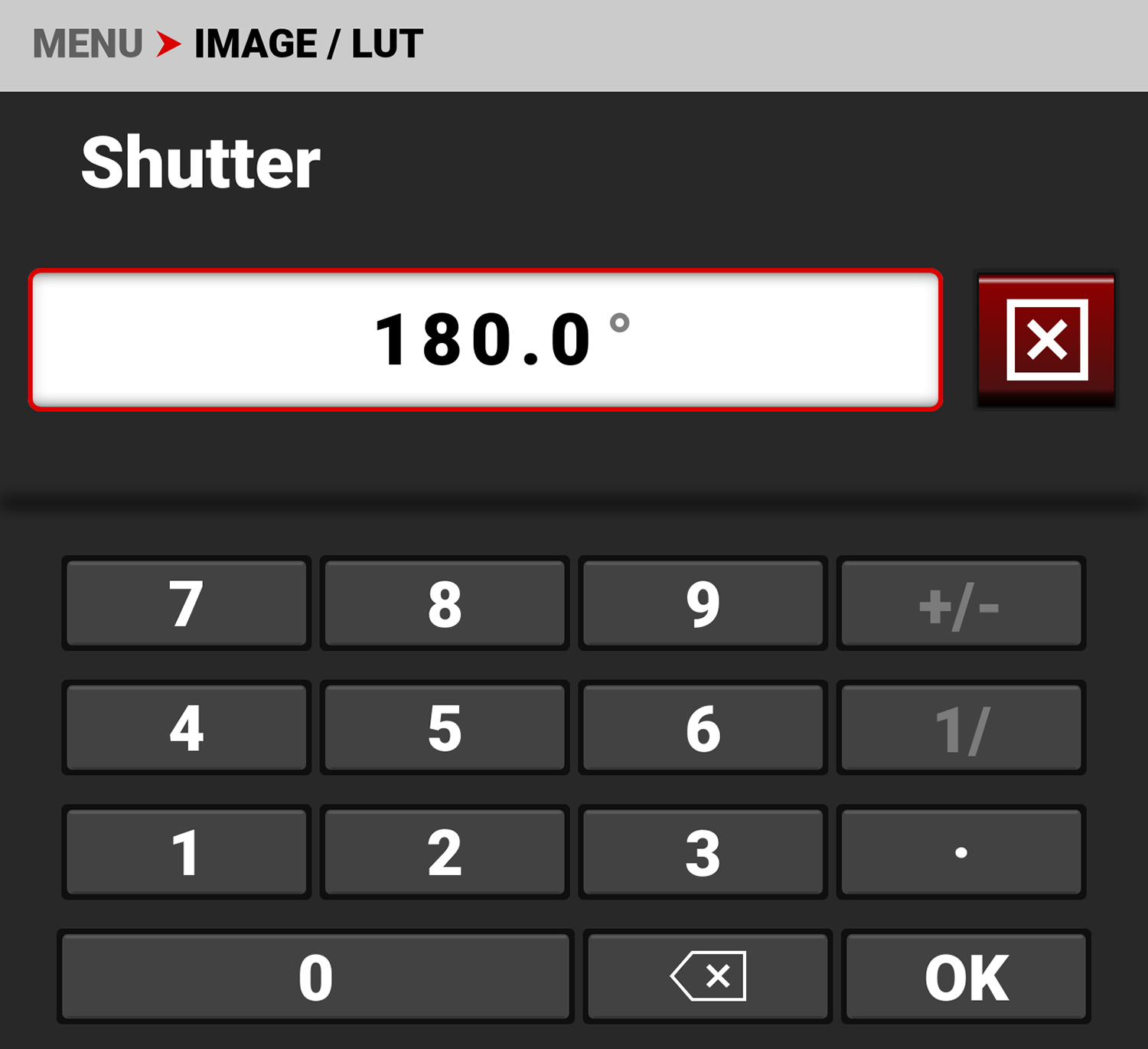

You can tap Edit to change the Shutter menu values manually. |

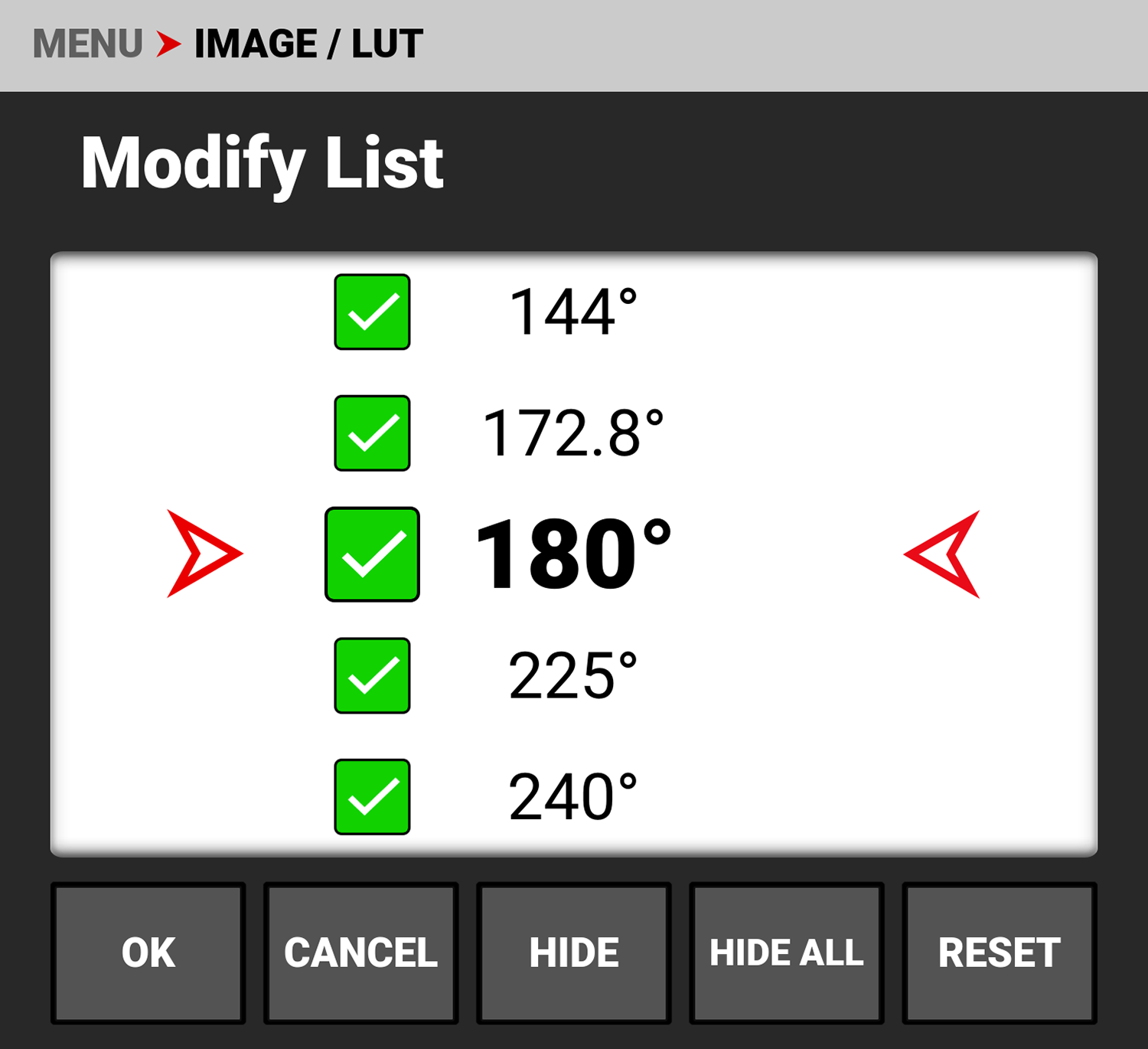

You can tap List to choose which values you want to display on the menu list. |
|
|
|
Shutter Angle
Enter the exposure value as a shutter angle (xx°). The shutter angle range is 1° to 360°. The default shutter angle is 180°. Click Edit to enter an exact shutter angle or shutter speed.
Exposure Conversions
The table below lists common shutter angle and shutter speed equivalents. The calculations in the table use a recording frame rate of 23.98 fps.
|
Shutter Angle (°) |
Shutter Speed (1/xx sec) |
|
Shutter Angle (°) |
Shutter Speed (1/xx sec) |
|---|---|---|---|---|
|
360˚ |
1/23.98 |
|
105˚ |
1/82.20 |
|
288˚ |
1/29.97 |
|
90˚ |
1/95.90 |
|
270˚ |
1/31.97 |
|
72˚ |
1/119.88 |
|
240˚ |
1/35.96 |
|
45˚ |
1/191.81 |
|
225˚ |
1/38.36 |
|
22.5˚ |
1/383.62 |
|
180˚ |
1/47.95 |
|
11.2˚ |
1/770.66 |
|
172.8˚ |
1/49.95 |
|
8.6˚ |
1/1003.65 |
|
144˚ |
1/59.94 |
|
4˚ |
1/2157.84 |
|
135˚ |
1/63.95 |
|
1˚ |
1/8000 (max) |
|
120˚ |
1/71.93 |
|
|
|
Shutter Speed
Enter the exposure value as a shutter speed (1/xx sec).
The slowest shutter speed is 1/(recording frame rate). For example, if the recording frame rate is 23.98 fps, the slowest available shutter speed is 1/23.98 sec. The slowest available shutter speed in the camera is 1/5.99 sec when the recording frame rate is set to 5.99 fps. The fastest shutter speed is 1/8000 sec. The default shutter speed is 1/47.95 sec.
Convert Shutter Speed to Shutter Angle
Shutter Angle = (Shutter Speed x Frame Rate x 360)
Example: (1/47.95 x 23.98 x 360) = 180
Convert Shutter Angle to Shutter Speed
Shutter Speed = 1/(Frame Rate x 360/Angle)
Example: 1/(23.98 x 360/180) = 1/47.95
