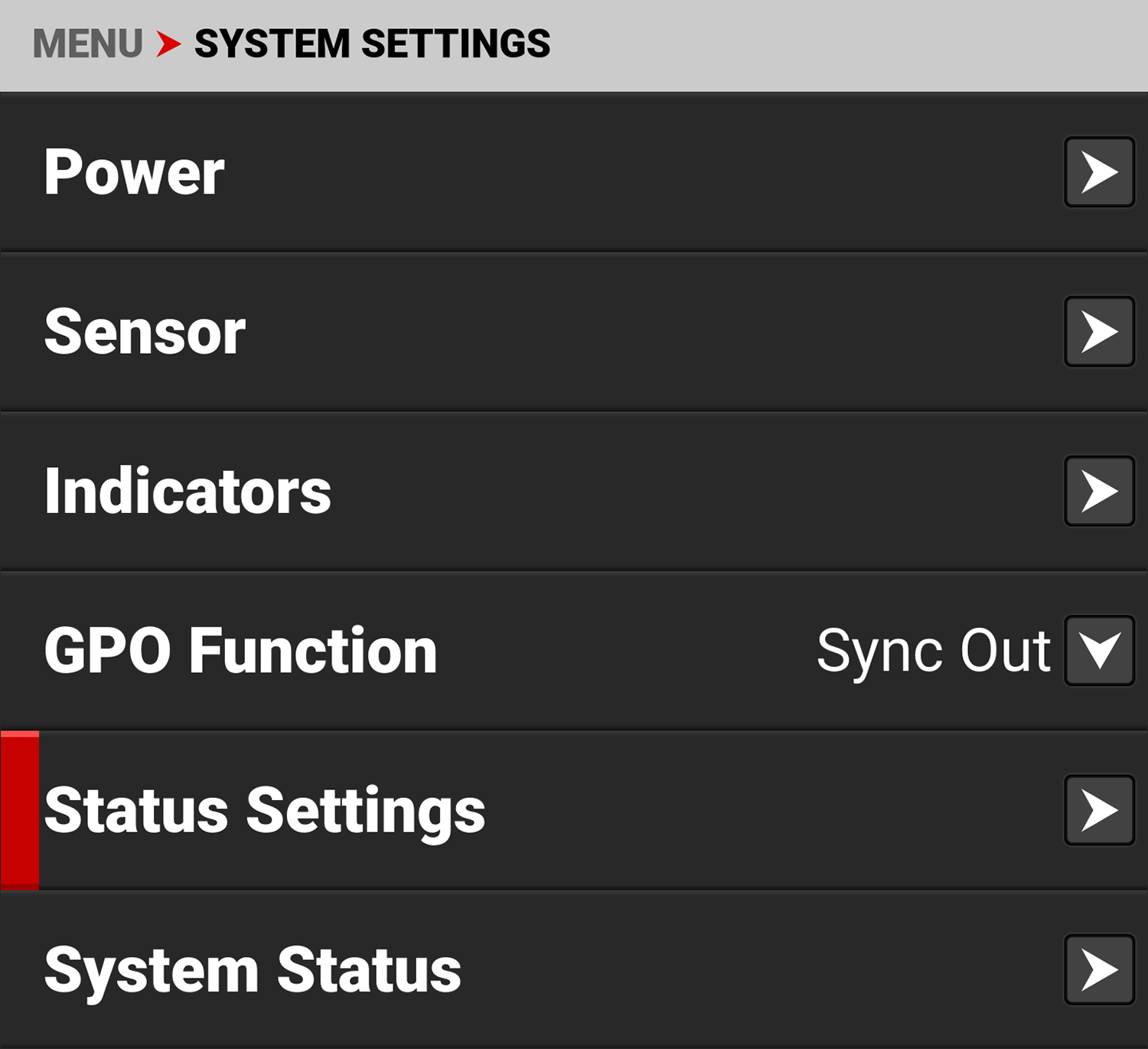

Status Settings

Use the Status Settings menu to select the shutter display mode, aperture increment, and focus distance units displayed in the camera's menus.

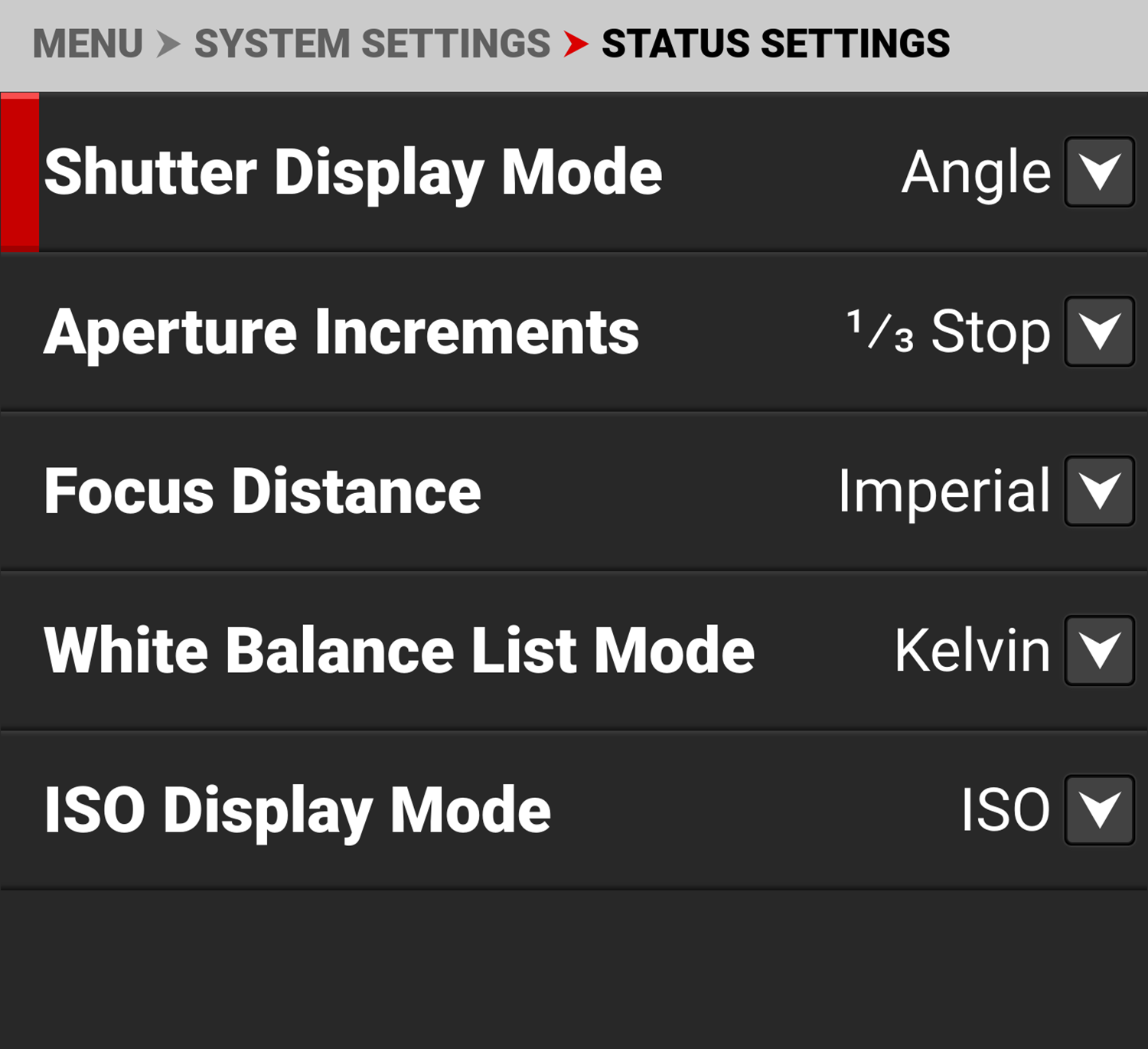

The Status Settings that you can configure include:

Items



Details

Shutter Display Mode



Select a time-fraction or an angle for the shutter menu display unit

Aperture Increments



Select 1/4 or 1/3 f-stop increments

Focus Distance



Select the focus distance units (Metric or Imperial)

White Balance List Mode



Select Kelvin or White Balance Presets

ND Display Mode



When attached, select ND filter Stops or Density display modes

ND Increments



When attached, select the ND increment size

ISO Display Mode



Display ISO or Gain in the Image / LUT menu

Shutter Display Mode

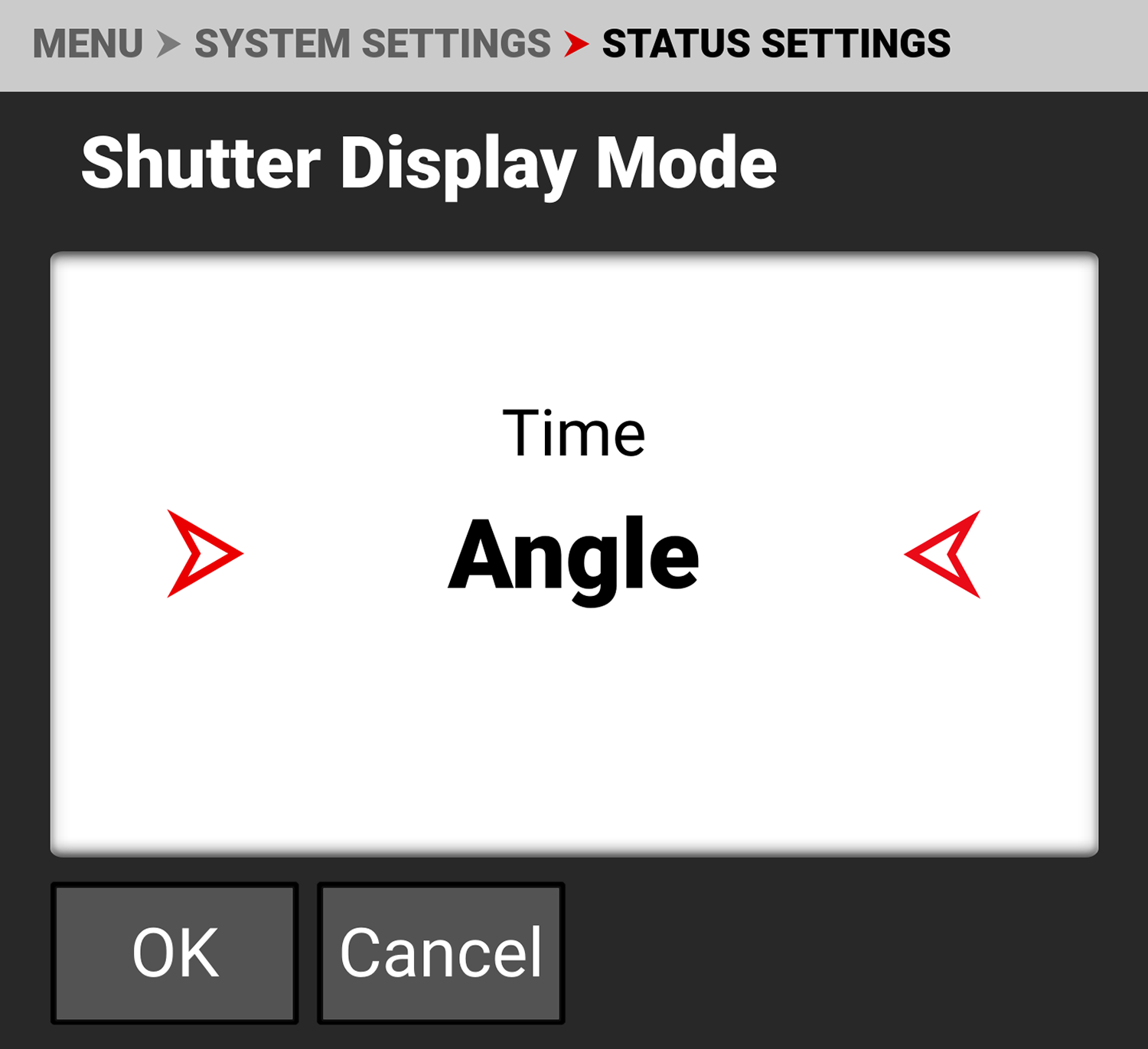

Use Shutter Display mode to select the way that the camera displays the Shutter setting in the menu.

When select Angle, the Shutter menu displays the choices in degrees. When you select Time, the Shutter menu displays the choices in fractions of a second.



Aperture Increments

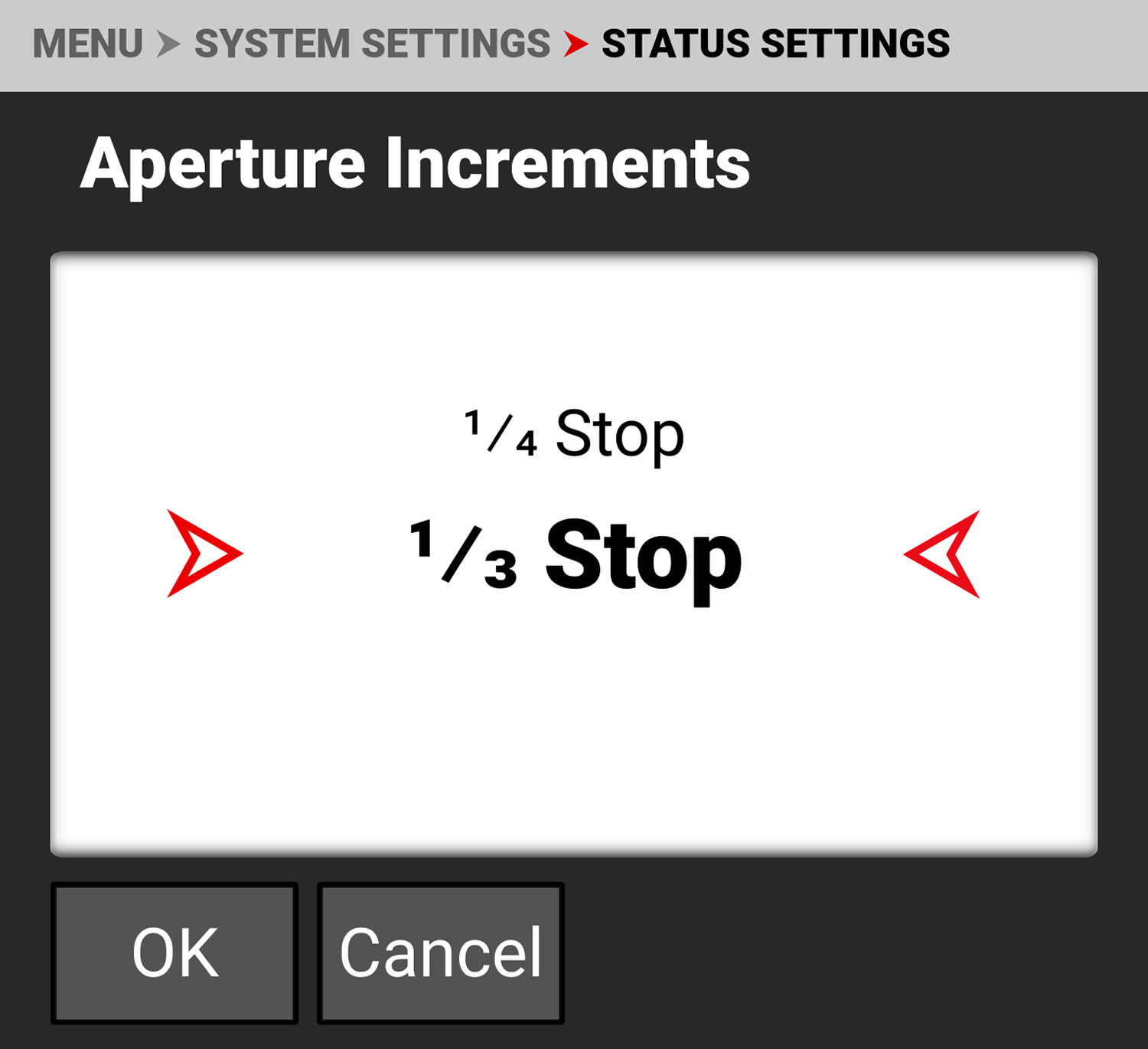

Use Aperture Increments to select one fourth increments or one third increments for the camera f-stop settings. The default is 1/3 Stop.

Focus Distance

Use Focus Distance to select Imperial or Metric units for the Lens Focus Distance display. The default is Imperial.

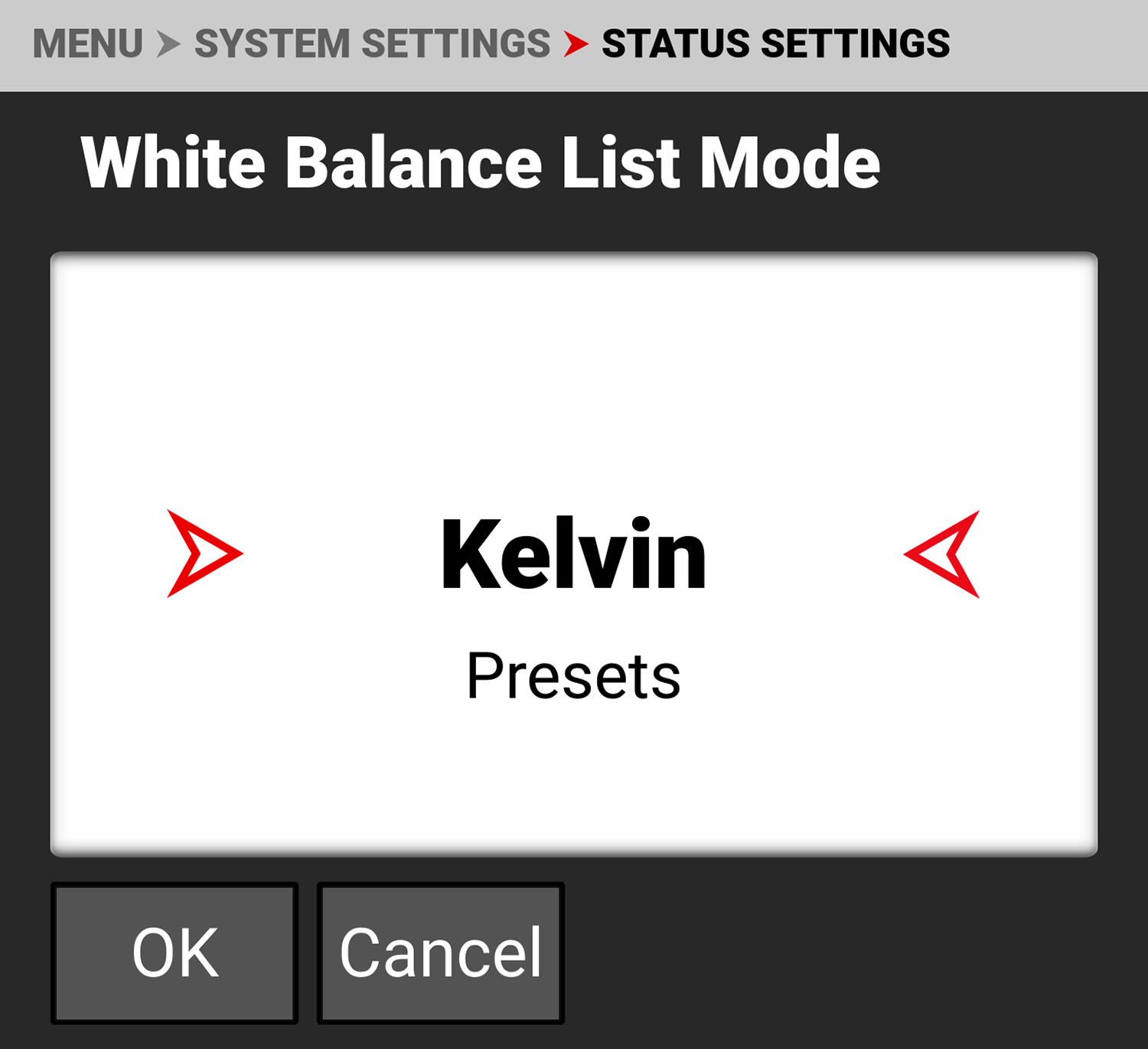

White Balance List Mode

Use White Balance List Mode to select Kelvin or Presets for the White Balance Color Temperature menu. The default is Kelvin.

ND Display Mode

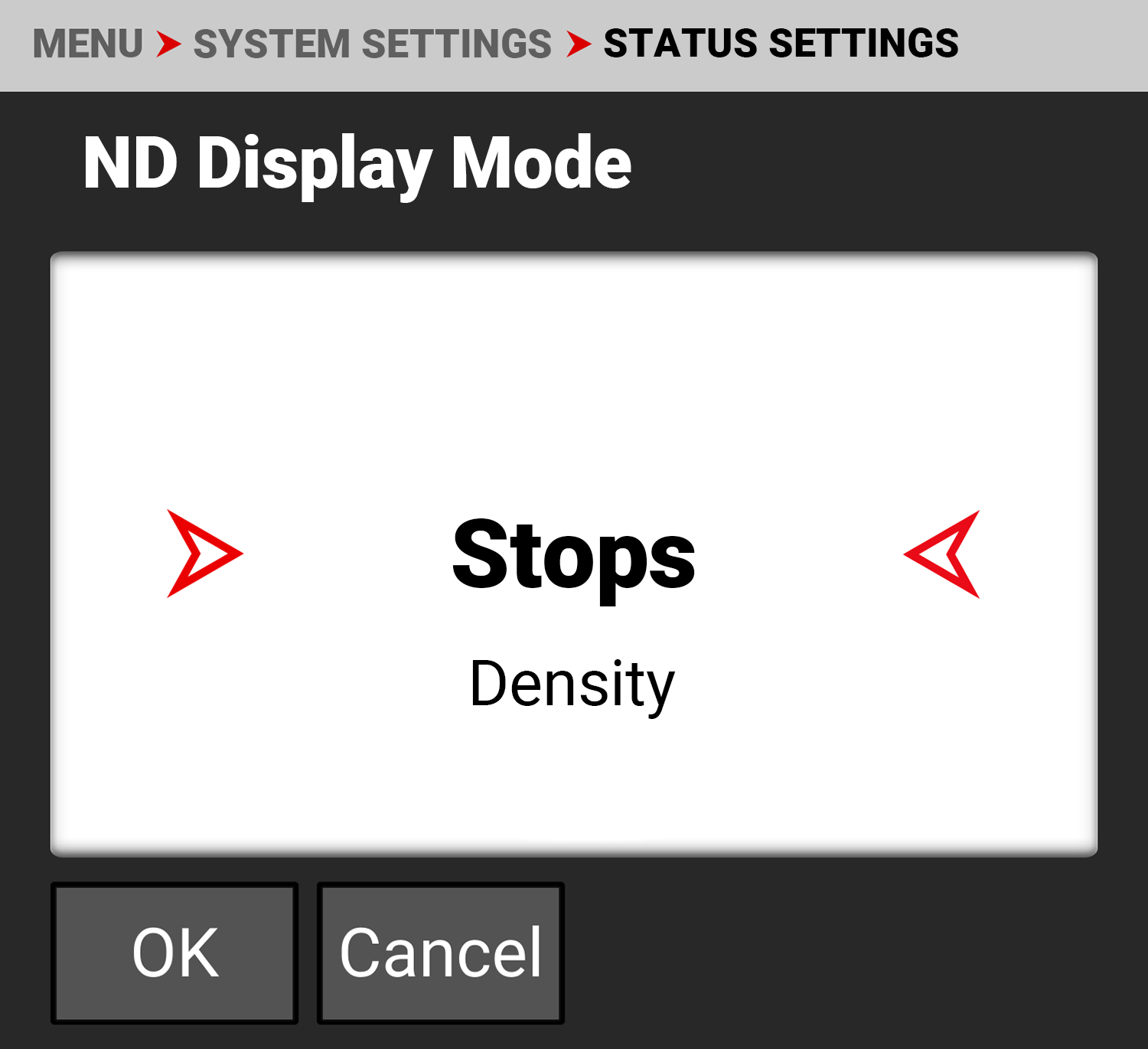

Use ND Display Mode to select Stops or Density display modes when displaying ND settings.

ND Increments

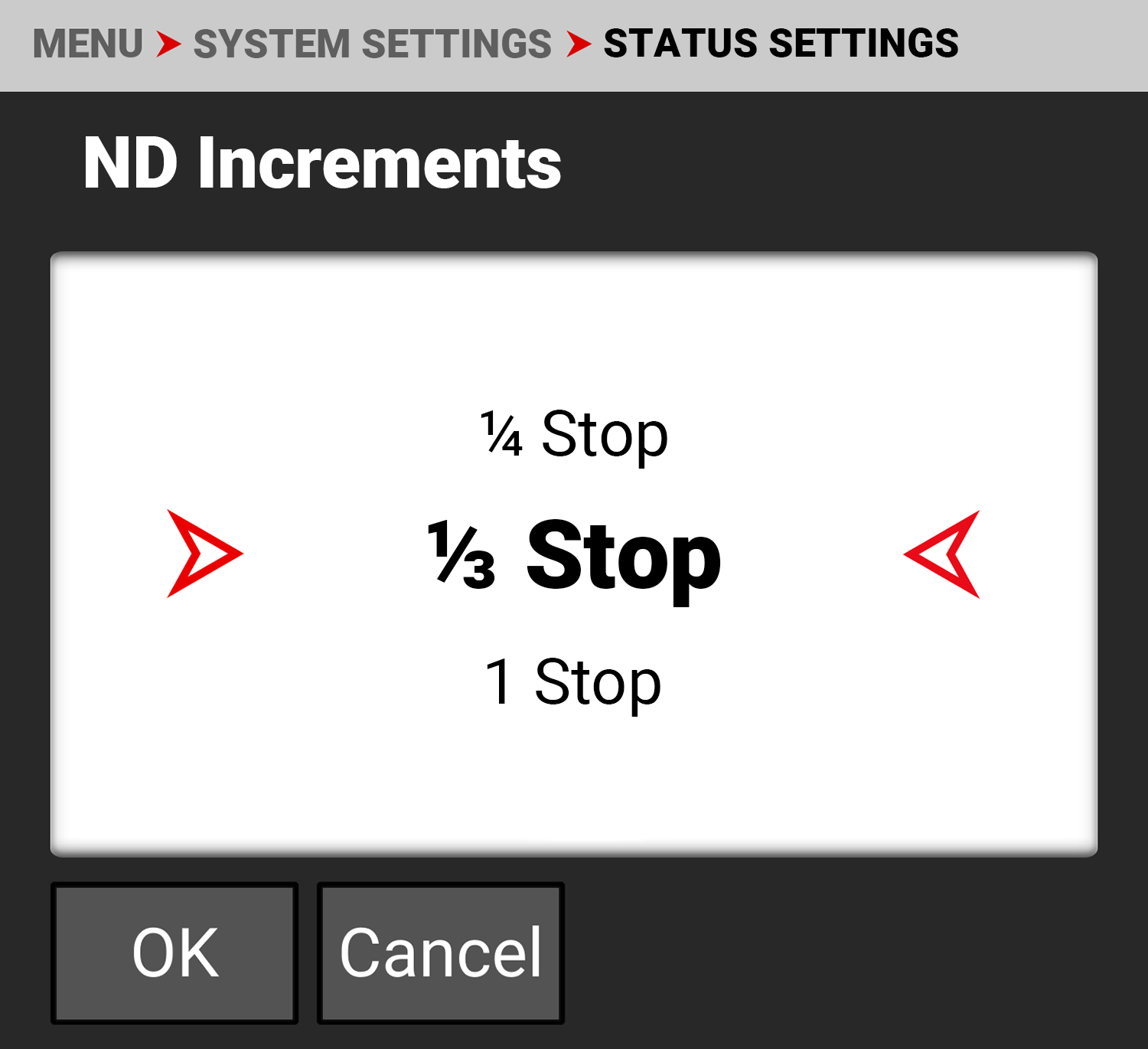

Use ND Increments to set the increment size for increasing or decreasing the ND stop.

ISO Display Mode

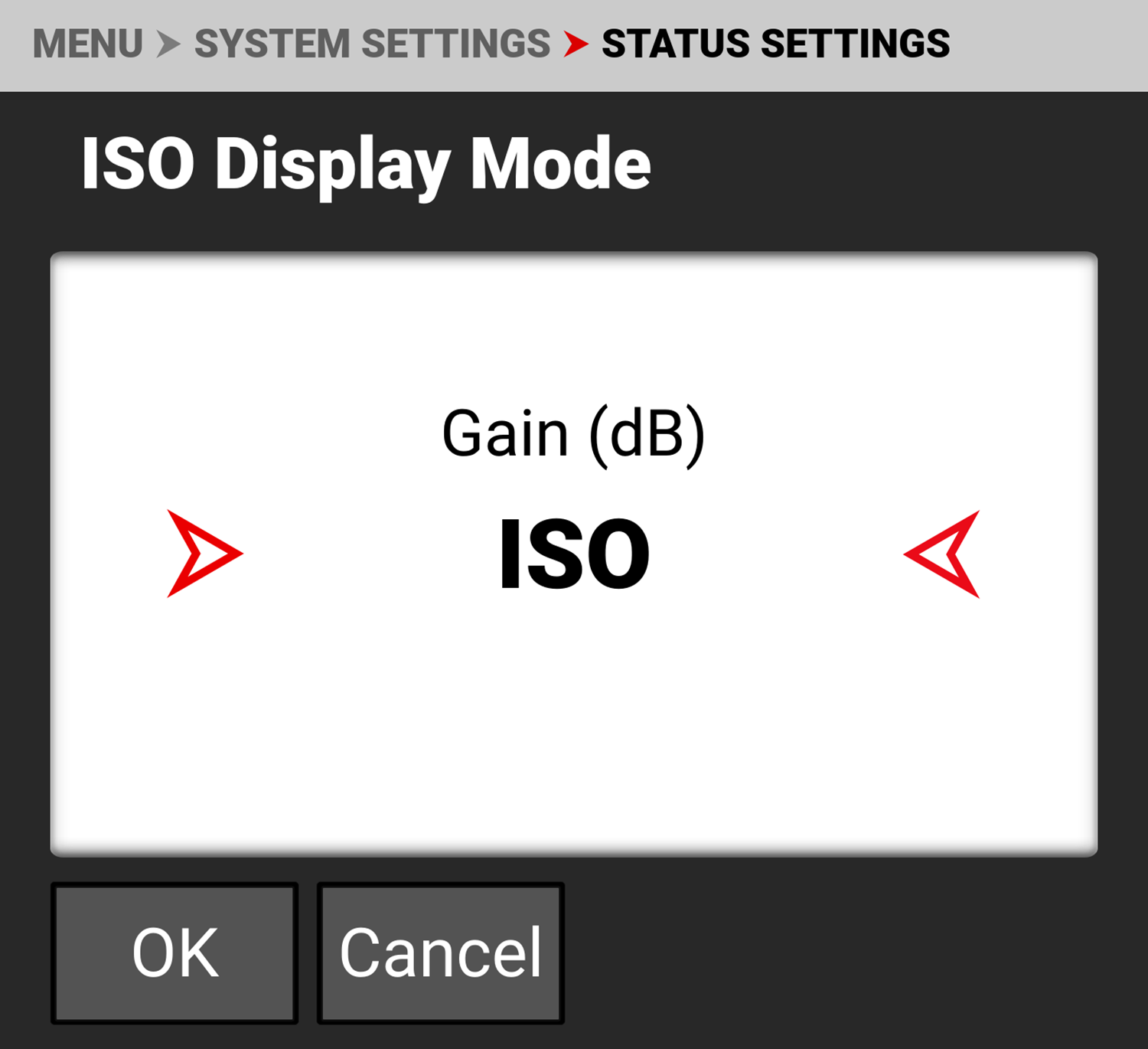

Use ISO Display Mode to select ISO or Gain (dB) as the Image brightness control in the monitoring path (refer to Image / LUT Menu).
