Inserting the Media

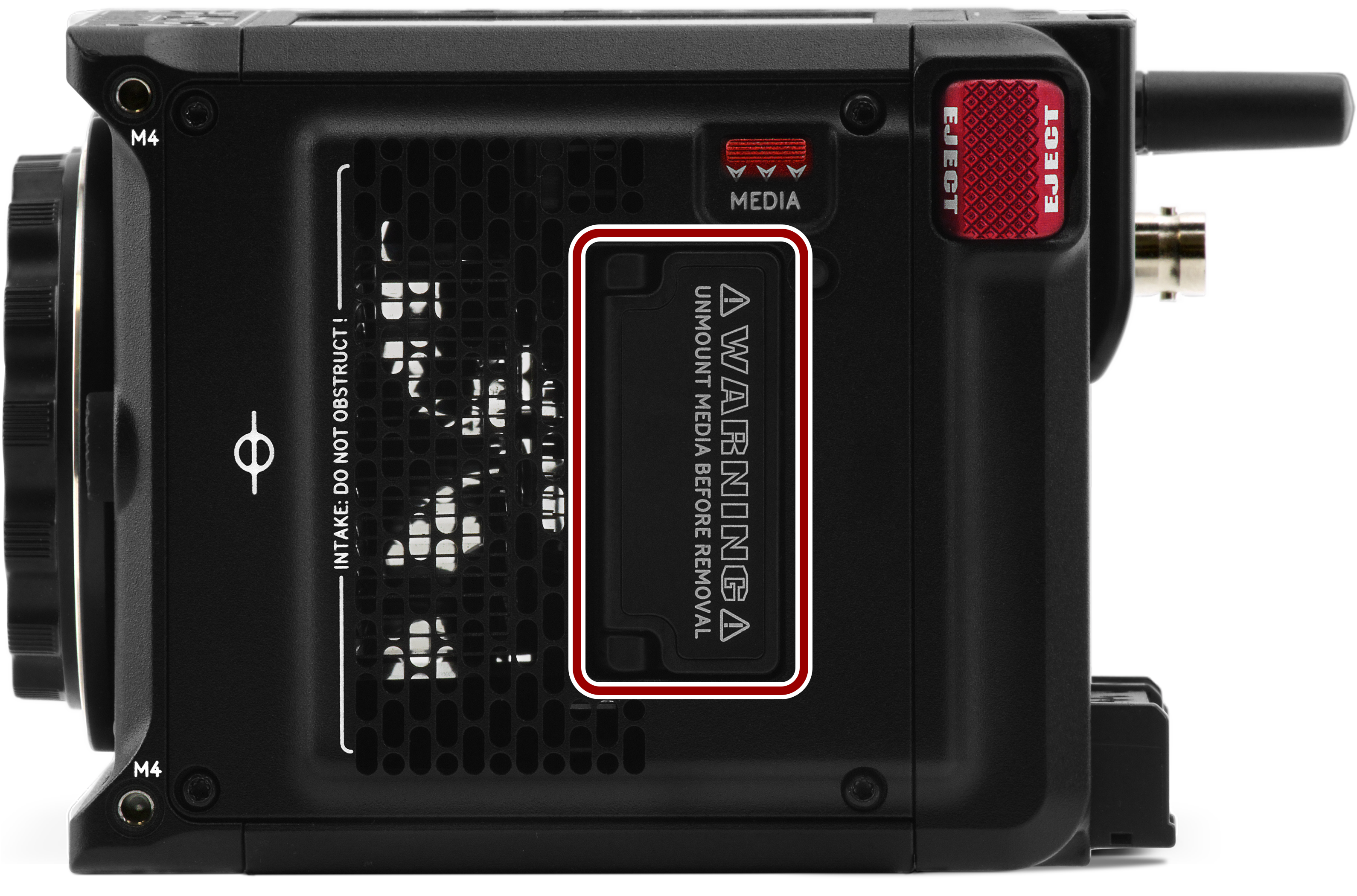

The camera contains a covered compartment on the right side where you insert the CFexpress media card.

WARNING: Do not attach a label to the CFexpress media card. The heat generated by the media can weaken the label's adhesive, causing the label to detach inside of the camera. Labels can also diminish heat dissipation and cause excessive wear to the internal components. Removing a label from a CFexpress media card can possibly deform the card body.

Inserting the media card

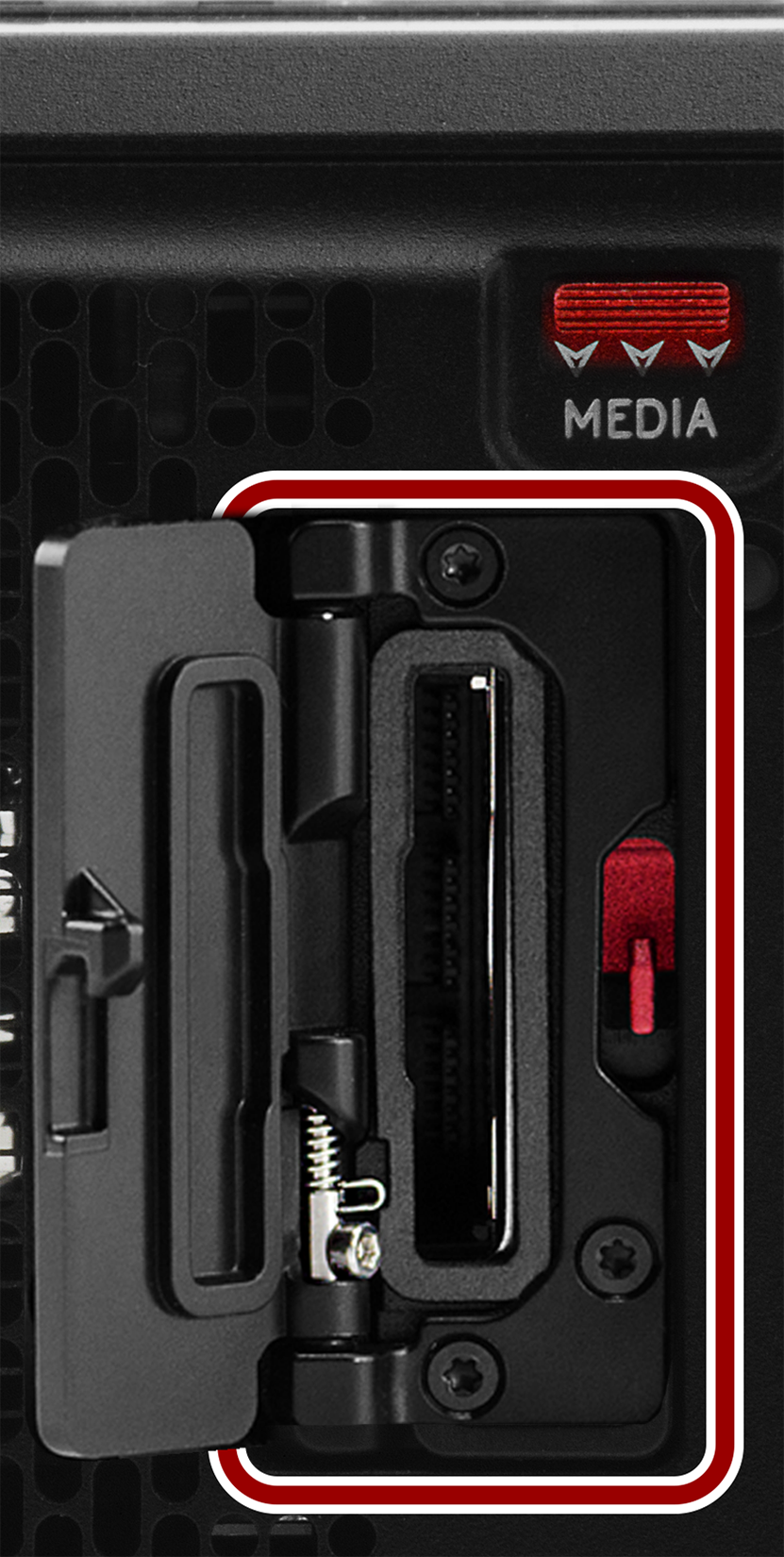

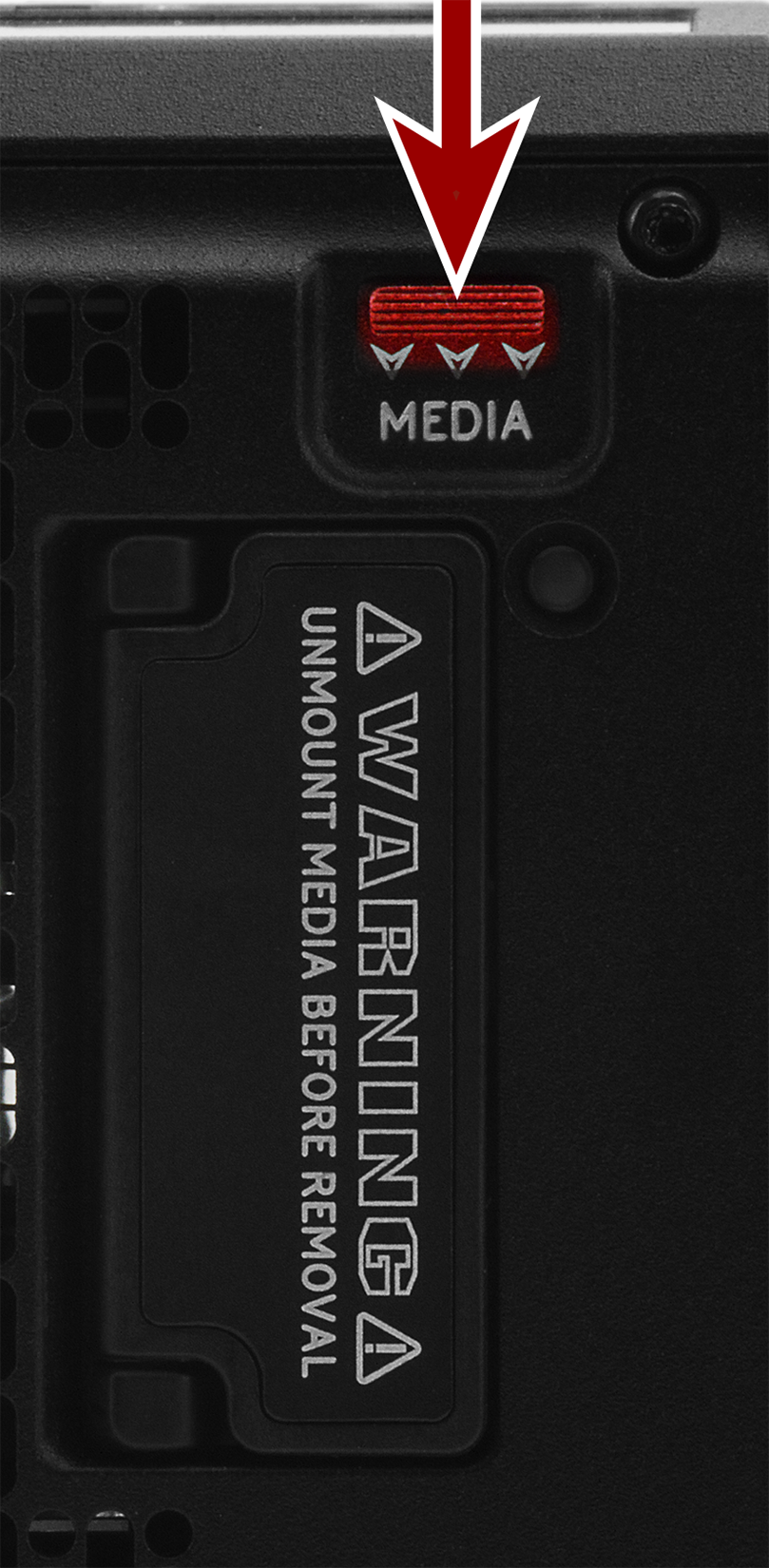

  1. Press the media door latch down, and the media door opens.

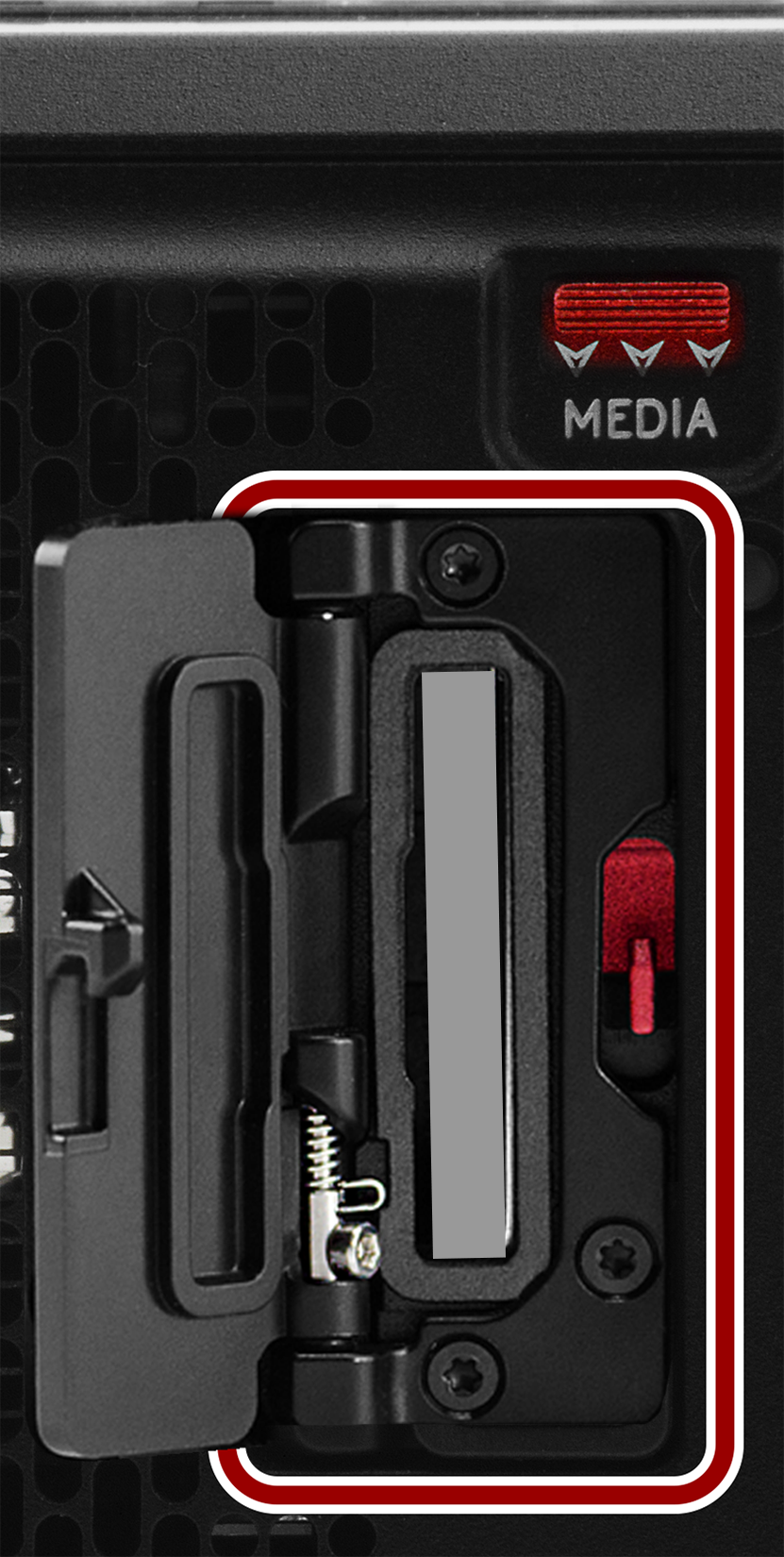

  1. Insert the CFexpress media card in the slot with the top of the card facing toward the front of the camera. Insert the card until it is firmly seated.
  2. Close the media door and make sure that the door latch clicks.
  3. If needed, format the CFexpress media card. Refer to Secure Format for more information.

Removing the media card

NOTE: Do not remove the CFexpress card while the camera is recording or formatting media. Refer to Media Management for more information.

WARNING: The media can get extremely hot. Use caution when removing media.

  1. If the camera is on, go to Menu > Media and select Eject.
  2. Press the media door latch down, and the media door opens.

  1. Press the CFexpress media card until you hear a click, and then release the card and it will slide out.



  1. Let the CFexpress media card cool before gently pulling the card out of the slot.

WARNING: The media can get extremely hot. Use caution when removing media.

  1. Close the media door and make sure that the door latch clicks.
