RED® EVF Mount

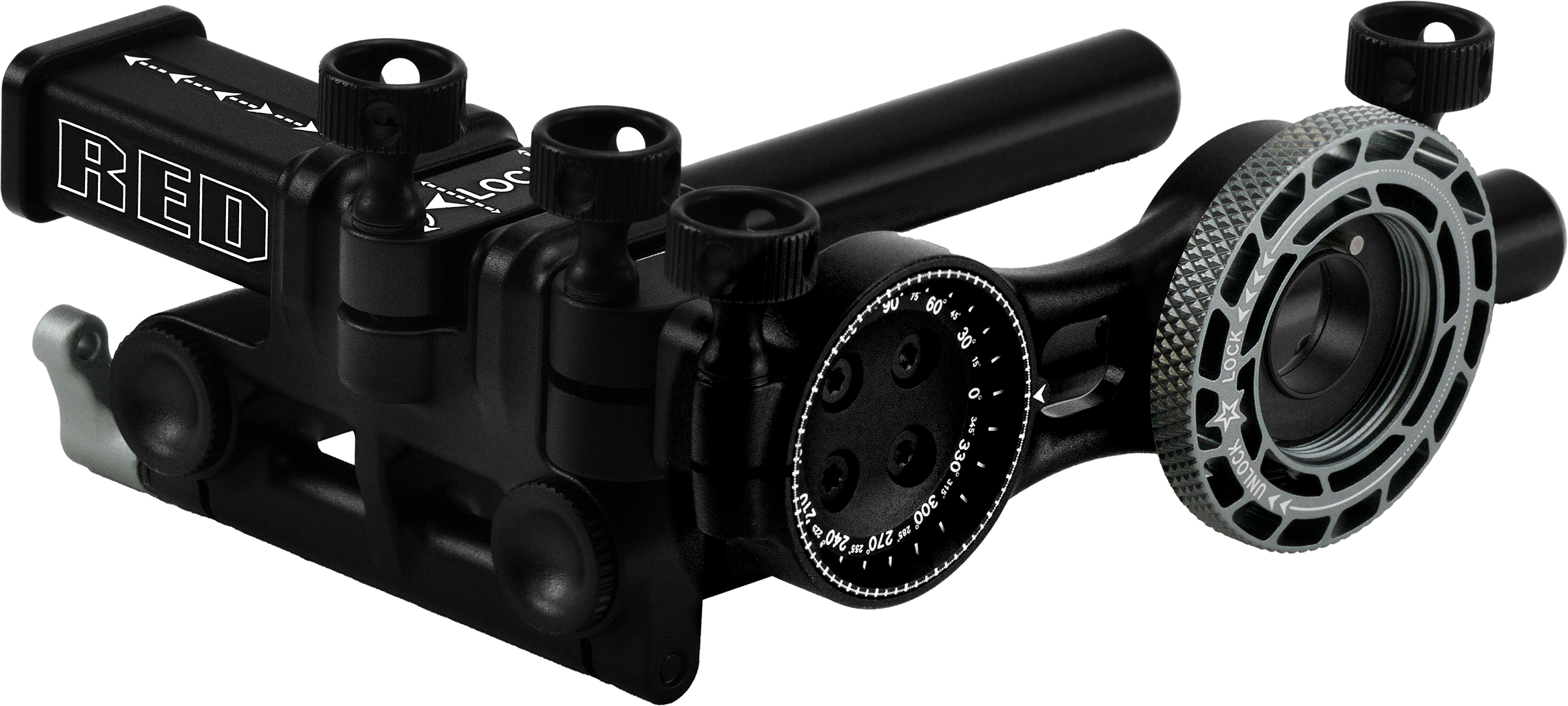

The RED® EVF Mount is a lightweight 15 mm LWS rod-based EVF mounting solution. RED designed the mount for use with the RED® Compact EVF and the DSMC2® RED® EVF (OLED), on DSMC3™, and DSMC2® camera systems.
The RED® EVF Mount features a multi-axis telescoping design, which allows the operator to easily find the optimal position for every situation. The mount includes a quick-connect screw-on EVF clamp, laser etched distance and angle markers, machined thumb-screws for quick and easy adjustability, and support for the RED® EVF Extension Arm (sold separately).
NOTES:
- The 15 mm bracket is not included, refer to RED® 15 mm Top Handle Bracket and V-RAPTOR® XL Top 15 mm LWS Rod Support Bracket for DSMC3™ mounting options.
- The RED® Compact EVF and the DSMC3™ Adapter A are sold separately.
|
Item |
|
Details |
|---|---|---|
|
Dimensions |
|
4.68" x 5.31" x 2.65" |
|
Weight |
|
0.86 lb |
|
Material |
|
Aluminum |
|
Camera Mounting |
|
V-RAPTOR XL TOP 15 mm bracket (refer to V-RAPTOR® XL Top 15 mm LWS Rod Support Bracket) |
|
EVF Mounting |
|
Locking wheel |
|
Operating Temperature |
|
32° F to 104° F (0° C to 40° C) |
|
Storage Temperature |
|
–4° F to 122° F (–20° C to 50° C) |
|
Operating Humidity |
|
0% to 85%, non-condensing |
|
Storage Humidity |
|
0% to 85%, non-condensing |
|
# |

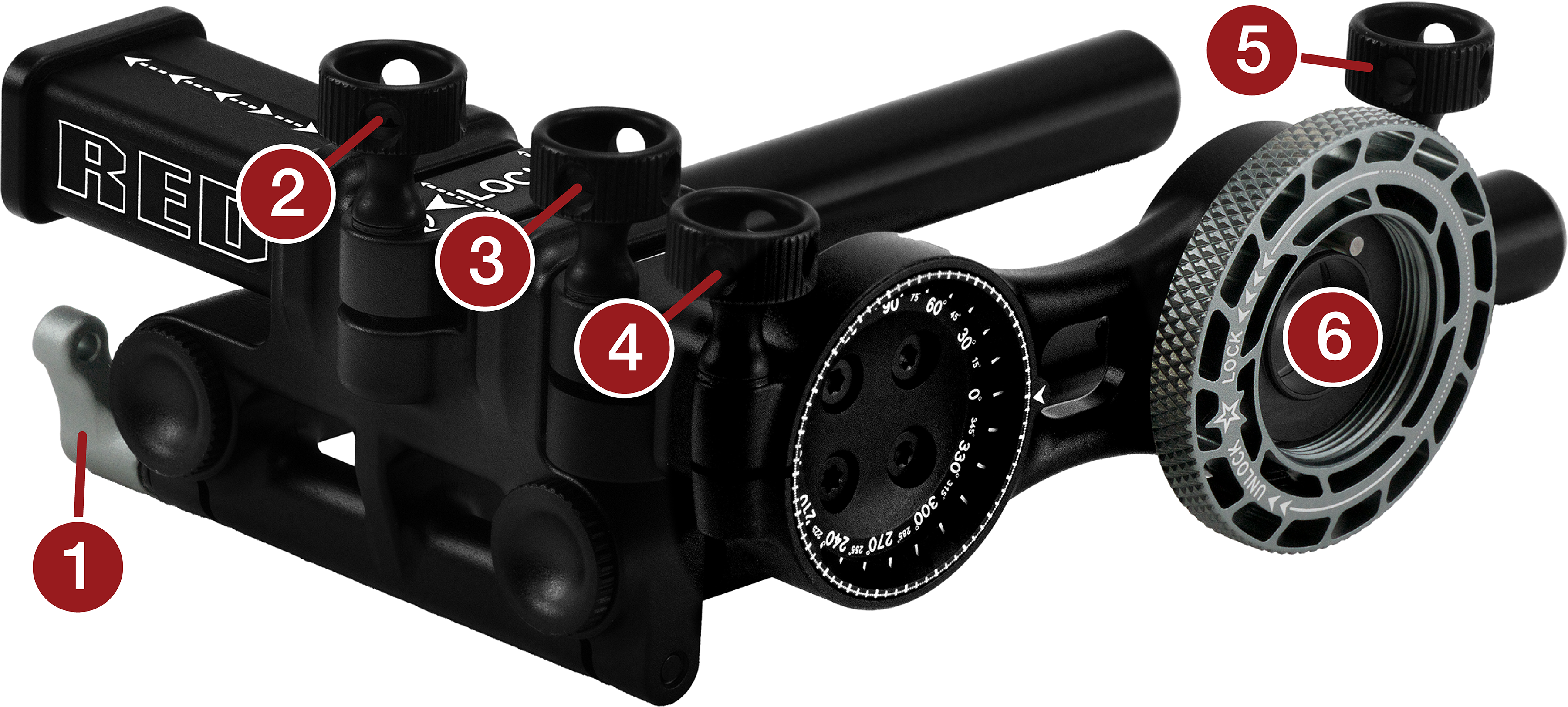

Item |
Details |
|---|---|---|
|
1 |
15 mm Rods and Clamp |
For moving and positioning the entire EVF mount forwards and back |
|
2 |
Main Arm Clamp |
For clamping the position of the main arm |
|
3 |
Telescoping Arm Clamp |
For clamping the position of the telescoping arm |
|
4 |
Arm Pivot Clamp |
For clamping the position and angle of the entire EVF Arm |
|
5 |
EVF Pivot Clamp |
For clamping the position and angle of the EVF |
|
6 |
EVF Mounting Thread Wheel |
Threaded mounting wheel for attaching the EVF |
To attach the RED Compact EVF or the DSMC2 OLED EVF, align the locator pin on the RED EVF Mount with the corresponding locator on the EVF and rotate the locking wheel counterclockwise until tight.
