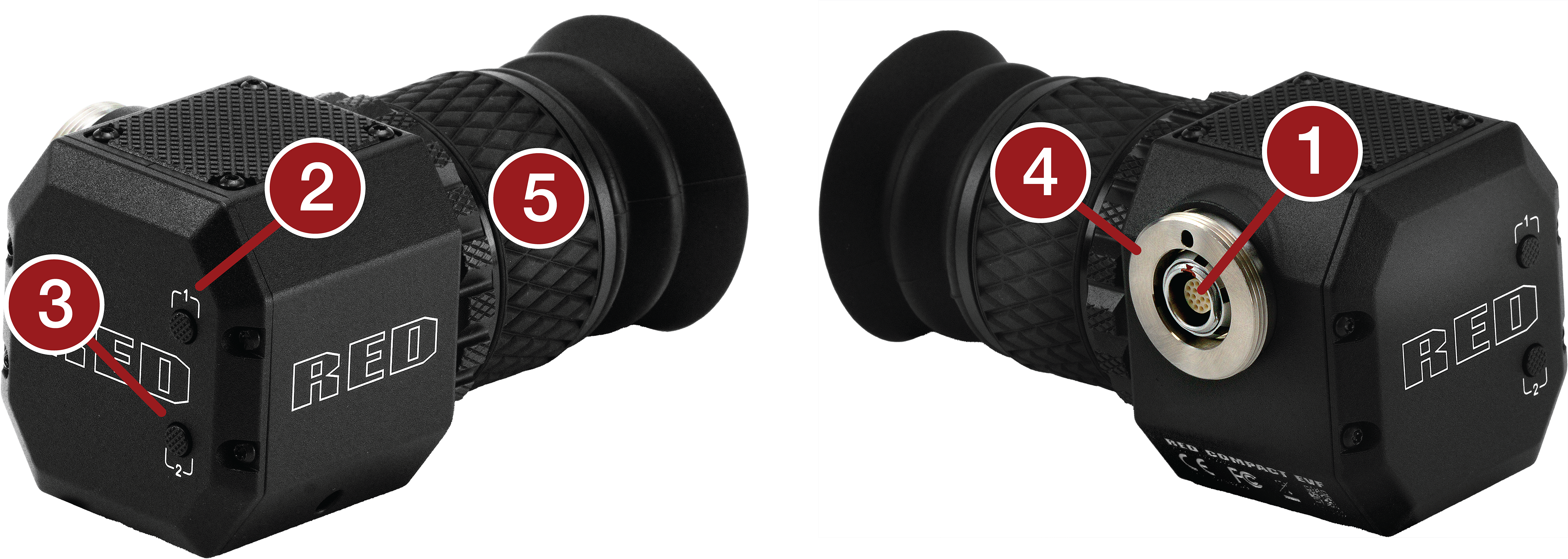

RED® Compact EVF

The RED Compact EVF is a single cable monitoring solution for DSMC3 camera systems. It features a 1080p micro-OLED display and user-assignable buttons to quickly access tools such as peaking and magnify, or to control the camera’s settings such as ISO, FPS, and White Balance.

The RED Compact EVF also features an adjustable diopter, a quick-connect mount for use with the RED EVF Mount or a 1/4-20 mount plate for use with third-party options, and an updated eyecup mounting system that allows for a more secure fit while maintaining easy eyecup replacement (refer to RED® EVF Mount).

NOTE:

• Camera control is only supported on DSMC3 systems.

• The DSMC3 Adapter A is required to use the RED Compact EVF on DSMC3 cameras.

• DC Power is provided by the camera through the DSMC3 Adapter A (refer to DSMC3™ Adapter A).

WARNING: DO NOT point the RED Compact EVF eyepiece at direct sunlight. Continued exposure to direct sunlight may damage the EVF. Point the eyepiece away from sunlight when not in use. Damage to the RED Compact EVF caused by continued exposure to direct sunlight is not covered under warranty.

Item		Details
Dimensions		2.43" x 2.46 x 4.8"
Weight		0.8 lb
Material		Aluminum
Camera Mounting		Integrated attachment wheel and RED EVF Mount or 1/4-20 mount points on included Mount Plate
Resolution		1920 (width) x 1080 (height)
Display Type		OLED
Bit Depth Color		8-bit
Colorimetry		Rec. 709
Contrast Ratio		>10,000:1
Display Rate		60 fps
Optics		Fully coated optics with > 32° field of view, infinity focus and eyecup that accommodates standard 1.6” to 1.8” diameter eye cushions
Diopter Range		– 2.5 to + 2.5 diopter correction range
Buttons		Two buttons for camera control or user-assignable buttons
Power Consumption		2.5 W (maximum)
Operating Temperature		32° F to 104° F (0° C to 40° C)
Storage Temperature		–4° F to 122° F (–20° C to 50° C)
Operating Humidity		0% to 85%, non-condensing
Storage Humidity		0% to 85%, non-condensing
