Basic Menus and Controls
|
This section includes: |
GUI Menu Introduction
This section describes the structure and layout of the graphical user interface (GUI) that overlays the video monitor signal. Advanced GUI menu controls enable convenient access to menus, overlays, and other critical camera information. Functionality varies based on monitor output type and firmware version. The GUI menu is separated into three (3) main sections:

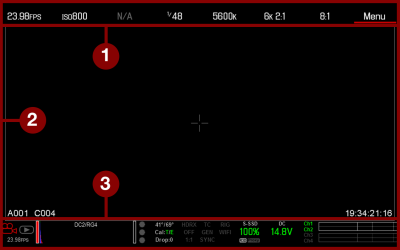

Figure: GUI Control Menu
|
# |
Item |
Description |
|---|---|---|
|
1 |
Upper Status Row (Basic Menu) |
Easy access to primary camera capture parameters. Go to Upper Status Row (Basic Menu). |
|
2 |
Live Action Area |
Live camera recording view, overlays, guides, and more. Go to Live Action Area. |
|
3 |
Lower Status Row |
Critical camera parameters, record/playback modes, media and power status, and audio meter. Go to Lower Status Row. |
