Home Page

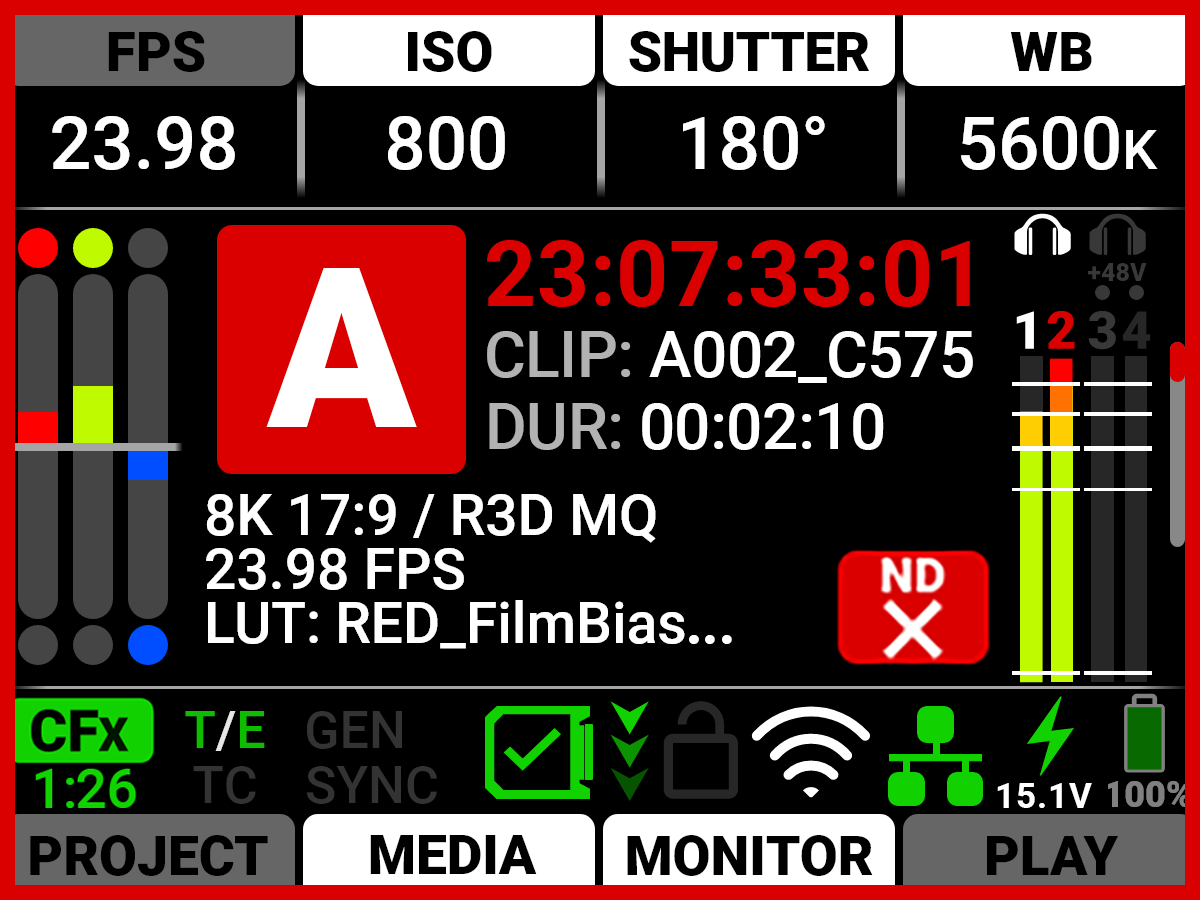

This section describes the Home Page of the LCD GUI. This page contains the Quick Settings, Exposure Meter, Recording Information, VU Meter, Status Bar, and Quick Menus. This is the first page that displays when you power up the camera.
Recording Quick Settings

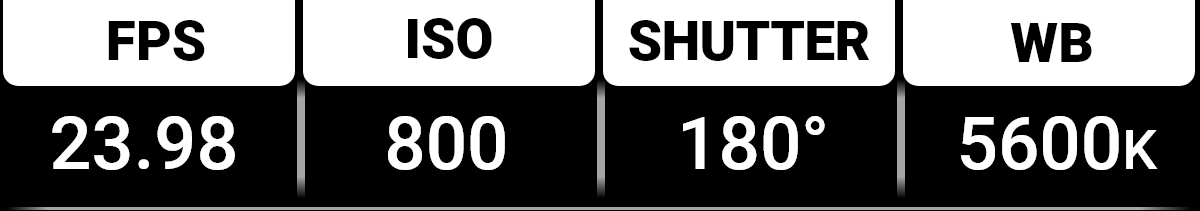

The Recording Quick Settings section of the LCD home page displays the Recording Quick Settings buttons. You can use these buttons to quickly access the most often used camera recording menu settings. These settings include Recording Frame Rate, ISO, Shutter, and White Balance.
Press the top buttons to open the menu item lists.
Press Up and Down to navigate the list.
Press the button under OK or SEL to select the item and return to the Home Page.
Press the button under CANCEL or press MENU to return to the Home Page without making any changes.
Press and hold the button above SHUTTER to toggle the shutter between degrees and fractions (refer to Shutter for more information).
Press and hold White Balance (WB) to toggle between Color Temperature and Color Temperature Presets (refer to White Balance for more information).
RAW RGB Exposure Meter
The Exposure section of the LCD home page displays the RAW RGB (pre-ISO) exposure levels for the camera.
|
Exposure |
Overexposed Example |
Underexposed Example |
Balanced Example |
|||
|
|
|
|
|
The RAW RGB Exposure Meter displays the quantity of over-exposed or under-exposed pixels in each of the separate red, green, and blue channels of the raw sensor data.
The top and bottom RGB lights illuminate when a small number of pixels on the sensor are overexposed or underexposed. This indicates that a small number of pixels in the image are too bright and will not contain any detail, or are too dark and will appear as noise.
The bars show the quantity of overexposed and underexposed RGB pixels on the sensor. Adjust the settings in the camera such as ND, Iris, Gain, or shutter speed to compensate, or change the scene's lighting for the best, balanced image.
Camera Designation and REC Indicator

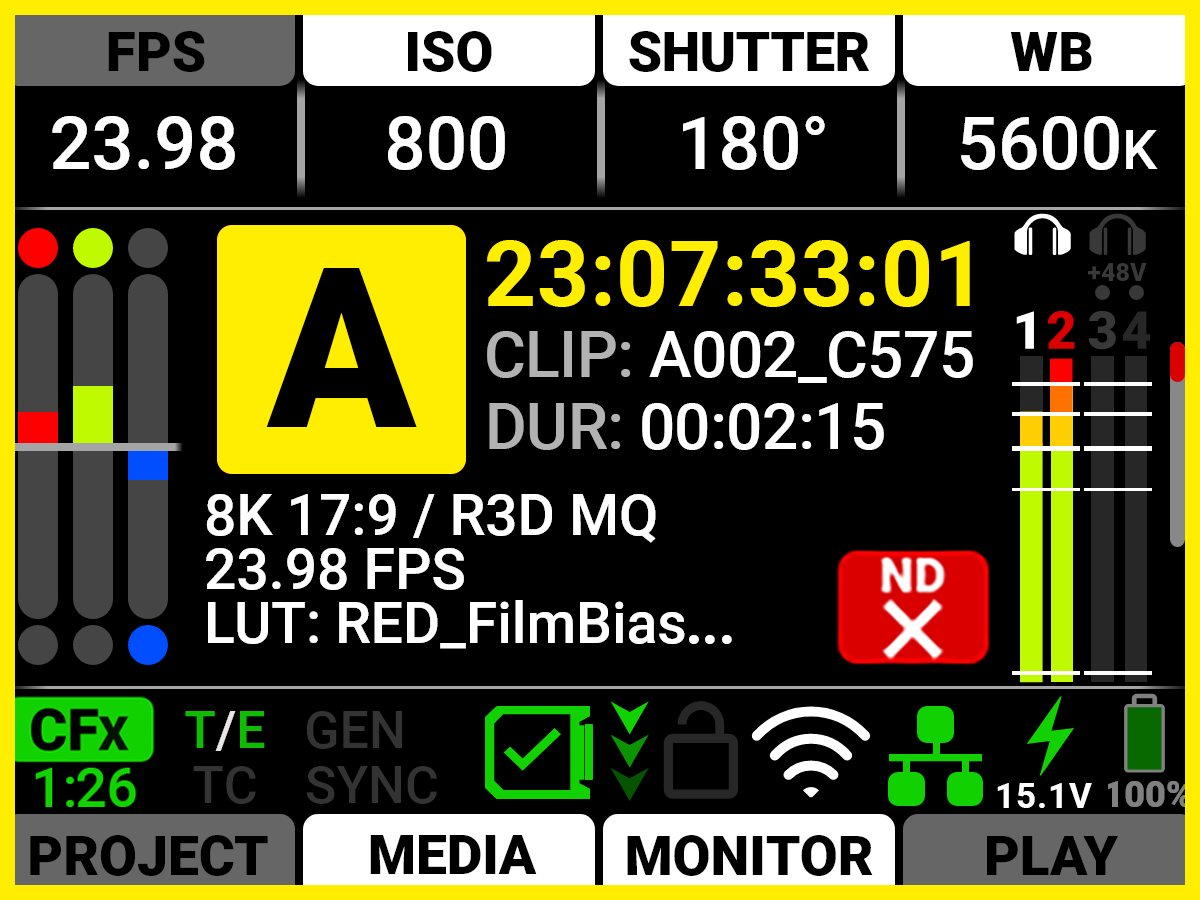

The Camera Designation and Record indicator on the LCD home page displays the camera letter assigned to the camera (refer to Slate and Camera ID). The color of this area indicates when the camera recording is ready (black), when the camera is recording (red), and when the recording is stopped and the camera is adding the pre-recording (yellow).
|
Recording: |
Adding Pre-Recording: |
|
|
|
Timecode / Edgecode

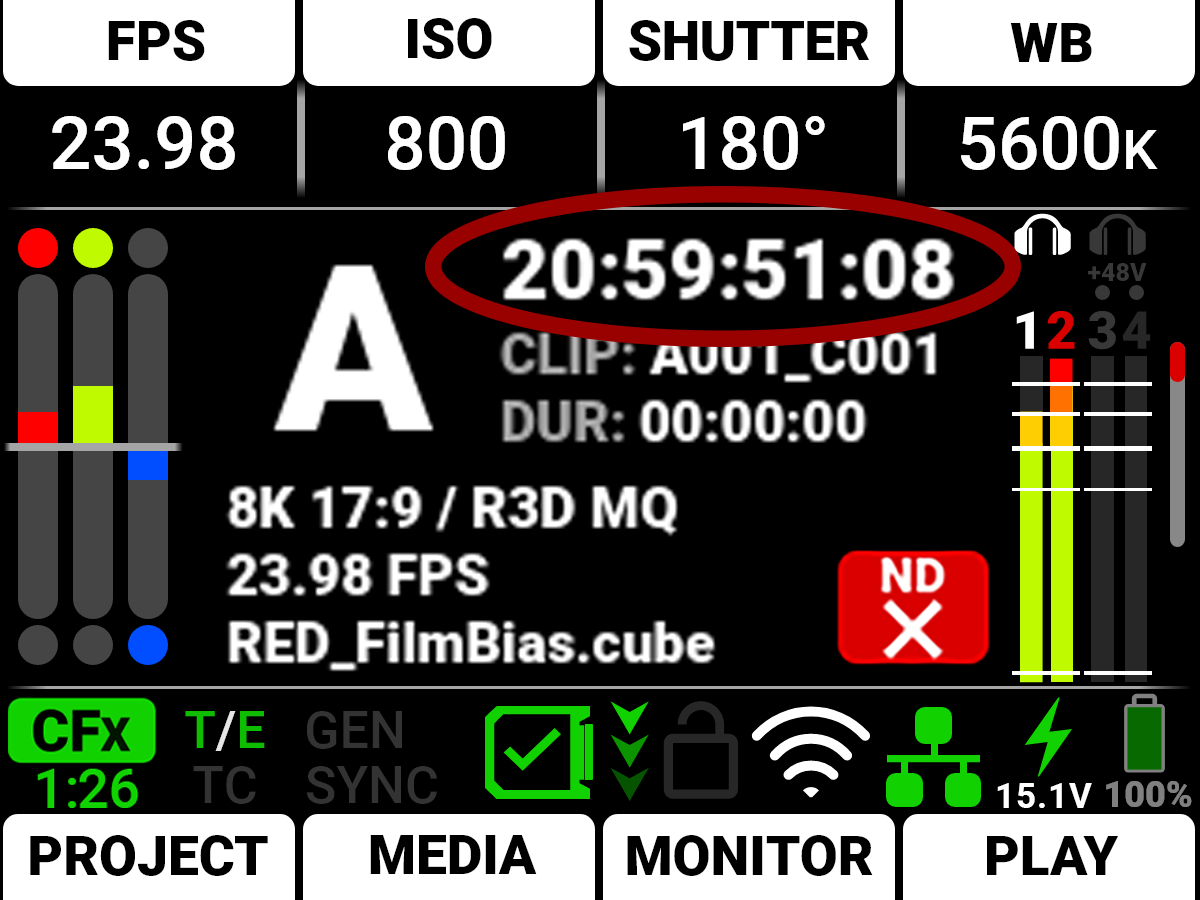

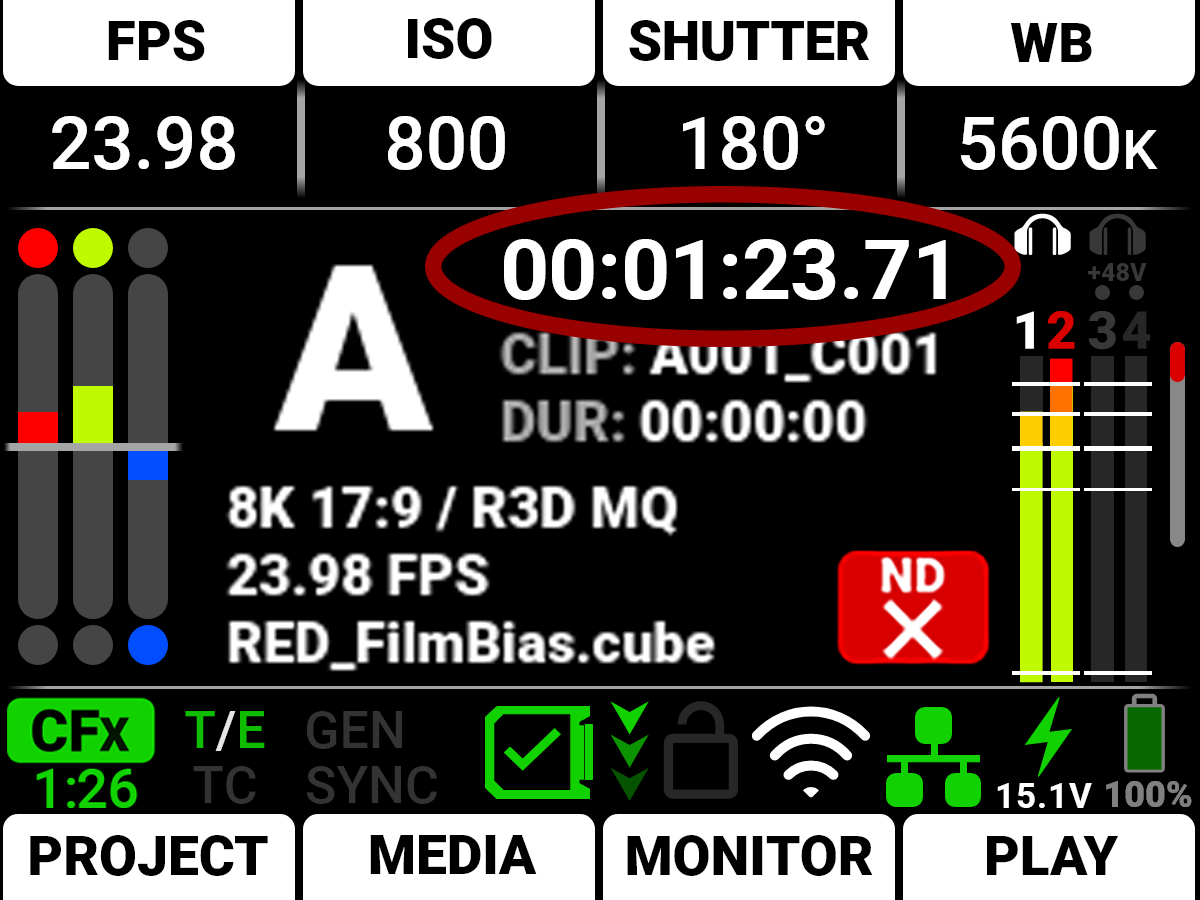

The Timecode / Edgecode section displays the timecode or edgecode (refer to Timecode Display Mode).
|
Timecode: |
Edgecode: |
|
|
|
This text turns red when the camera is recording.
Clip

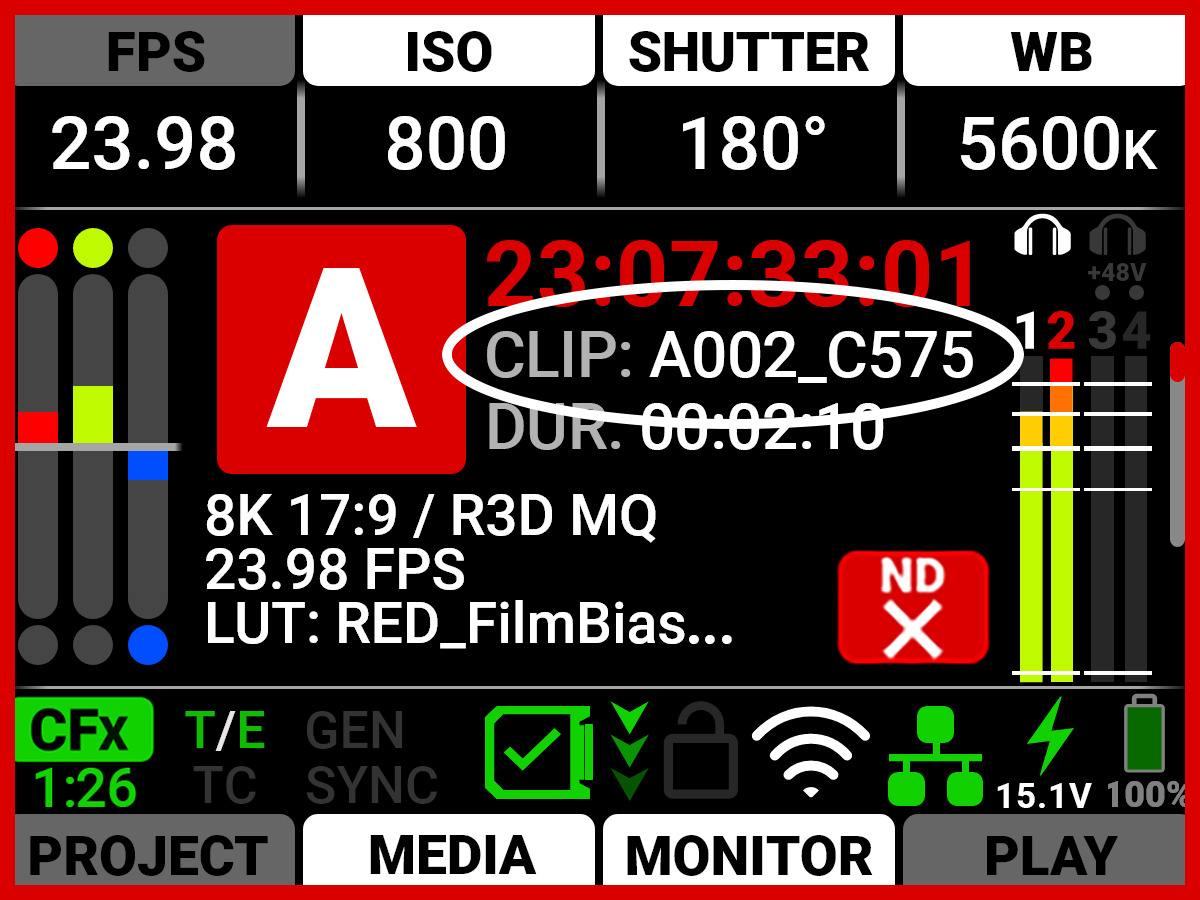

The Clip area displays either the currently recording clip name, or the upcoming clip name designated in the Project Settings menu (refer to Slate).
Duration

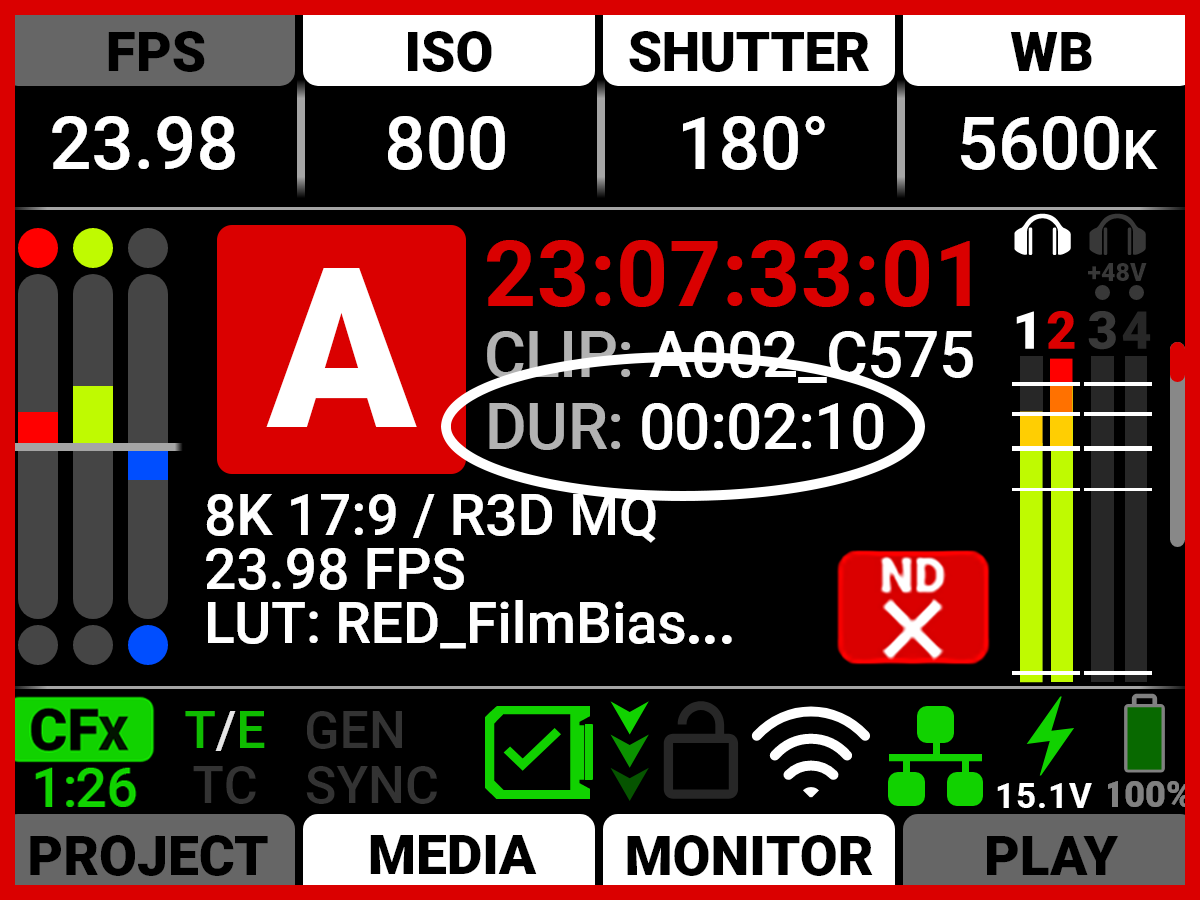

The Duration area displays the real-time duration of the current clip.
Sensor Format

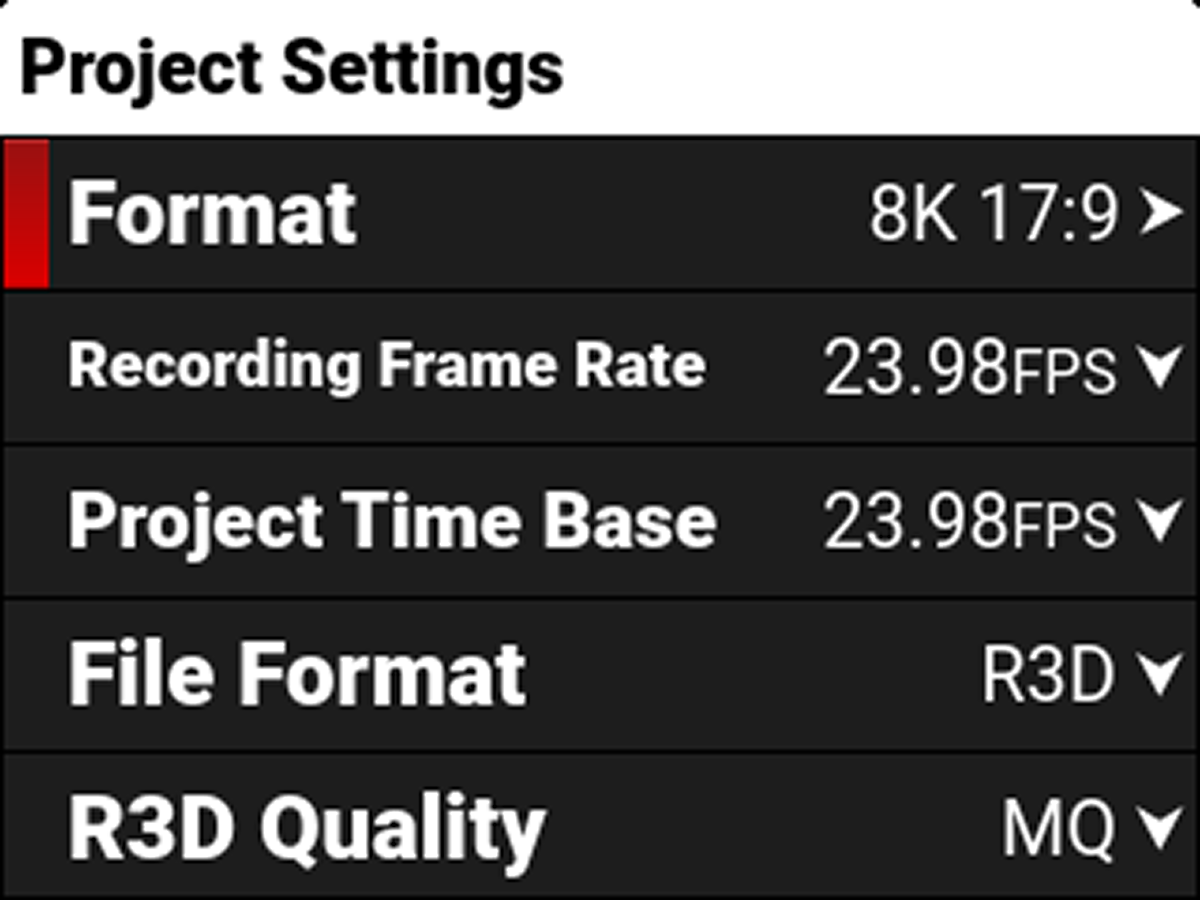

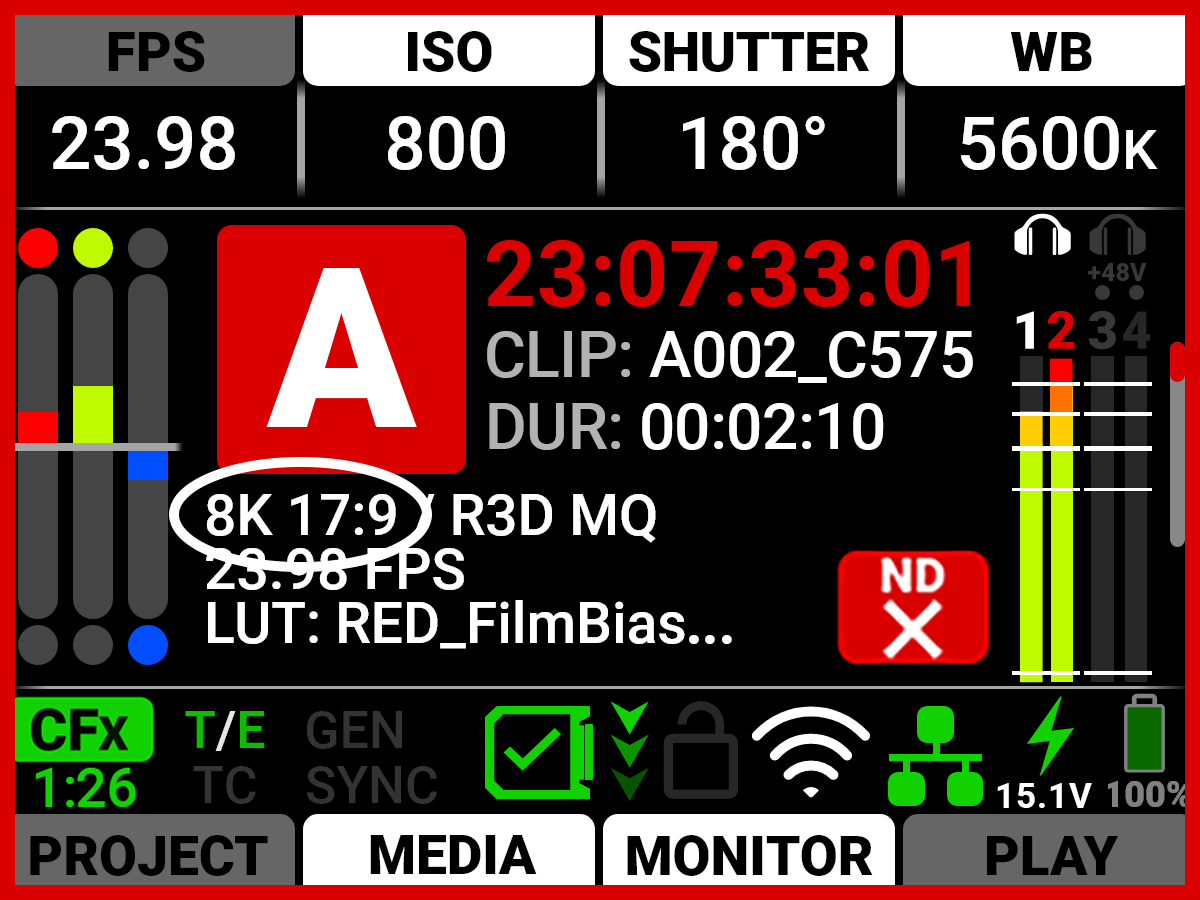

The Sensor Format area displays the sensor format selected in the Project Settings (refer to Format).
Quality

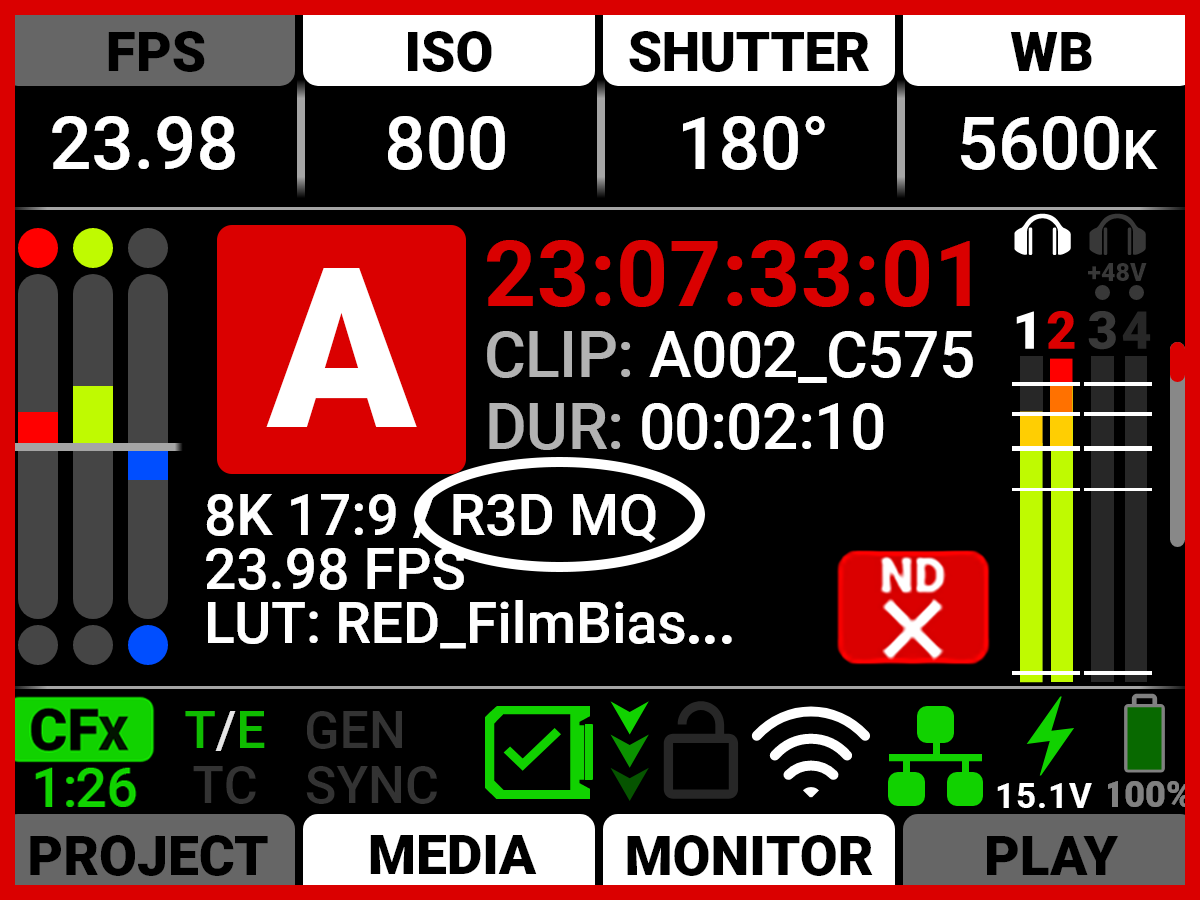

The Quality area displays the R3D or ProRes compression level (refer to R3D Quality).

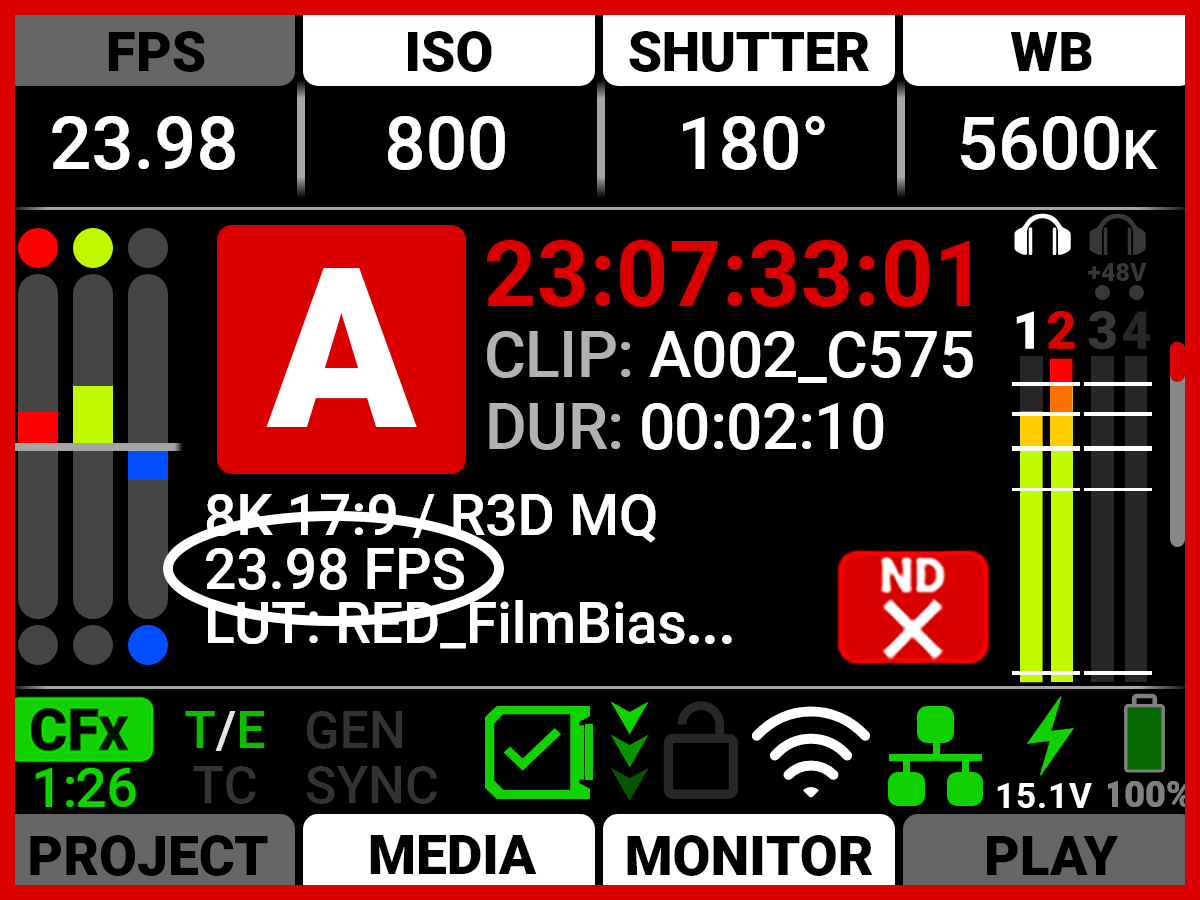

Project Time Base
The Project Time Base area displays the playback rate for the recorded footage selected in the Project Settings (refer to Project Time Base).
3D LUT
The 3D LUT area displays the LUT file selected in the Image / LUT menu (refer to 3D LUT).
ND Status

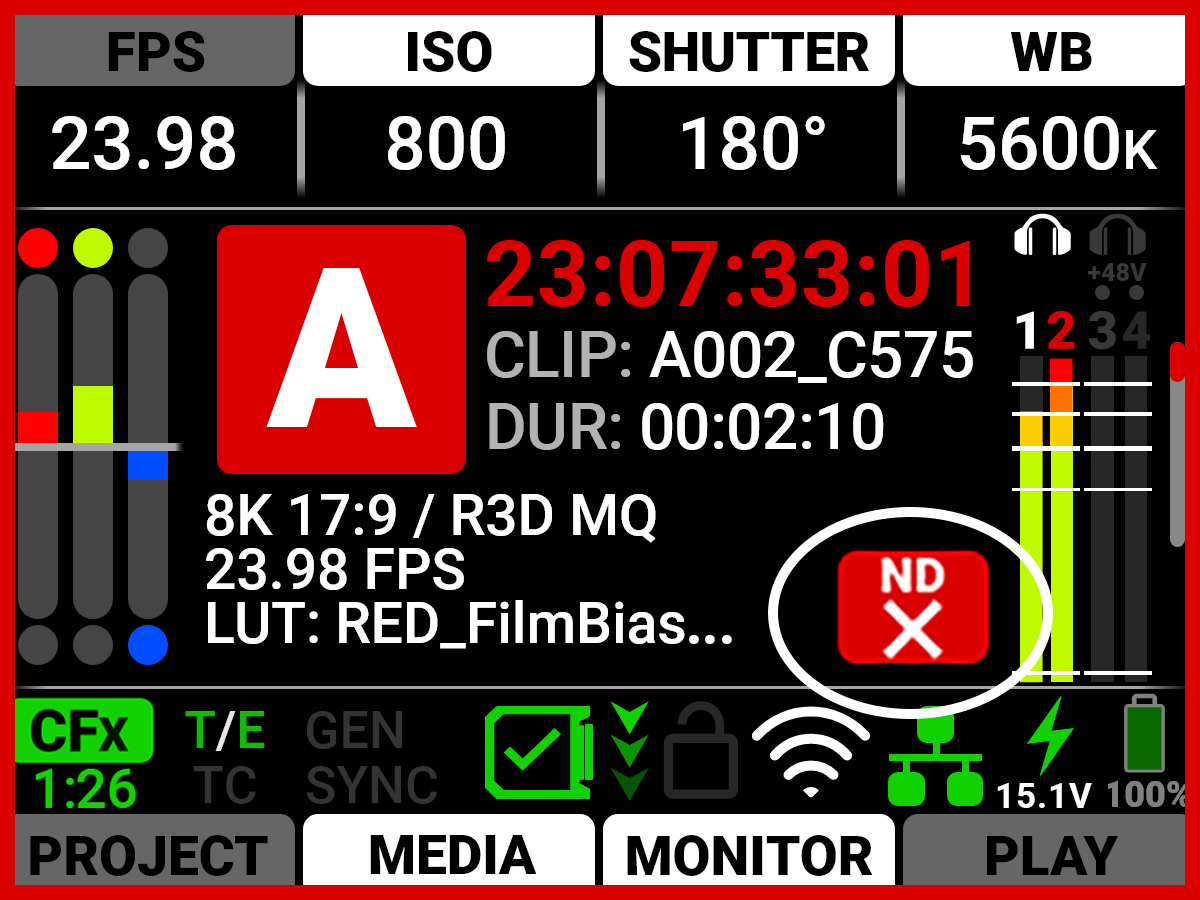

The ND Status area displays the ND filter status (refer to ND).
Status Bar

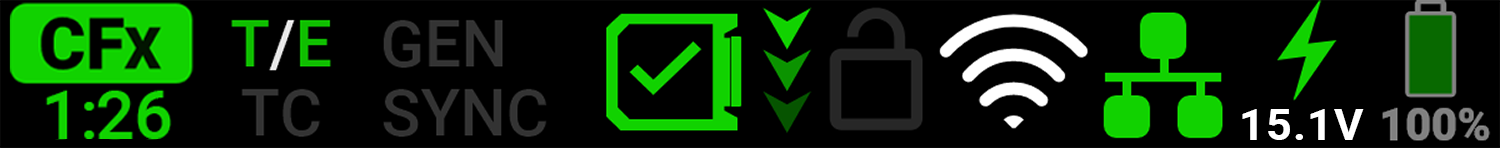

The Status Bar contains status icons for various camera settings and inputs.
Quick Menus
The Quick Menus section of the LCD home page displays the Quick Menu buttons. Press and hold the button under MEDIA to quickly eject (unmount) the CFexpress media (Refer to Eject for more information). You can use these buttons to quickly access the most often used camera menus. These settings include Project Settings Menu, Media Menu, Monitoring Menu, and Playback .
Press the bottom buttons to open the Quick Menus.
Press Up, Down, and SEL to navigate the menus.
Press MENU to return to the Home screen.
Playback
When you press the button below PLAY on the Home Page, the LCD displays the Playback screen.
To close the Playback screen, press the button below CAMERA.

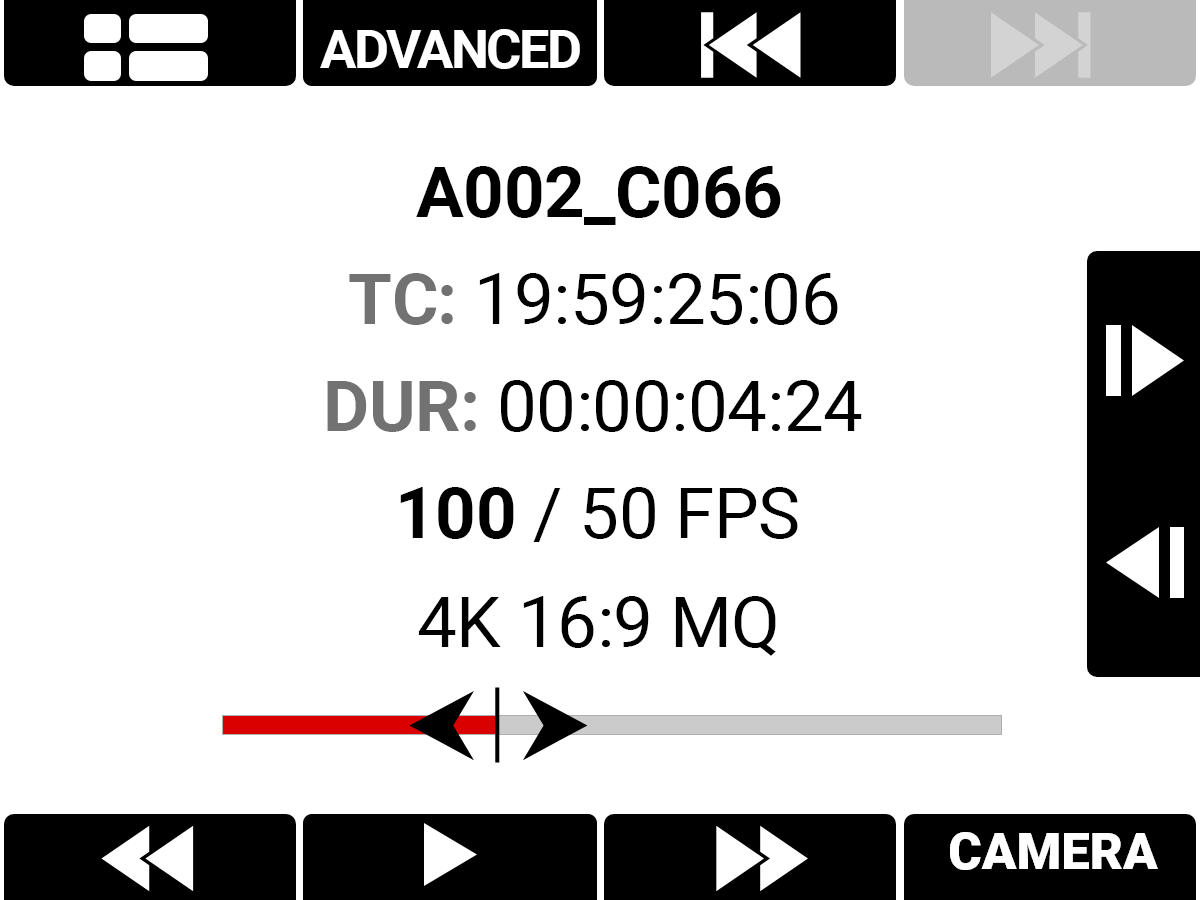

Playback Screen
The Playback screen displays the following:

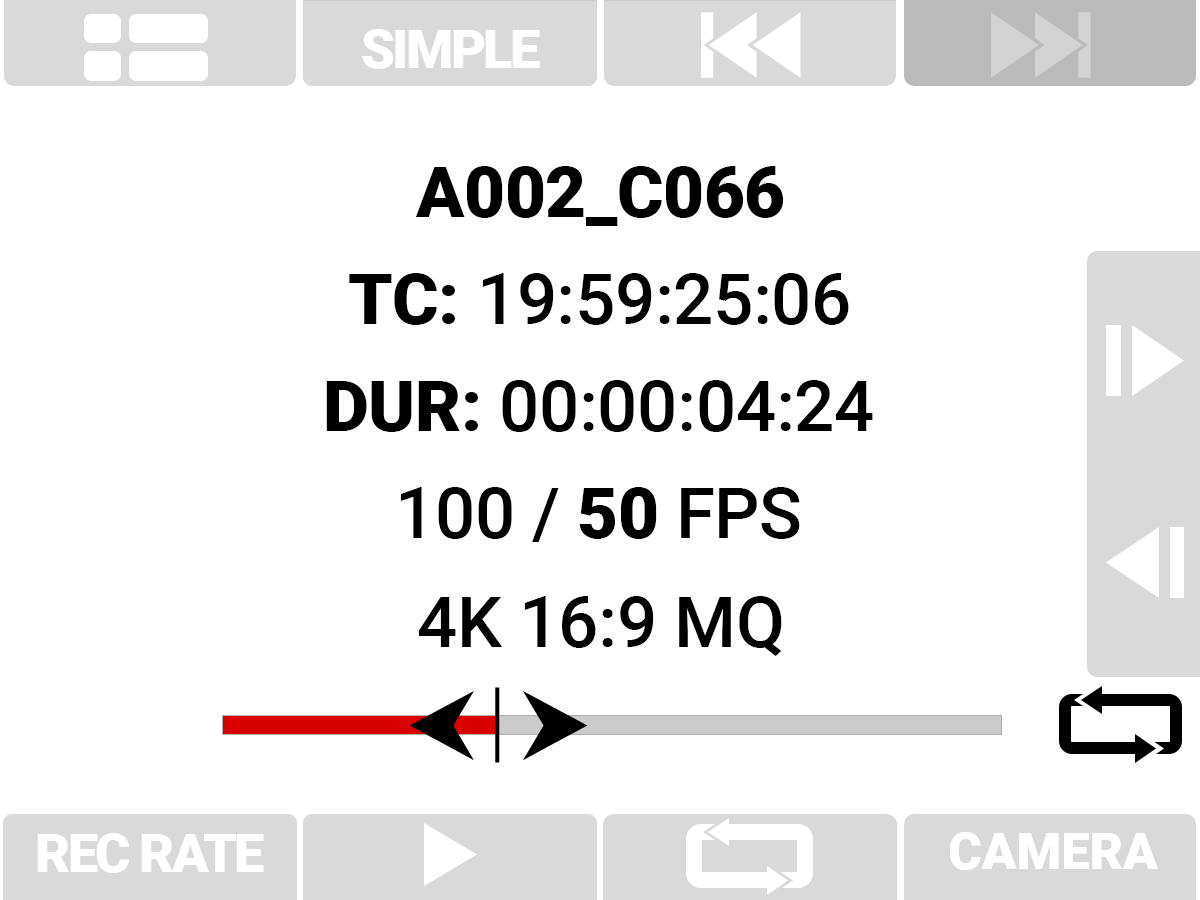

Clip Information
The Clip Information displays the name, Timecode, duration, project time base, recording rate, format, timeline, and looping status of the clip.
Playback Screen Buttons

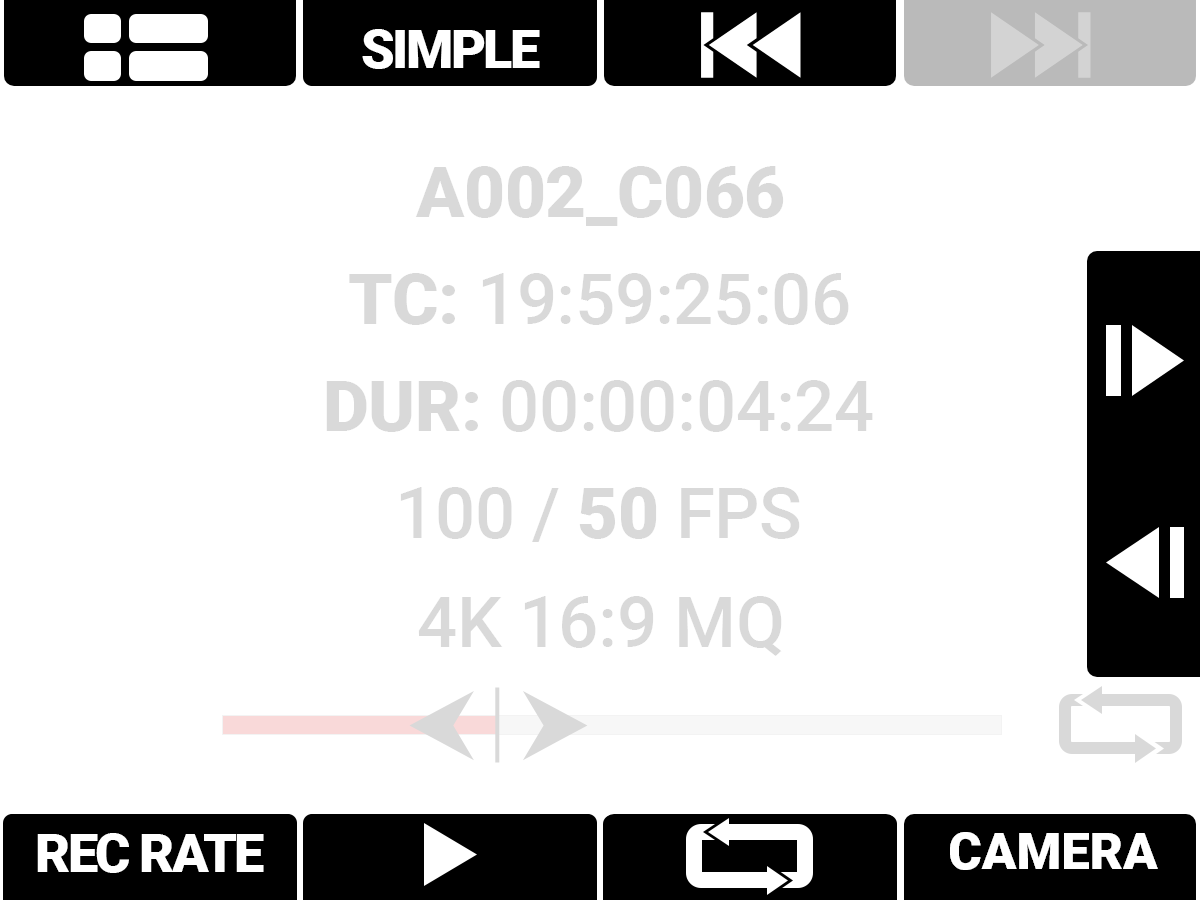

With the Playback screen buttons you can view the Clip list, toggle between Advanced and Simple Playback mode, move to the start of the clip, move to the end of the clip, move forward and reverse by a single frame, rewind (Simple), play/pause, fast forward (Simple), select project time base rate playback (Advanced), select recording rate playback (Advanced), loop the playback (Advanced), and return to the camera menu.
Clip List

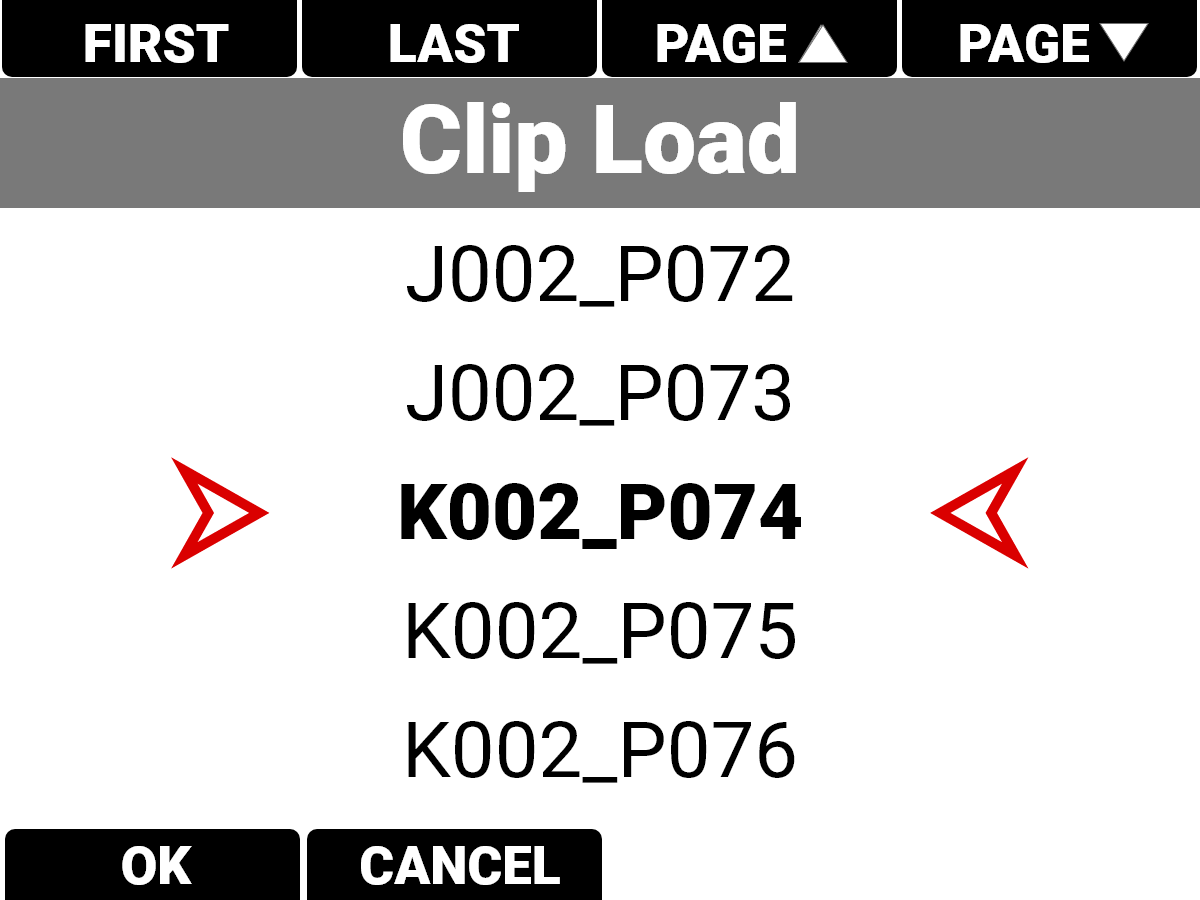

Press the button over the Clip List to open the Clip Load list.
Navigate to the desired clip and press the button under OK to open the clip in the Playback screen.
Playback Mode

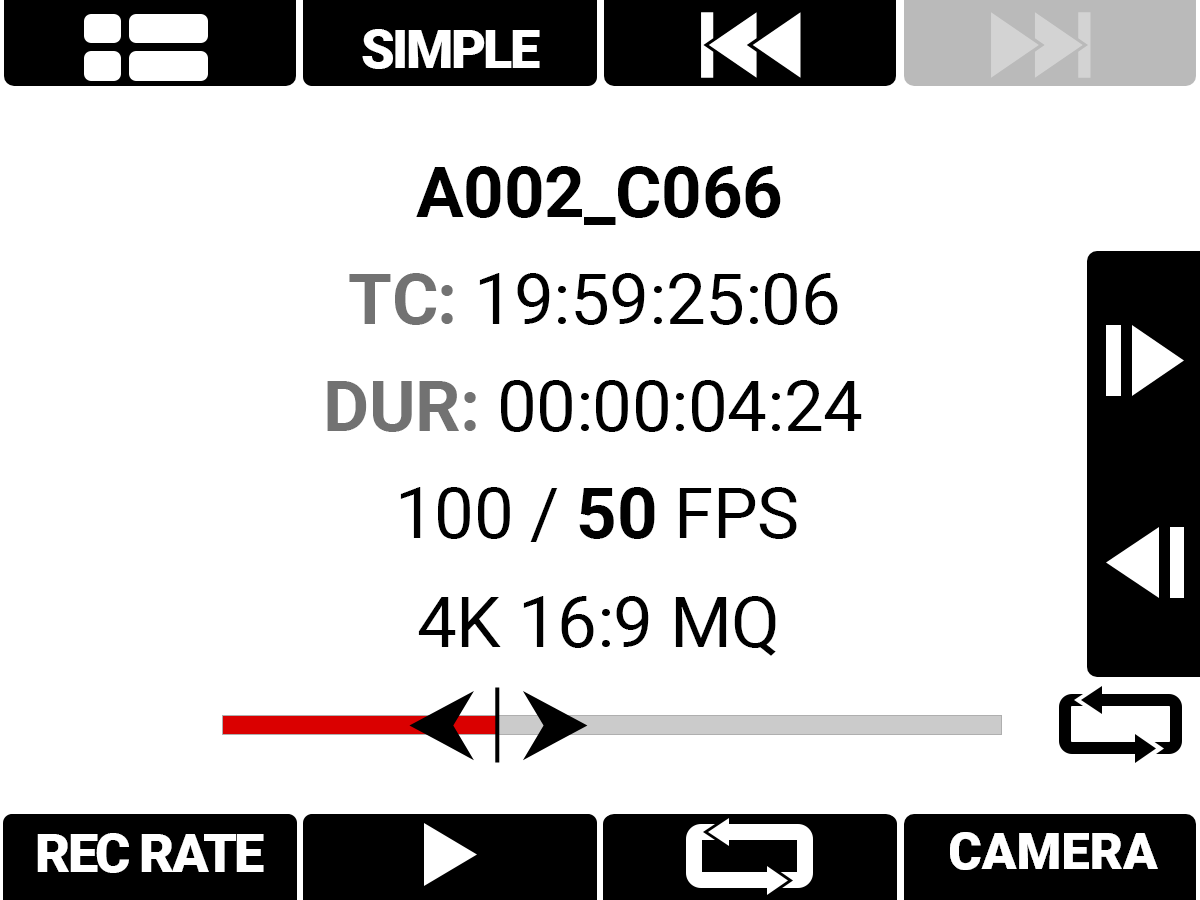

Press the button over ADVANCED to open the Advanced Playback Mode.

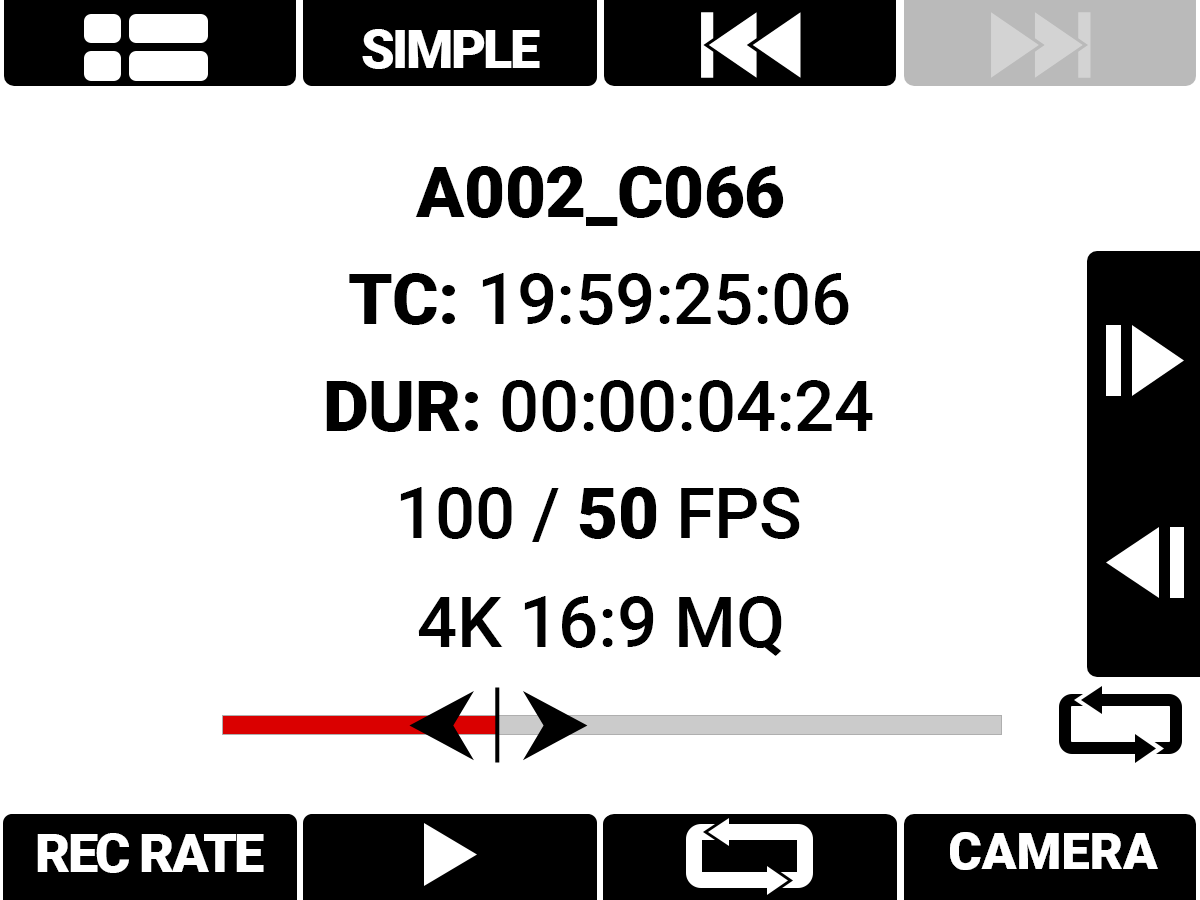

The Advanced mode contains the Playback Rate, play/pause, and Playback Loop buttons.
Press the button over SIMPLE to open the Simple Playback Mode.
The Simple mode contains the Rewind, Play/Pause, and Fast Forward buttons.
Start/End
Press the button above the Start or End button to navigate to the start or end of the clip.
Next Previous
When in Simple Playback mode, press the UP arrow to move forward by a single frame and press the DOWN arrow to reverse by a single frame.
When in Advanced Playback mode, hold the UP arrow to play the clip forward at the selected playback rate, and hold the DOWN arrow to play the clip in reverse at the selected playback rate.
Rewind (Simple)
Press the button below Rewind to quickly navigate backwards through the clip.
Playback Rate (Advanced)

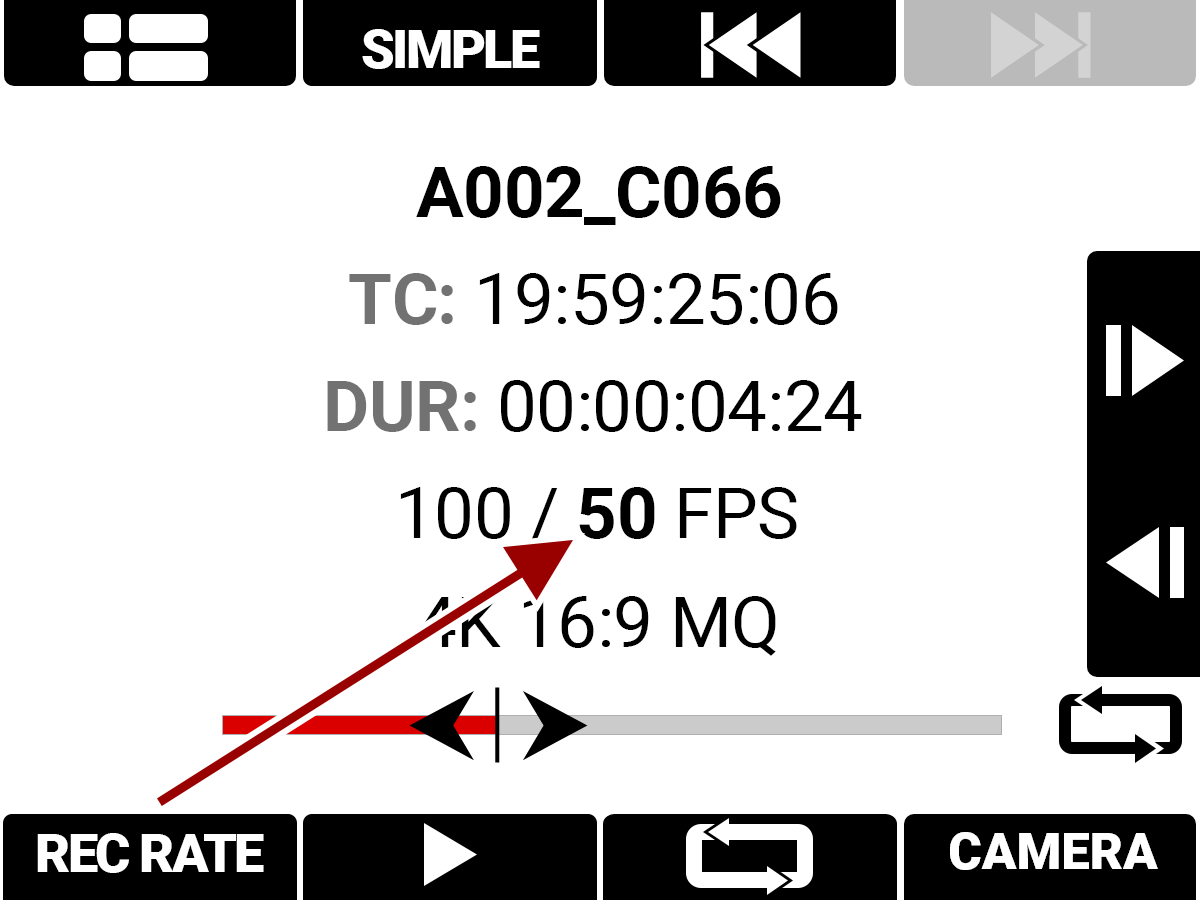

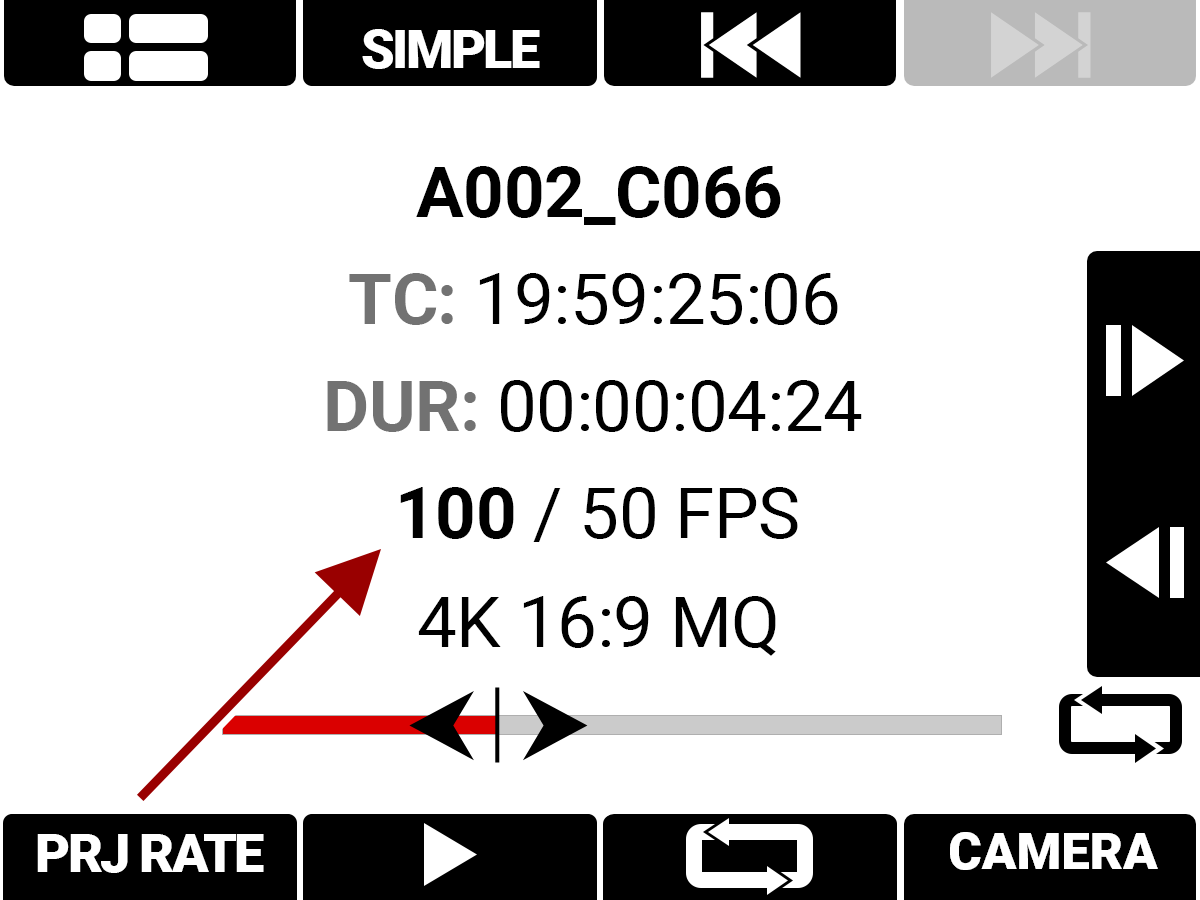

Pressing the button below Playback Rate allows you to toggle between playing the clip using the Project Time Base Rate (PRJ RATE), or using the Recording Frame Rate (REC RATE). The camera displays the current playback rate in bold.
Play/Pause
Press the button below Play/Pause to toggle between playing the clip and pausing the clip.
Loop (Advanced)
Press the button below the LOOP icon to toggle between playing the clip on a loop or playing the clip once. When the camera is playing the clip on a loop, the Loop icon displays at the end of the timeline.
Fast Forward (Simple)
Press the button below Fast Forward to quickly navigate forward through the clip.
Camera
Press the button below CAMERA to return to the camera interface.
