Power

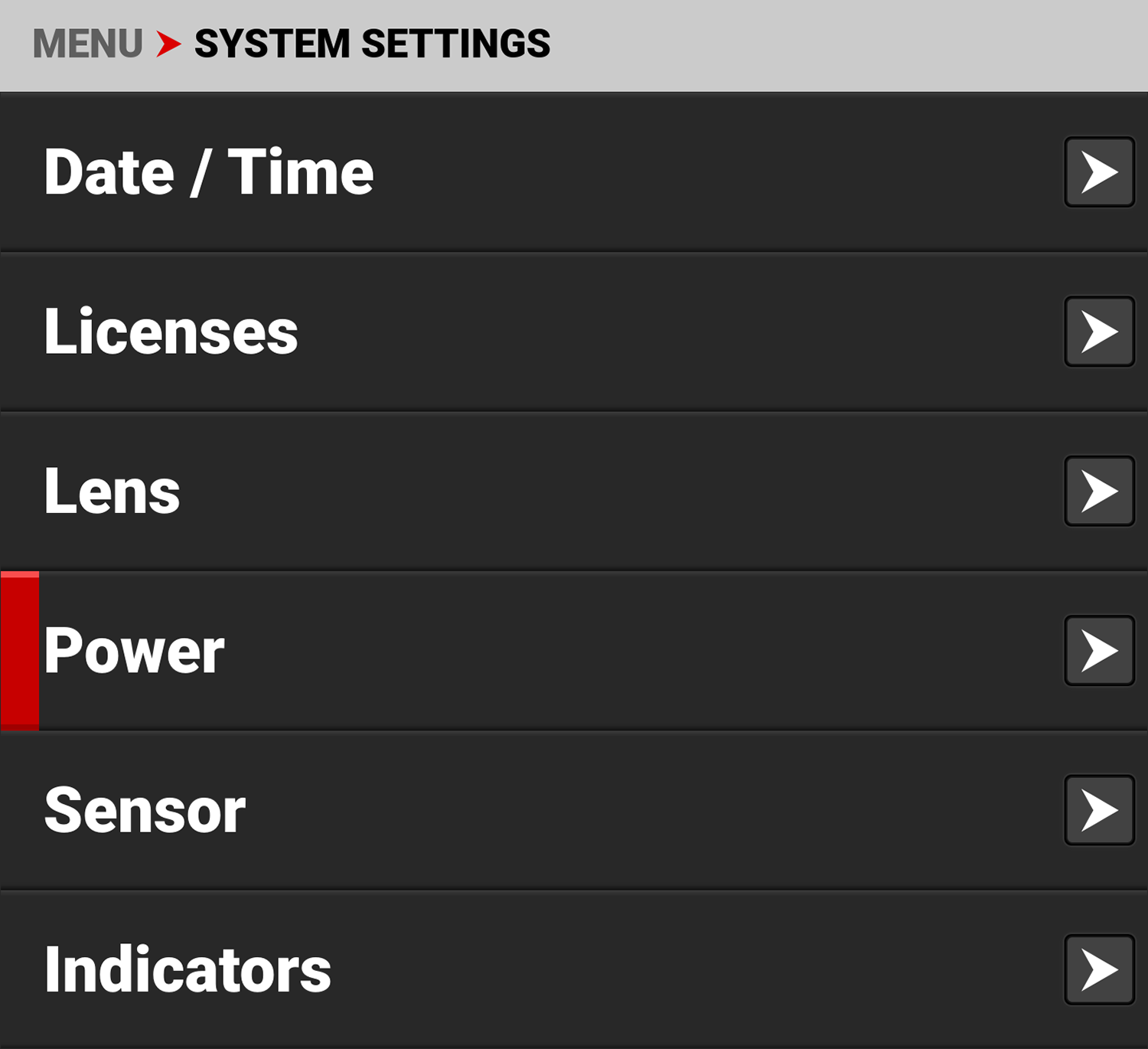

Use the Power menu to view the various camera power status indicators:

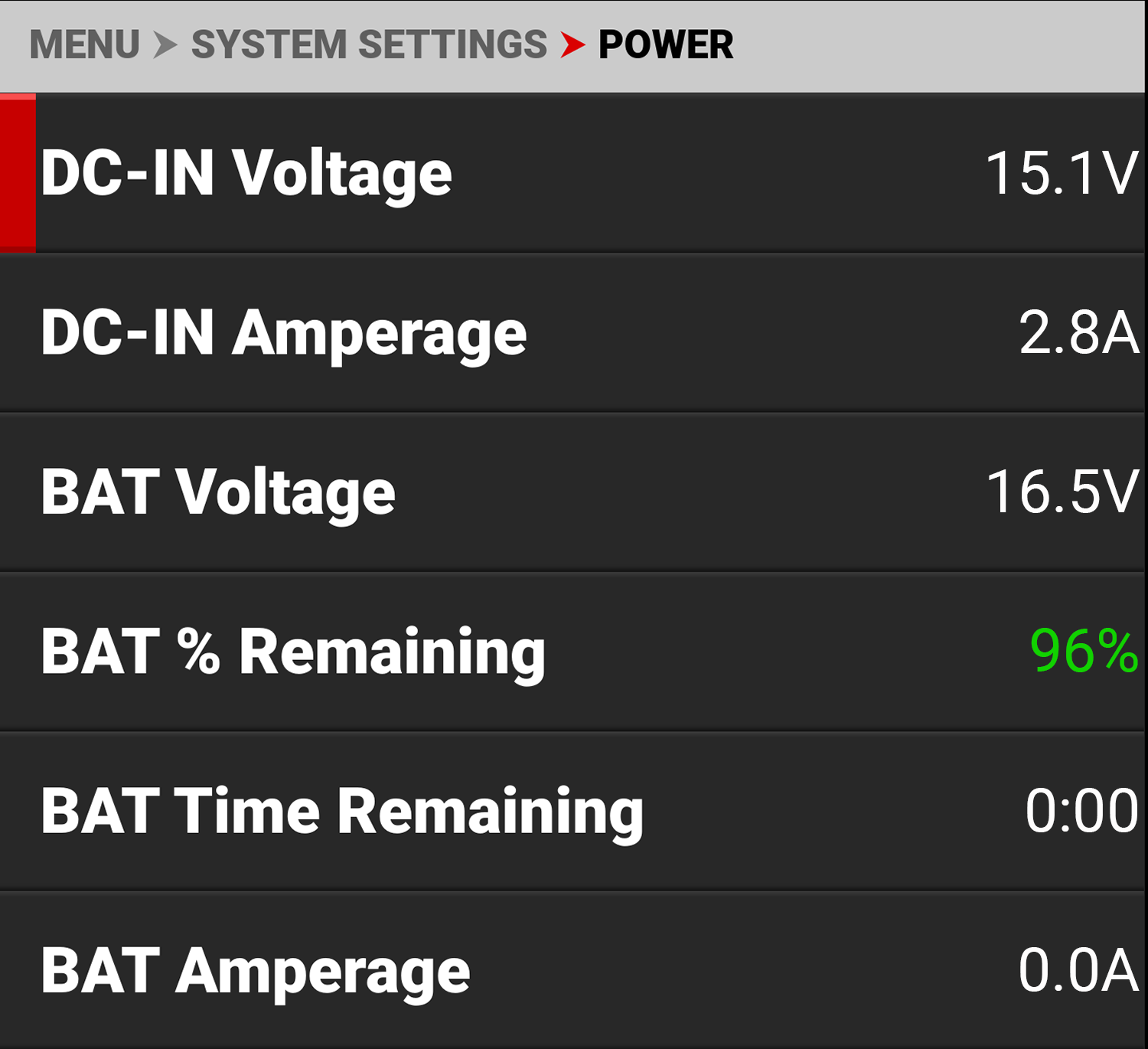

The Power indicators you can view include:
|
Items |
Details |
|---|---|
|
DC-IN Voltage |
When DC is connected, this displays the DC Voltage |
|
DC-IN Amperage |
When DC is connected, this displays the DC Amps |
|
BAT Voltage |
When a battery is connected in the left #1 slot, this displays the battery Voltage |
|
BAT % Remaining |
When a compatible battery is connected in the left #1 slot, this displays the % of battery charge remaining |
|
BAT Time Remaining |
When a battery is connected in the left #1 slot, this displays the camera operating time remaining |
|
BAT Amperage |
When a battery is connected in the left #1 slot, this displays the battery Amps |
|

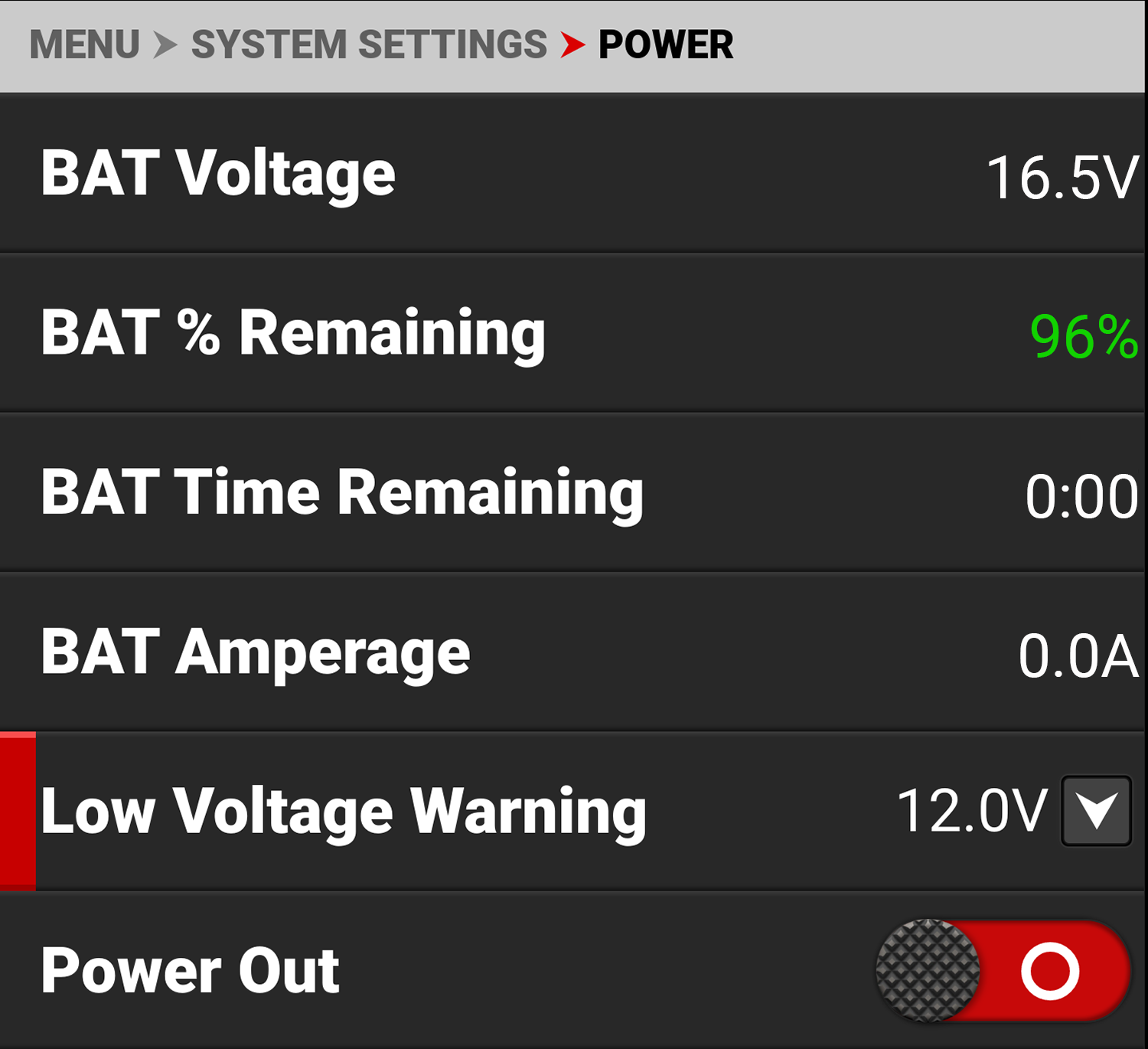

Set the low voltage warning threshold |
|
|
Power Out |
Enables or disables the 5 V / 500 mA power out of the Extension Port |

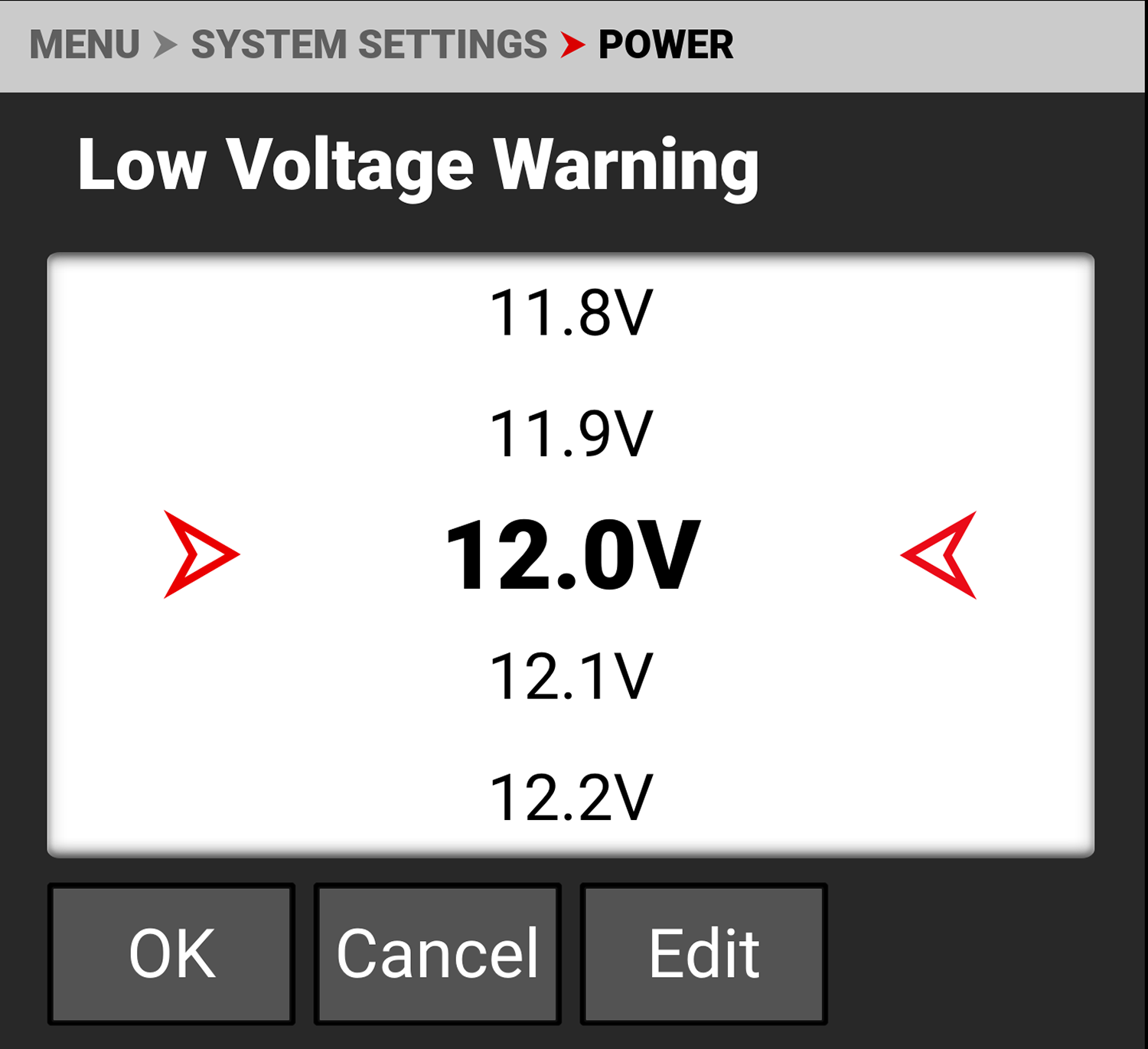

Low Voltage Warning
Use Low Voltage Warning to set the desired voltage level to trigger the low voltage warning. The warning displays on the LCD and across Overlay Modes that contain power status (refer to the Status Bar section for more information about the status icons).
