Home Page

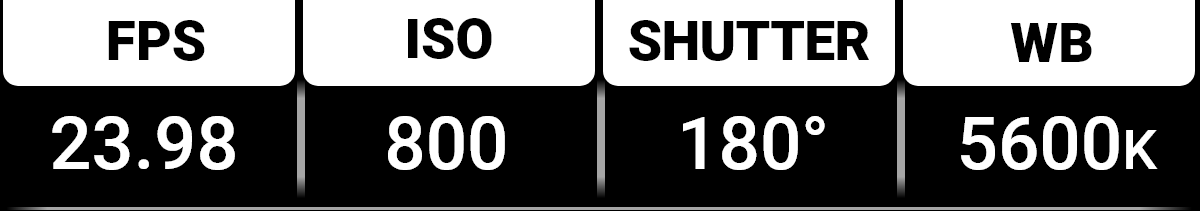

Recording Quick Settings

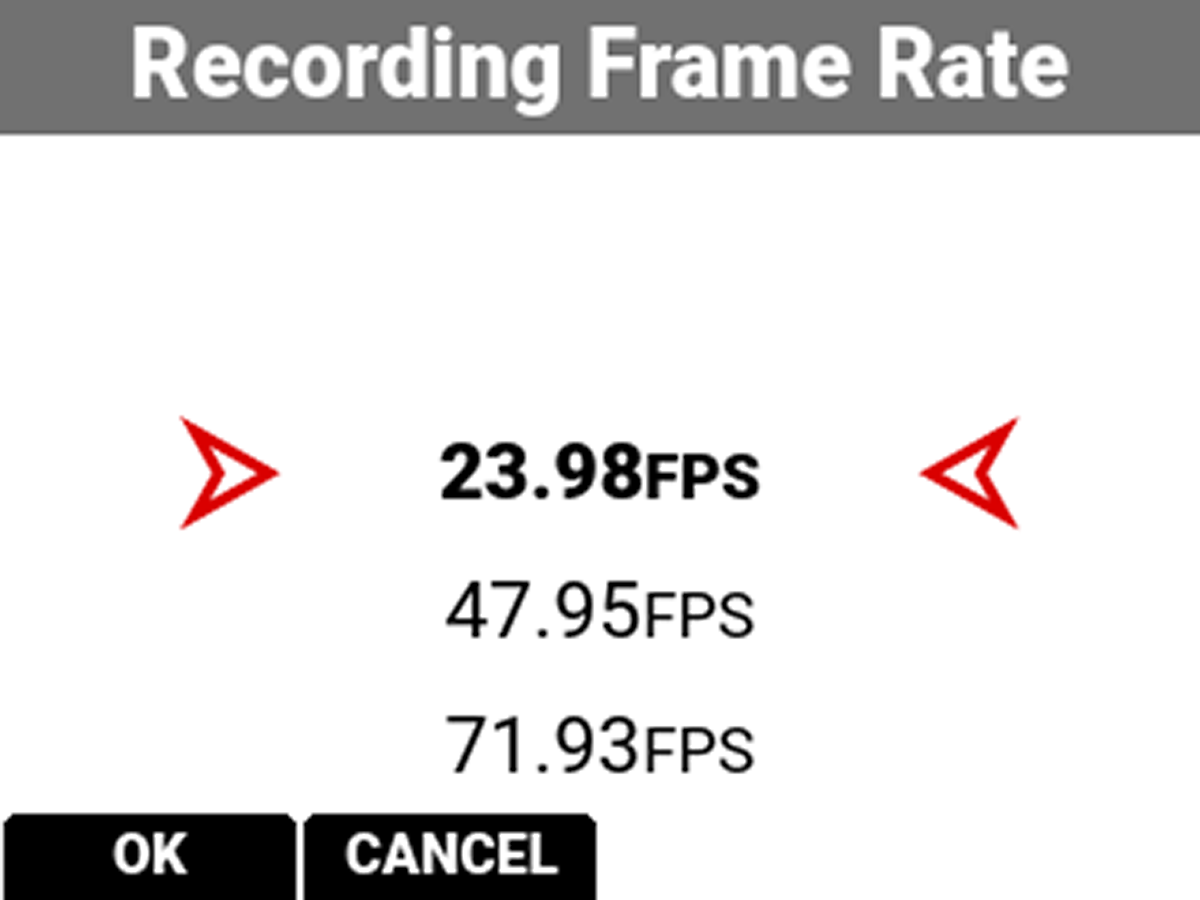

The Recording Quick Settings section of the LCD home page displays the Recording Quick Settings buttons. You can use these buttons to quickly access the most often used camera recording menu settings. These settings include Recording Frame Rate, ISO, Shutter, and White Balance.





Press the top buttons to open the menu item lists. Press Up and Down to navigate the list. Press the button under OK or SEL to select the item and return to the Home Page. Press the button under CANCEL or press MENU to return to the Home Page without making any changes.

Press and hold the button above Shutter to toggle the shutter between degrees and fractions (refer to Shutter for more information).

Press and hold White Balance (WB) to toggle between Color Temperature and Color Temperature Presets (refer to White Balance for more information).

Exposure

The Exposure section of the LCD home page displays the RGB exposure levels for the camera.

Exposure Meter		Overexposed Example		Underexposed Example		Balanced Example

RGB Exposure Meter displays the quantity of over or under exposed pixels in each of the separate red, green, and blue channels.

The top and bottom RGB lights illuminate when a small amount of pixels on the sensor are overexposed or underexposed. This indicates that a small number of pixels in the image are too bright and will not contain any detail, or are too dark and will appear as noise.

The bars show the quantity of overexposed and underexposed RGB pixels on the sensor. Adjust the settings in the camera such as Iris, or shutter speed to compensate, or change the scene's lighting for the best balanced image.

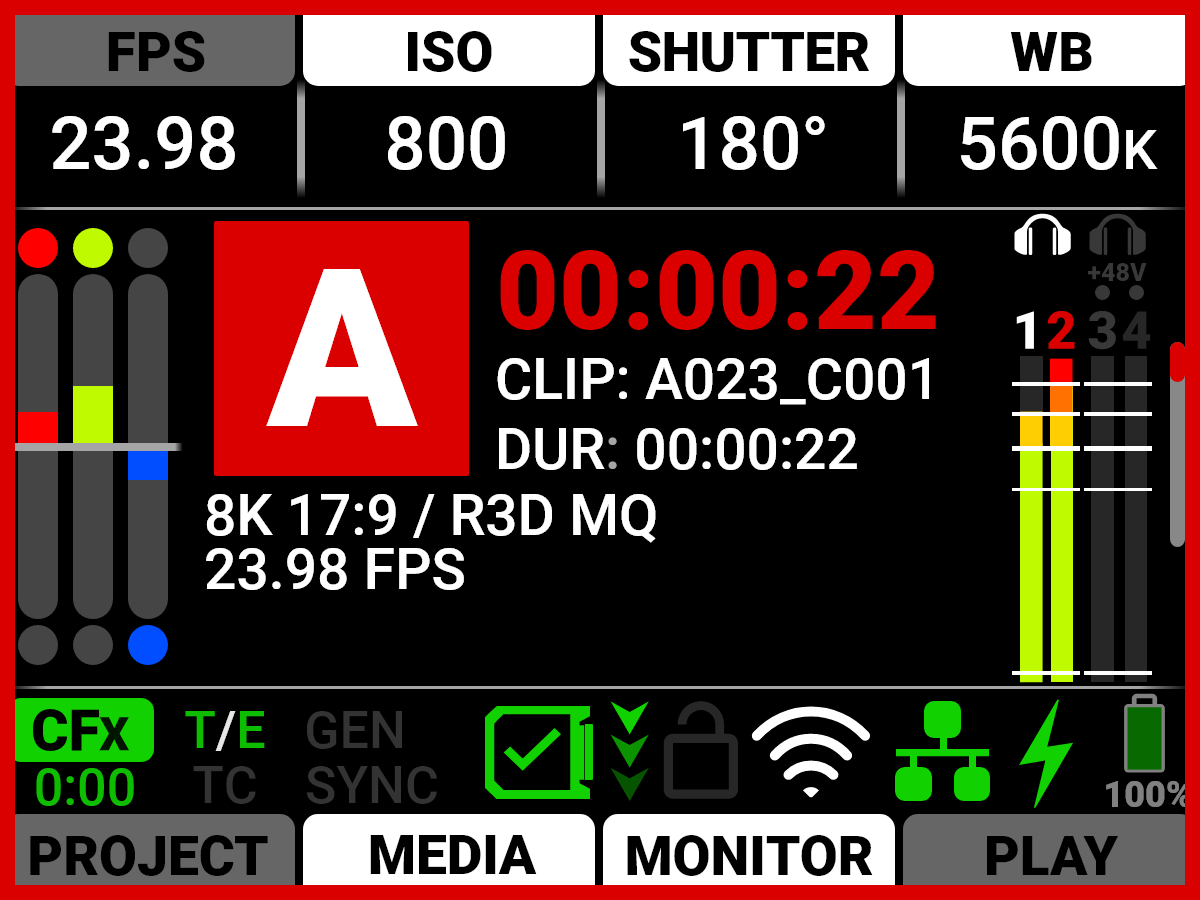

Camera Designation and REC Indicator

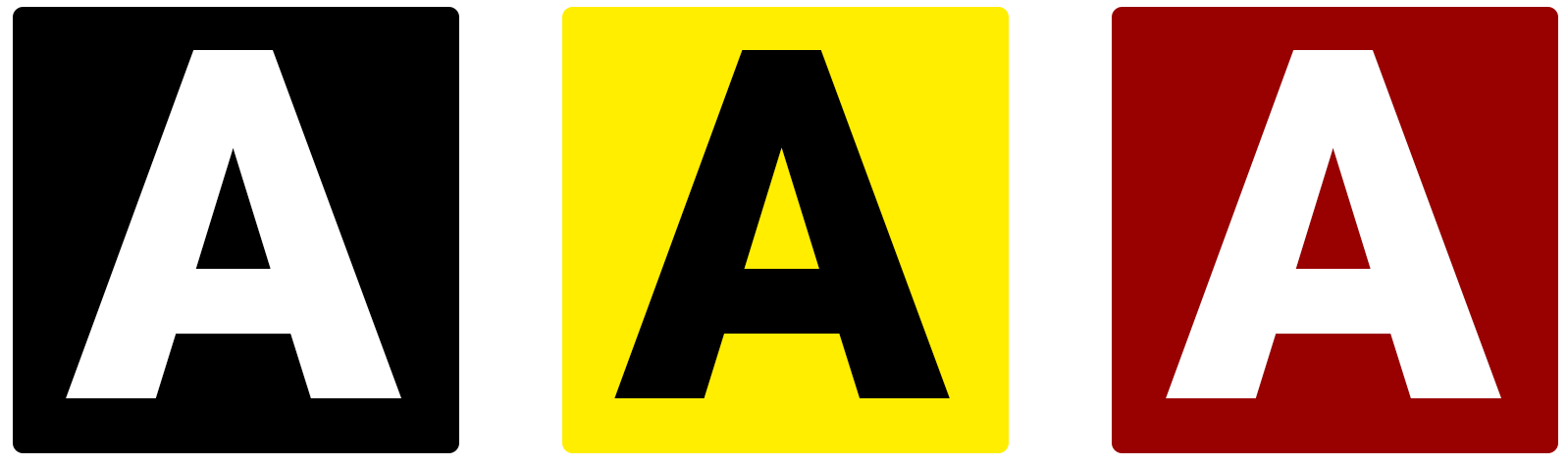

The Camera Designation and Record indicator on the LCD home page displays the camera letter assigned to the camera (refer to Slate and Camera ID). The color of this area indicates when the camera recording is ready (black), when the camera is pre-recording (yellow), and when the camera is recording (red).

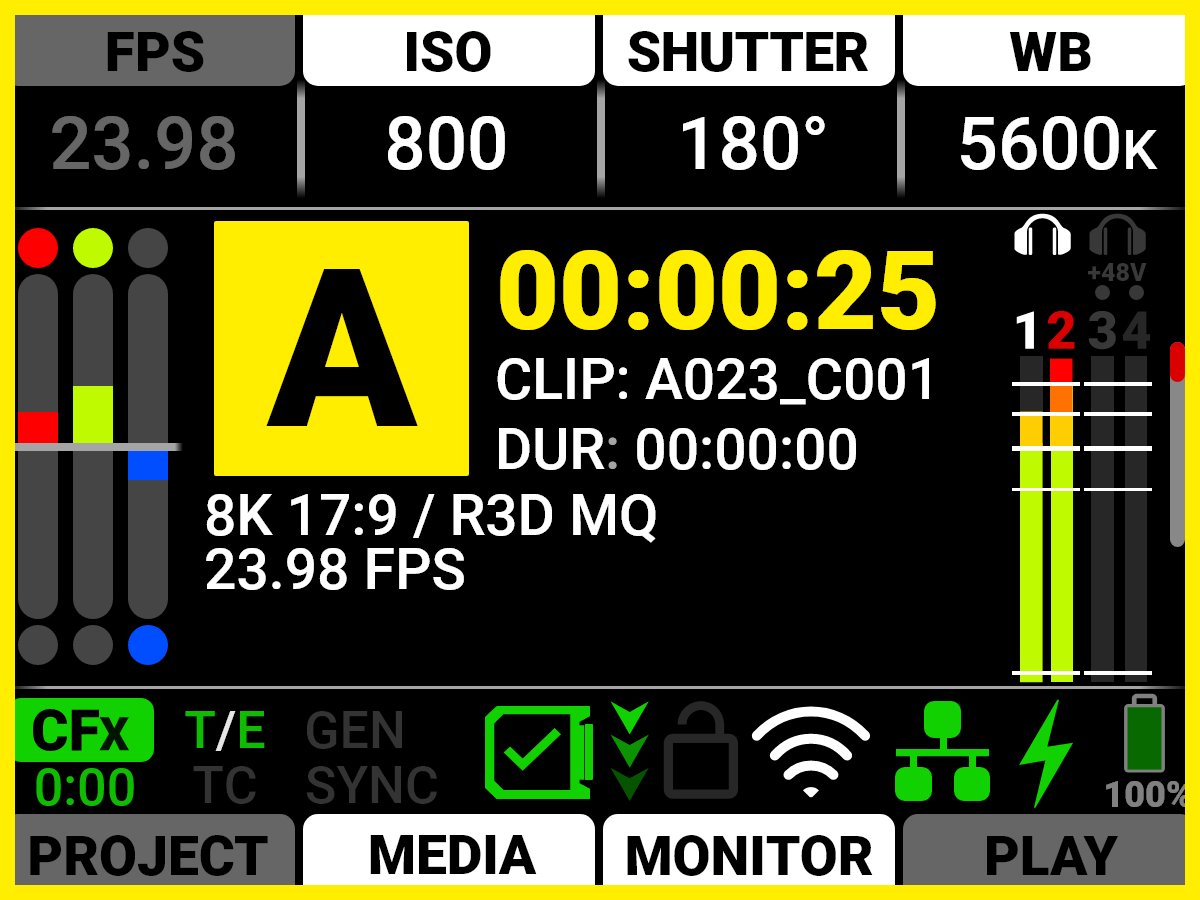

Pre-recording:		Recording:

Timecode / Edgecode

The Timecode / Edgecode section displays the timecode or edgecode (refer to Timecode Display Mode).

Timecode:		Edgecode:

This text turns red when the camera is recording.

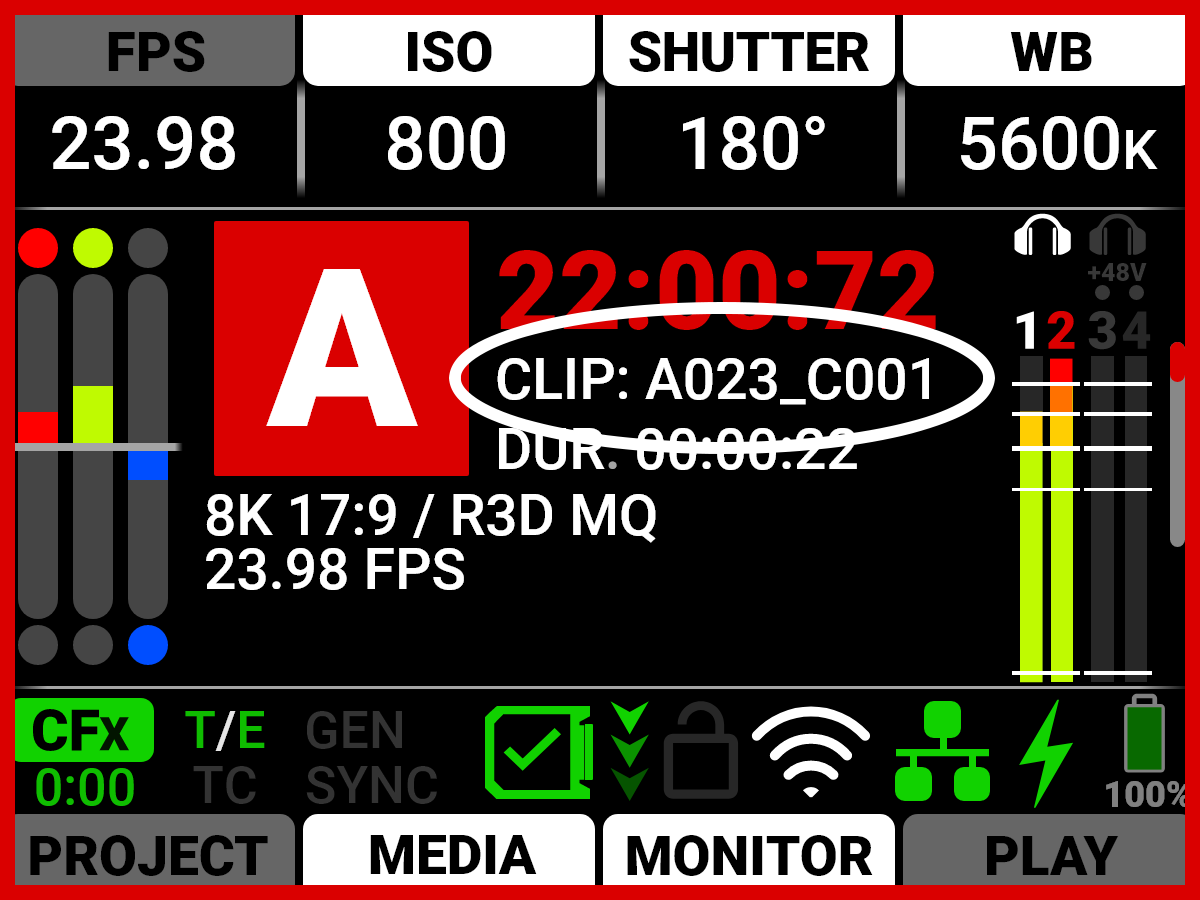

Clip

The Clip area displays the clip name designated in the Project Settings menu (refer to Slate).

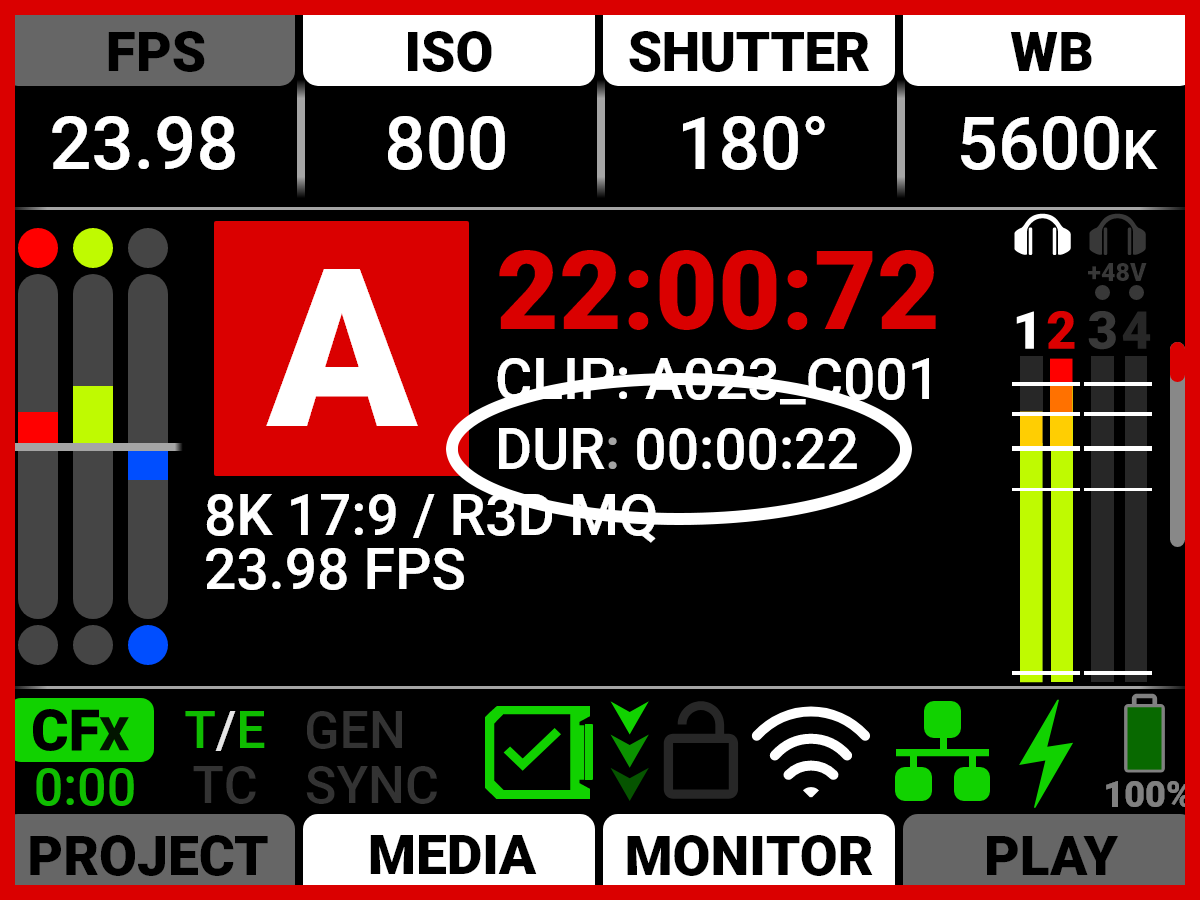

Duration

The Duration area displays the real-time duration of the current clip.

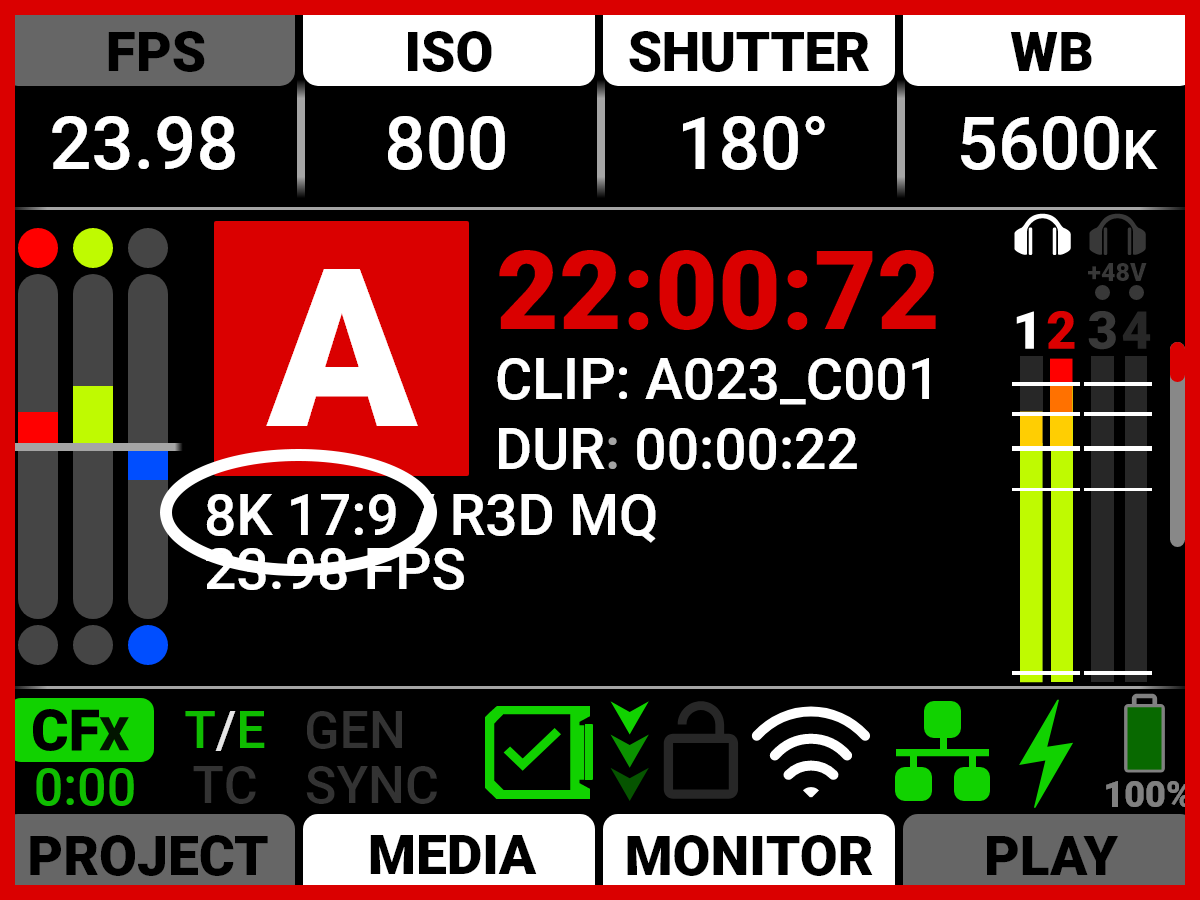

Sensor Format

The Sensor Format area displays the sensor format selected in the Project Settings (refer to Format).

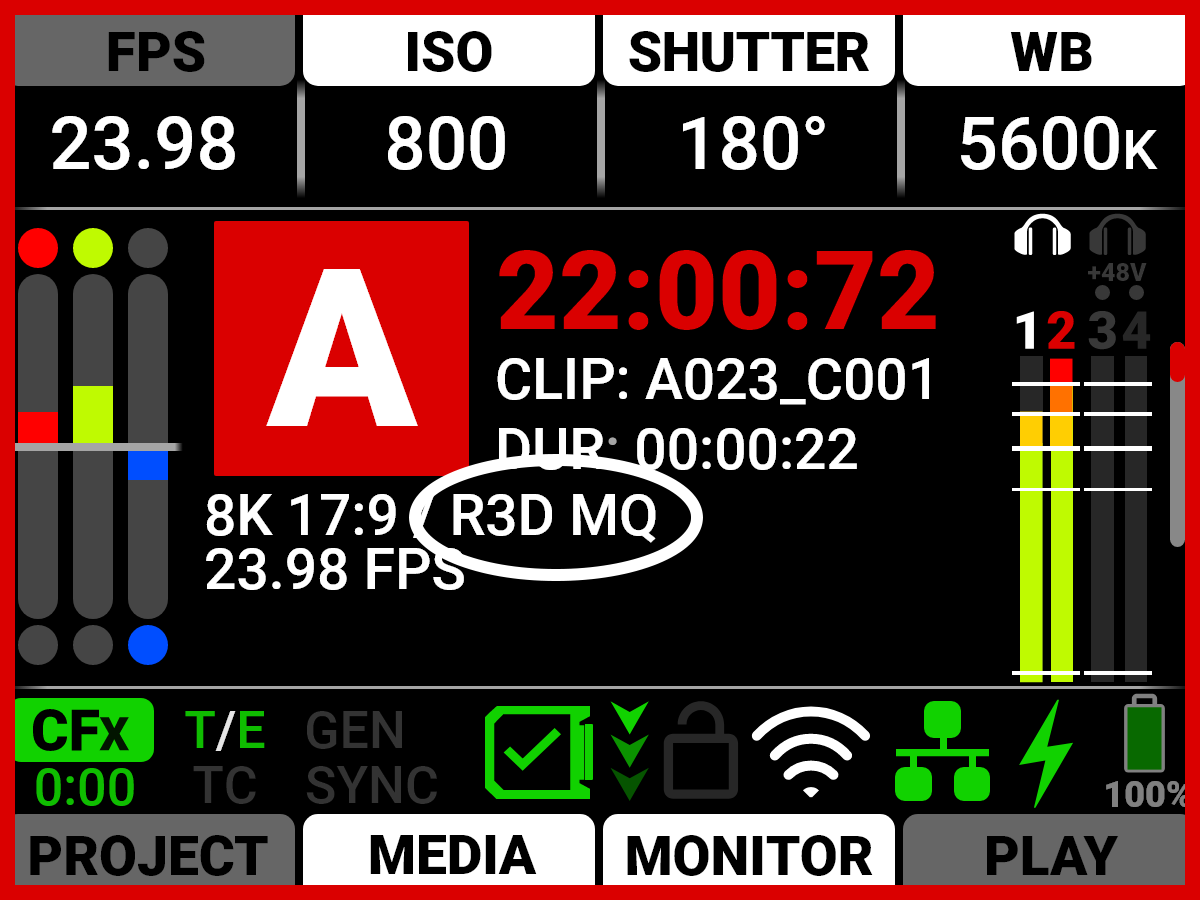

Quality

The Quality area displays the R3D compression level (refer to R3D Quality).

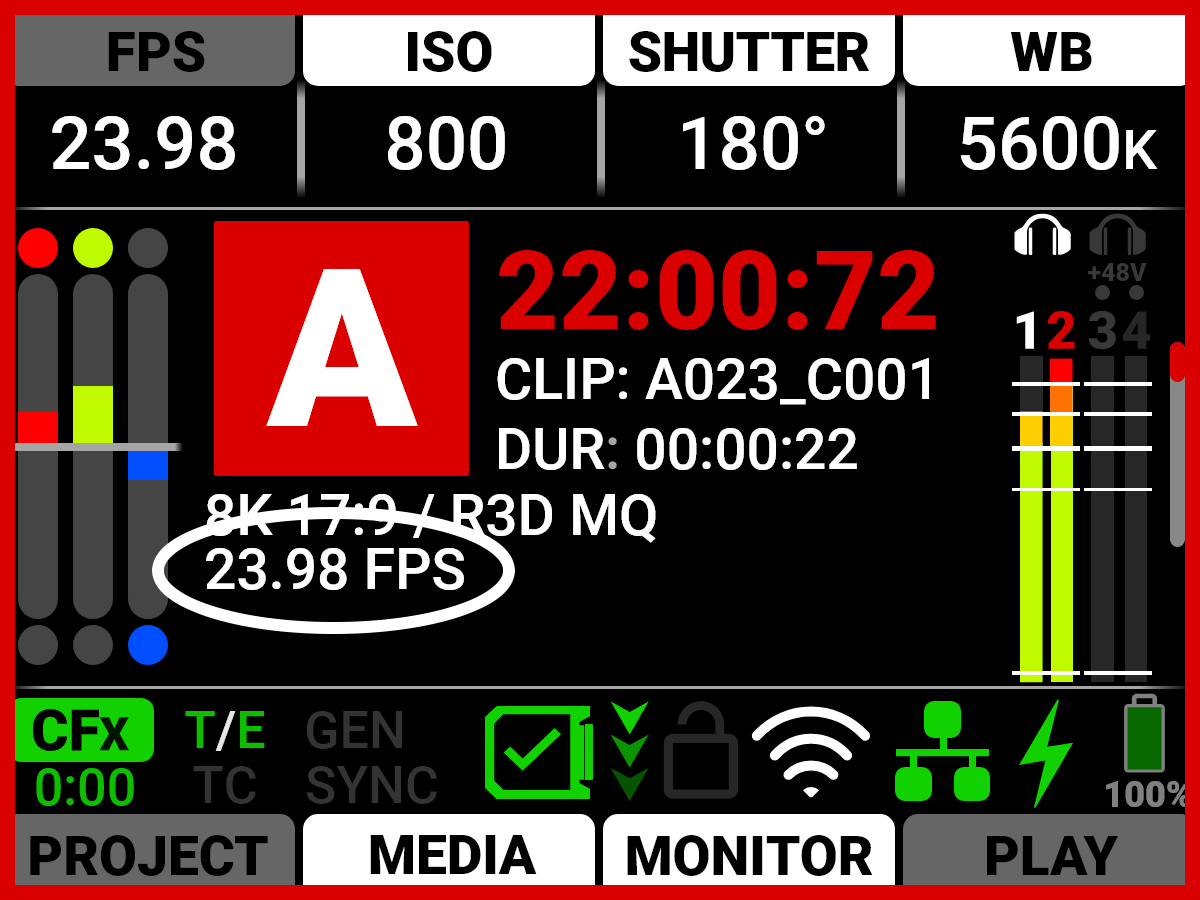

Project Time Base

The Project Time Base area displays the playback rate for the recorded footage selected in the Project Settings (refer to Project Time Base).

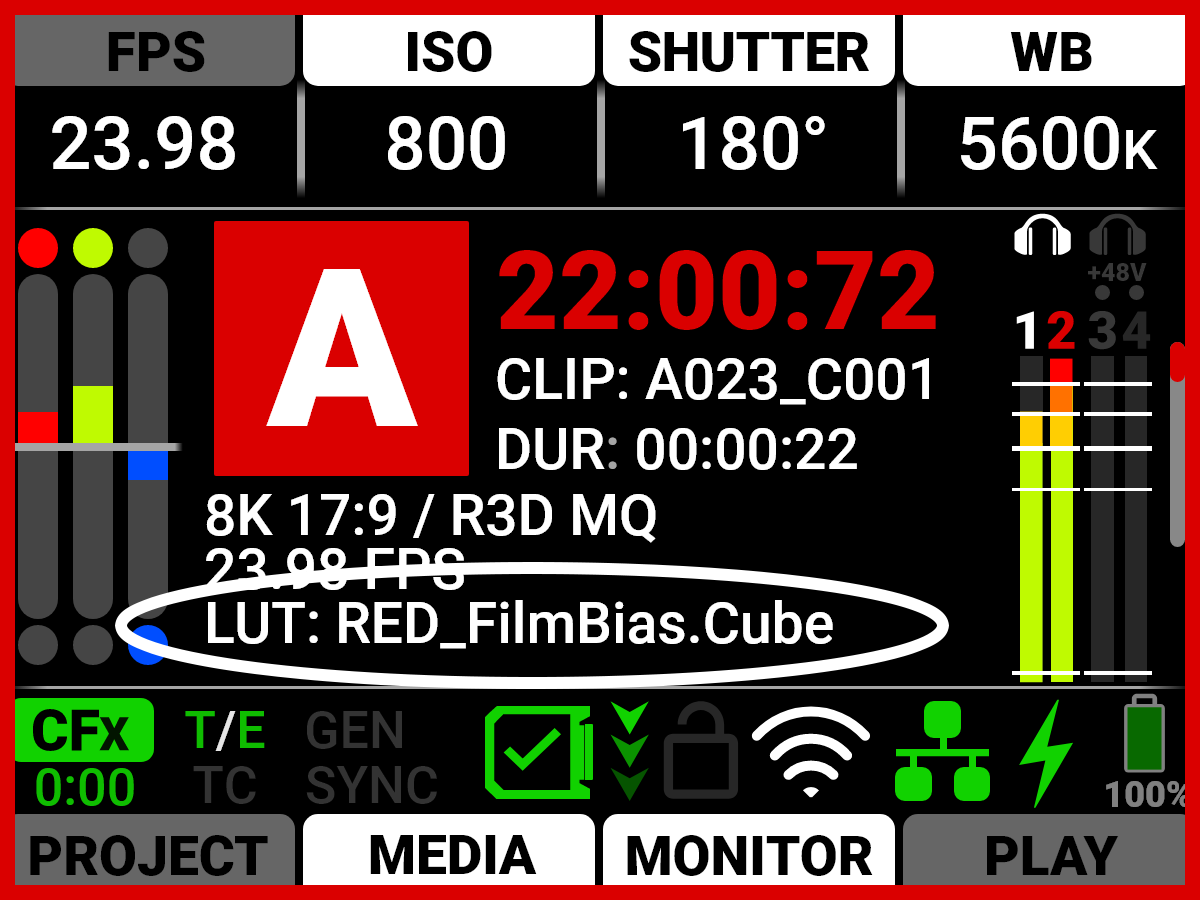

3D LUT

The 3D LUT area displays the LUT file selected in the Image / LUT menu (refer to 3D LUT).

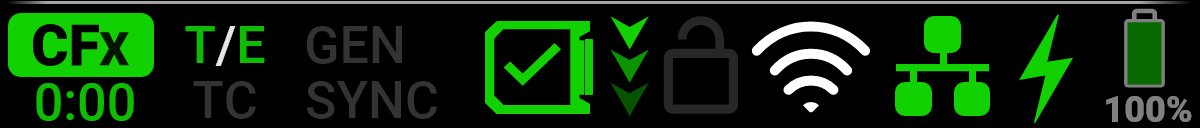

Status Bar

The Status Bar contains status icons for various camera settings and inputs.

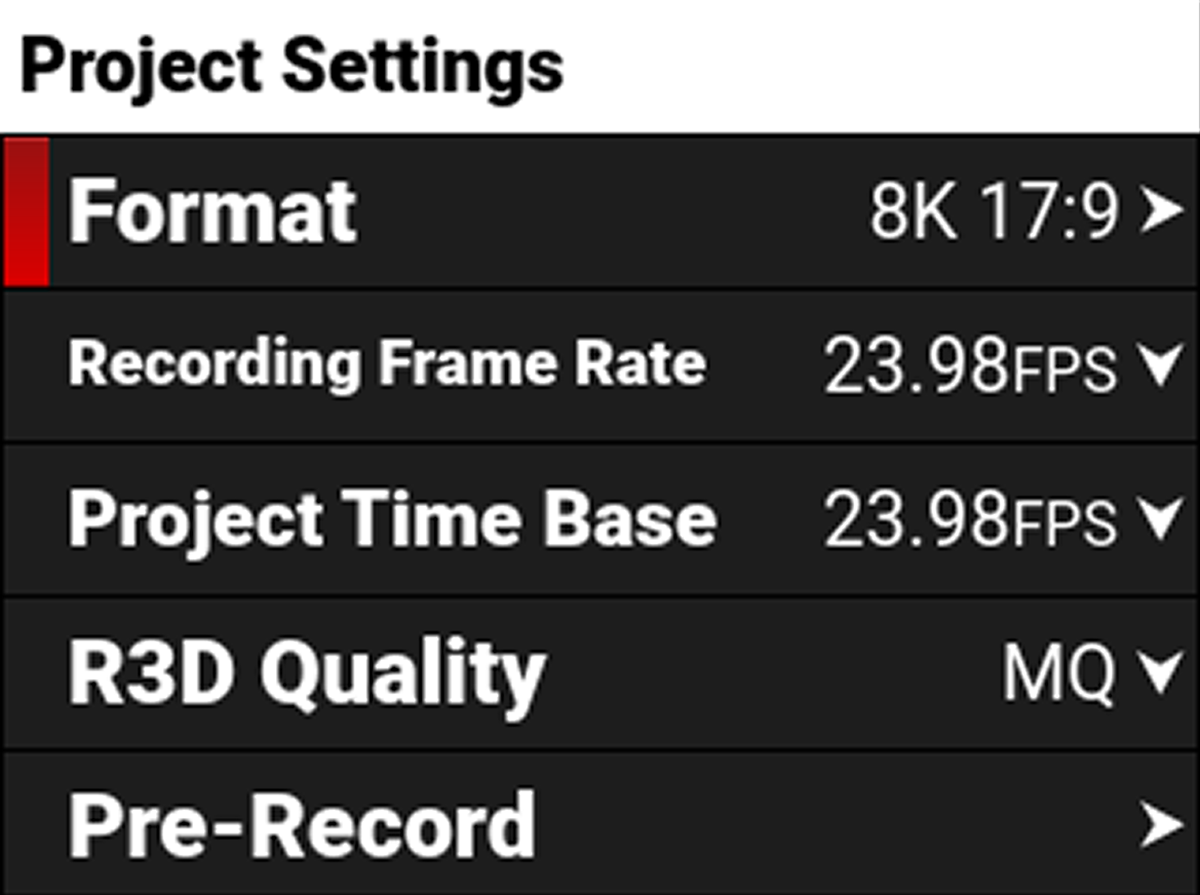

Quick Menus

The Quick Menus section of the LCD home page displays the Quick Menu buttons. You can use these buttons to quickly access the most often used camera menus. These settings include Project Settings Menu, Media Menu, Monitoring Menu, and Playback.





Press the bottom buttons to open the Quick Menus. Press Up, Down, and SEL to navigate the menus. Press Menu to return to the Home screen.
